Description
xXantrex Freedom XC PRO Marine 2000: Elite Marine Inverter/Charger (818-2015)
The Xantrex Freedom XC PRO Marine 2000 (Part #818-2015) is a specialized 12V DC to 120V AC power system built to withstand the rigorous demands of saltwater environments. This model integrates a 2000-Watt pure sine wave inverter with a high-capacity 100-Amp multi-stage charger. Featuring native NMEA 2000 and RV-C communications, it allows for total system transparency on your vessel's Multi-Function Display (MFD). With conformal-coated internal components, the 818-2015 is designed for maximum corrosion resistance and longevity at sea.
Verified Marine Technical Documentation
Download Freedom XC PRO Marine 2000 Datasheet (PDF)Advanced Marine System Integration
- NMEA 2000 Certified: Industry-standard plug-and-play communication for integration with Garmin, Raymarine, Simrad, and Lowrance electronics.
- Corrosion-Resistant Hardware: Internal boards are conformal coated and hardware is treated for high-humidity, high-salt marine air.
- 100A Smart Charging: High-output charging reduces generator runtime; features a dedicated Lithium (LiFePO4) profile for modern battery banks.
- Full Power Output: Delivers continuous 2000W output and 100A charging in extreme temperatures ranging from -4°F to 104°F.
- Massive 4000W Surge: Provides 2 seconds of peak power to start heavy loads like refrigeration, water makers, and coffee makers.
- 30A Transfer Switch: Integrated high-speed relay for seamless transition from shore power to inverter power.

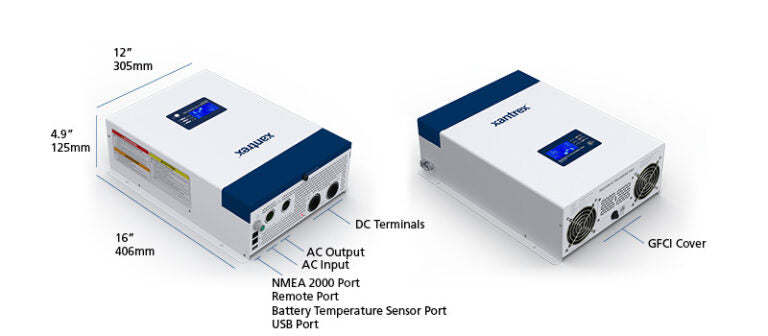

Verified Physical Specifications (818-2015)
| Height | 4.9” (125 mm) |
| Width | 10.8” (275 mm) |
| Depth (Length) | 15.4” (390 mm) |
| Net Product Weight | 17.1 lbs (7.76 kg) |
Electrical Performance Data
| Continuous Output Power | 2000 Watts @ 40°C |
| Surge Power (2 Seconds) | 4000 Watts |
| Max DC Charge Current | 100 Amps DC |
| Inverter Efficiency (Peak) | 91% |
| Certifications | UL458 with Marine Supplement, ABYC Standards, FCC Class B |
Technical Citations & Compliance
Model Reference: Freedom XC PRO Marine 2000 (818-2015)
Verification: Net product weight (16.3 lbs) and chassis dimensions are verified against the official Xantrex Freedom XC PRO Marine Series datasheet.
