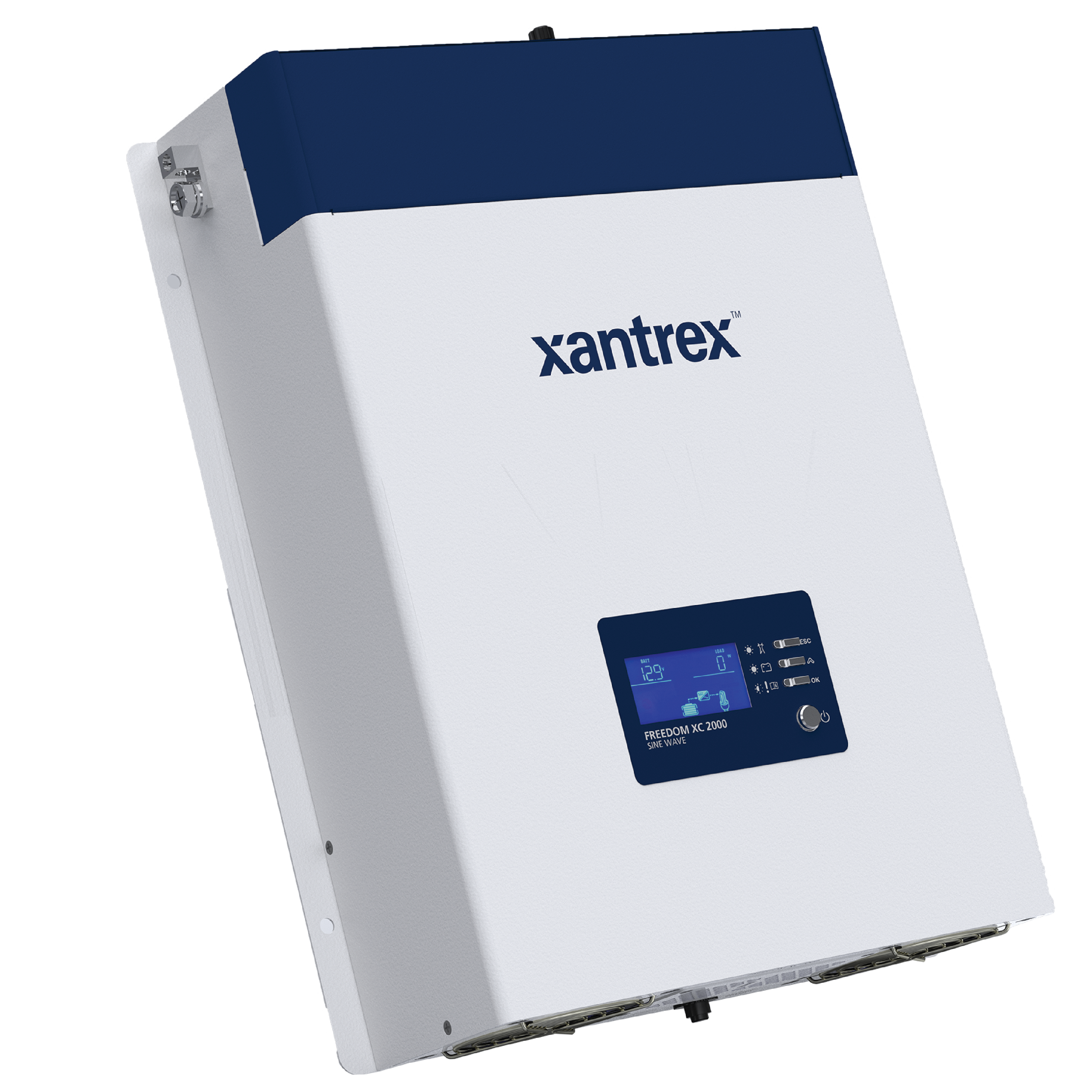

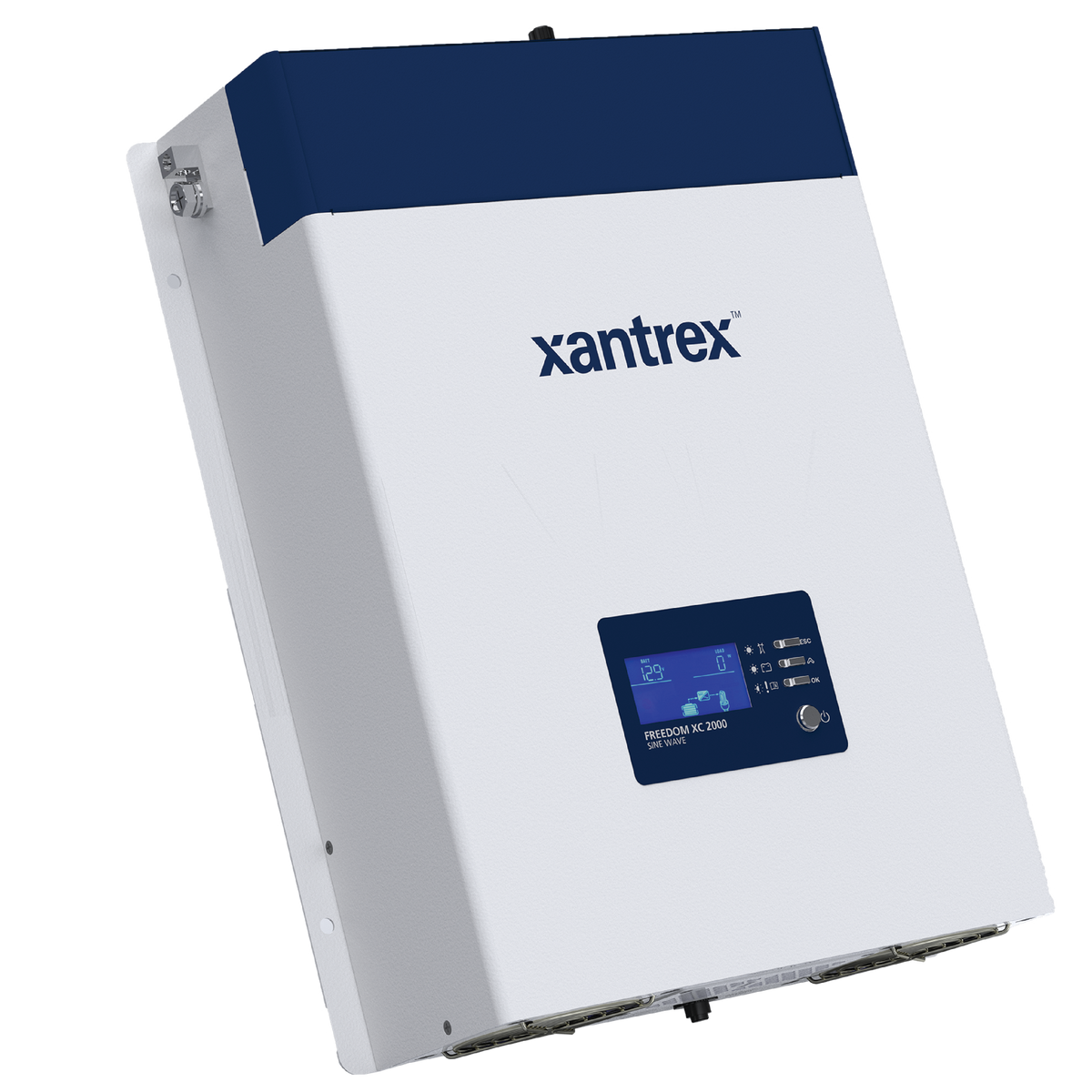

xXantrex Freedom XC 2000: High-Power 2000W Inverter / 80A Charger
The Xantrex Freedom XC 2000 (Part #817-2080) is a powerful all-in-one solution combining a 2000-Watt true sine wave inverter with a high-output 80-Amp multi-stage battery charger. This unit is specifically engineered for the high-demand electrical systems found in modern RVs, boats, and heavy-duty trucks. With a 4000W surge capacity and an integrated 30A Transfer Switch, the Freedom XC 2000 provides seamless transition between battery and shore power while maintaining a dedicated Lithium-Ion (LFP) charging profile.
Verified Technical Documentation
Download Xantrex Freedom XC 2000 Datasheet (PDF)Advanced System Features
- Lithium-Ion Support: Optimized charging algorithms for LiFePO4 batteries, ensuring maximum cycle life and safety.
- High-Torque Startup: Delivers 4000W of peak surge for 2 seconds to easily start high-draw appliances like microwaves and coffee makers.
- 80A Smart Charger: A high-current multi-stage charger that charges batteries faster while providing temperature compensation.
- Extended Temperature Operation: Maintains full 2000W output in extreme environments from -4°F to 104°F (-20°C to 40°C).
- Dead Battery Charging: Capable of initiating a charge even on batteries that have been depleted to 0.0 Vdc.
- Programmable Display: Built-in digital interface shows AC wattage, DC voltage, and charging status at a glance.
Verified Physical Specifications (817-2080)
| Height | 4” (102 mm) |
| Width (Including Flanges) | 12.0” (305 mm) |
| Depth (Length) | 16” (406 mm) |
| Net Product Weight | 16.3 lbs (7.4 kg) |
Electrical Specifications
| Continuous Output Power | 2000 Watts @ 40°C |
| Surge Rating (2 Seconds) | 4000 Watts |
| Max Charge Current | 80 Amps DC |
| AC Transfer Relay | 30 Amps |
| Output Waveform | True Sine Wave (TSW) |
Technical Citations & Compliance
Model Reference: Freedom XC 2000 (817-2080)
Compliance: ETL listed to CSA 107.1, UL458 and UL458 Marine Supplement.
Data Integrity: All weight and dimensional data are sourced directly from the official Xantrex Freedom XC Series Technical Documentation.
