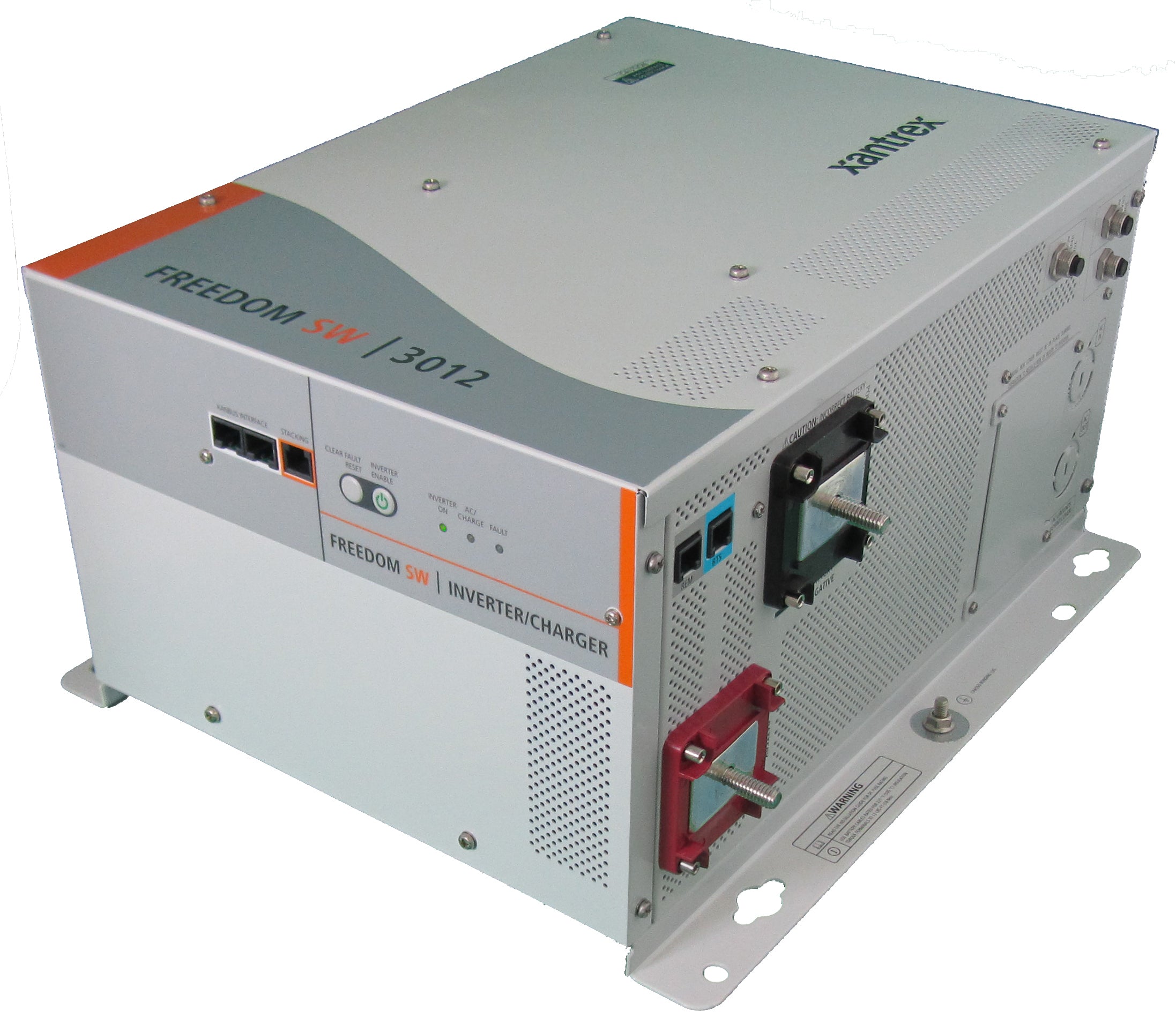

Xantrex Freedom SW 3012: Heavy-Duty 3000W Pure Sine Inverter / 150A Charger

The Xantrex Freedom SW 3012 (Part #815-3012) is the most powerful 12V inverter charger in the Freedom SW series. Engineered for large-scale mobile and marine power systems, it provides 3000 Watts of continuous, utility-grade pure sine wave power. It features a massive 150-Amp multi-stage battery charger, making it one of the fastest charging solutions on the market for large battery banks. Built with a heavy-duty transformer, the 815-3012 can handle a 6000W surge for up to 5 seconds, easily starting high-load appliances like air conditioners and pumps.

Flagship Performance & System Scalability

• Advanced Stacking Capabilities: Increase your power by stacking two units in parallel for double the amperage, or in series to create a 120/240V split-phase system.
• Generator Support Mode: Automatically supplements a generator when AC loads exceed the generator’s capacity, allowing smaller generators to handle large peak loads.
• Ultra-Fast 150A Charger: Dramatically reduces charging time for large AGM, Gel, and flooded battery banks.
• Commercial Grade Surge: Delivers 6000W (200% of rated power) for 5 seconds to provide the high-torque startup needed for compressors and motors.
• Dead Battery Charging: Capable of charging battery banks that have been discharged down to 0 Vdc.
• Xanbus Network Communication: Seamlessly integrates with Xantrex AGS, System Control Panels (SCP), and battery monitors for a fully automated power system.

Verified Physical Specifications (815-3012)

Electrical & Inverter Specifications

Technical Compliance & Warranty

Model Reference: Freedom SW 3012 (815-3012)
Certifications: ETL listed to CSA 107.1, UL458 and UL458 Marine Supplement (requires drip shield PN: 808-9004), ABYC E-11, A-31.
Verification: Net product weight (71.6 lbs) and dimensions verified against official Xantrex Freedom SW Series technical documentation.
