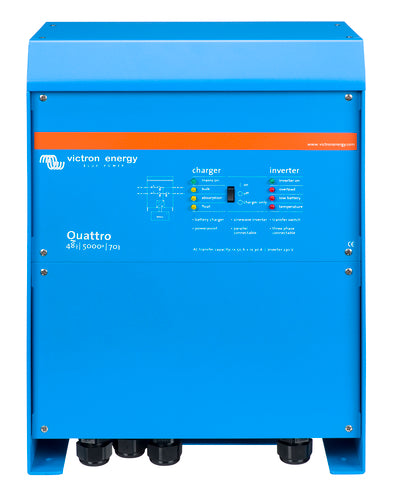

Victron Energy Quattro 48/5000/70-100/100 Inverter/Charger - 120V Dual AC Input

The Victron Energy Quattro 48/5000/70-100/100 is much more than just an inverter/charger; it is the ultimate sophisticated power management system for 48V applications. Featuring two independent AC inputs, the Quattro can automatically connect to the shore/grid and a generator, or two different generators, prioritizing the most stable power source available.

Equipped with Victron's legendary PowerAssist technology, the Quattro prevents the overloading of a limited AC source by using the battery bank to "boost" the power when peak demand exceeds the shore or generator capacity. When the load drops, the unit automatically uses the surplus to recharge your batteries.

Professional-Grade Power Management:

• Two AC Inputs: Unique ability to connect to two independent AC sources with an integrated high-speed transfer switch.
• PowerAssist Technology: Boosts your grid or generator capacity with battery power during peak loads, allowing you to run larger loads on smaller generators.
• True Sine Wave Power: 5000VA of clean 120V AC power, perfect for sensitive electronics, medical equipment, and high-end appliances.
• Parallel and 3-Phase Capability: Scale your system by paralleling up to 6 units or configuring for 3-phase power.
• Uninterrupted AC Power (UPS): In the event of a grid failure, the Quattro takes over the load in less than 20 milliseconds, preventing computer or equipment crashes.
• Dual AC Outputs: The main output has a no-break functionality, while a second auxiliary output runs only when AC is available on one of the inputs (ideal for heavy loads like water heaters).

Technical Specifications:

Technical Tip: For advanced remote monitoring and control, pair this unit with a Victron Cerbo GX. This allows for real-time data tracking via the VRM (Victron Remote Management) portal from any smartphone or computer.
