Description
xVictron Energy MultiPlus-II 48/3000/35-50 120V UL (PMP482305102)

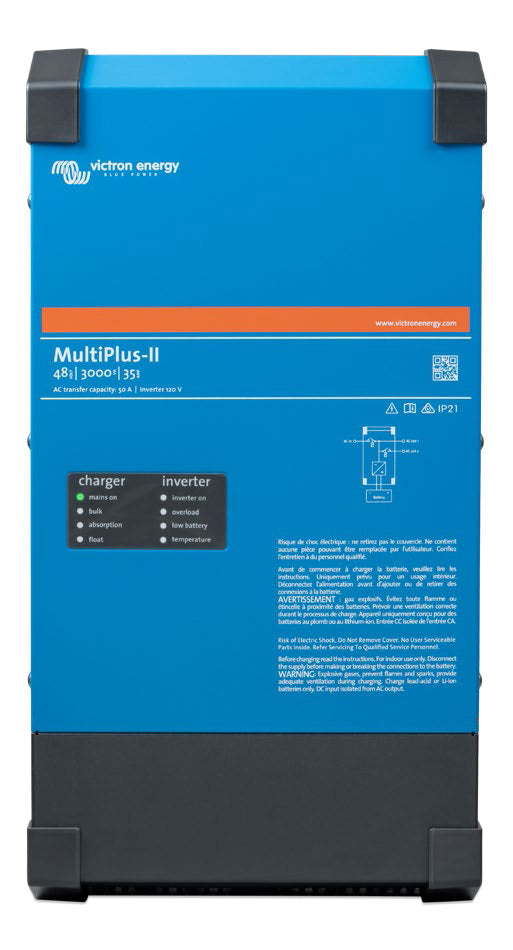

The Victron MultiPlus-II 48/3000/35-50 120V UL is a professional-grade 48V inverter/charger specifically engineered for North American energy storage systems (ESS), off-grid solar, and high-efficiency backup applications. This UL 1741 and CSA C22.2 certified unit delivers 3000VA of pure sine wave power and features a 35-Amp adaptive battery charger. By utilizing a 48V architecture, the PMP482305102 maximizes system efficiency and allows for smaller wire gauges, making it the ideal cornerstone for modern Lithium-based solar arrays.
Verified 48V MultiPlus-II Documentation
Download MultiPlus-II 48/3000/35-50 UL Datasheet (PDF)Advanced 48V System Features
- ESS Optimized: Seamlessly integrates with external solar charge controllers and grid-tied systems for self-consumption and backup power.
- PowerAssist Technology: Supplements limited AC input (small generators or grid connections) with battery power during peak loads to prevent breaker tripping.
- 48V High-Efficiency Charging: Features a 4-stage adaptive charge algorithm optimized for 48V Lithium (LiFePO4) and lead-acid battery banks.
- Dual AC Outputs: The primary output provides UPS functionality; the second output is live only when AC input is present, preventing deep discharge from non-essential loads.
- Parallel and 3-Phase Ready: Up to 6 units can be paralleled, or configured for 3-phase and split-phase 120/240V operation.
Verified Physical Specifications (PMP482305102)
| Height | 22.5” (572 mm) |
| Width | 10.9” (277 mm) |
| Depth | 5.8” (148 mm) |
| Net Product Weight | 42 lbs (19 kg) |
Electrical Performance (48V / 120V)
| Continuous Output (25°C) | 3000VA / 2400 Watts |
| Peak Power (Surge) | 5500 Watts |
| Max 48V Charge Current | 35 Amps DC |
| AC Transfer Switch | 50 Amps |
| Peak Efficiency | 95% |
Technical Compliance & Networking
Model Reference: MultiPlus-II 48/3000/35-50 120V UL (PMP482305102)
Certifications: UL 1741, CSA C22.2, IP22 protection.
Monitoring: Bluetooth capable via VE.Bus Smart dongle or full remote management through Cerbo GX and the VRM portal.
