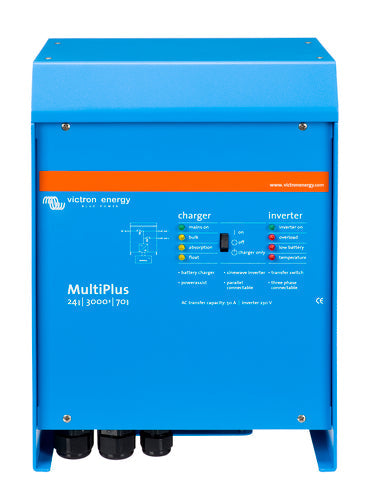

xVictron MultiPlus 24/3000/70-50 120V UL (PMP242301102)
The Victron MultiPlus 24/3000/70-50 120V UL is a professional-grade 24V power solution specifically certified for North American mobile and off-grid applications. This UL 1741 and UL 458 certified unit combines a 3000VA pure sine wave inverter, a 70-Amp adaptive battery charger, and a high-speed 50A automatic transfer switch. By utilizing a 24V architecture, this MultiPlus allows for higher system efficiency and reduced cable sizing compared to traditional 12V systems, making it the ideal hub for advanced power networks.
Verified 24V 3kVA MultiPlus Documentation
Download MultiPlus 24/3000/70-50 UL Datasheet (PDF)Advanced Functionality & Safety
- PowerAssist Technology: Prevents overload of limited AC sources (such as a 15A shore power plug or a small generator) by supplementing the supply with battery power during peak loads.
- Uninterruptible Power Supply (UPS): Features a high-speed transfer relay that switches to battery power in less than 20 milliseconds in the event of a power failure.
- Dual AC Outputs: Optimizes energy management by allowing non-essential loads (like air conditioners or water heaters) to be powered only when shore power or generator AC is present.
- Adaptive 4-Stage Charging: Specifically optimized for 24V Lithium (LiFePO4), AGM, and Gel batteries with variable absorption times to maximize battery life.
- Parallel and 3-Phase Ready: Scale your system by connecting up to six units in parallel or configure for 120/240V split-phase operation.
Verified Physical Specifications (PMP242301102)
| Height | 14.3” (362 mm) |
| Width | 10.2” (258 mm) |
| Depth | 8.6” (218 mm) |
| Net Product Weight | 40 lbs (18 kg) |
Electrical Performance (24V / 120V)
| Continuous Output (at 25°C) | 3000VA / 2400 Watts |
| Peak Power (Surge) | 6000 Watts |
| Max 24V Charge Current | 70 Amps DC |
| AC Transfer Relay | 50 Amps |
| Peak Efficiency | 94% |
Technical Compliance & Monitoring
Model Reference: MultiPlus 24/3000/70-50 120V UL (PMP242301102)
Certifications: UL 1741, UL 458, CSA C22.2, IP21 Protection.
System Monitoring: Fully compatible with the Victron Cerbo GX, VRM Portal, and VictronConnect app via VE.Bus. Verified weight (40 lbs) sourced from official Victron Energy technical data.
