xVictron SmartSolar MPPT 250/60-Tr: High-Voltage 60A Solar Controller (SCC125060221)

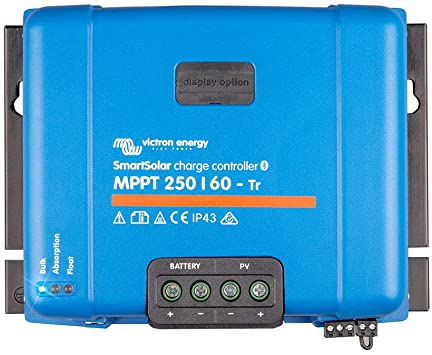

The Victron Energy SmartSolar MPPT 250/60-Tr (SCC125060221) is an ultra-high performance charge controller designed for professional solar installations. With a massive 250V maximum PV input and 60A continuous output, this unit allows for long solar strings and reduced wiring costs. Featuring integrated Bluetooth Smart, it offers seamless wireless monitoring and configuration via the VictronConnect app.
Technical Specifications & Documentation
Click here to open the SmartSolar 250/60-Tr Spec Sheet in a new windowAdvanced Harvesting & System Safety
- Bluetooth Smart Built-in: Wirelessly setup, monitor, and update your controller. Track real-time performance and 30-day history from your mobile device.
- Ultra-Fast MPPT Tracking: Improves energy harvest by up to 30% compared to PWM controllers, particularly during fast-changing light conditions.
- 250V Input Capacity: Enables efficient series configurations and reduces the need for heavy-gauge DC wiring from the array.
- Tr (Screw Terminals): Robust connection points for 35 mm² / AWG2 cables, ideal for high-current applications.
- VE.Direct Port: For wired connection to a Color Control GX, Cerbo GX, or PC.
Maximum Recommended PV Power
| 12V Battery System | 860 Watts |
| 24V Battery System | 1720 Watts |
| 36V Battery System | 2580 Watts |
| 48V Battery System | 3440 Watts |
Electrical Specifications
| Rated Charge Current | 60 Amps |
| Max. PV Open Circuit Voltage | 250 Volts (Absolute Maximum) |
| Peak Efficiency | 99% |
| Part Number | SCC125060221 |
| Warranty | 5 Years Limited |
