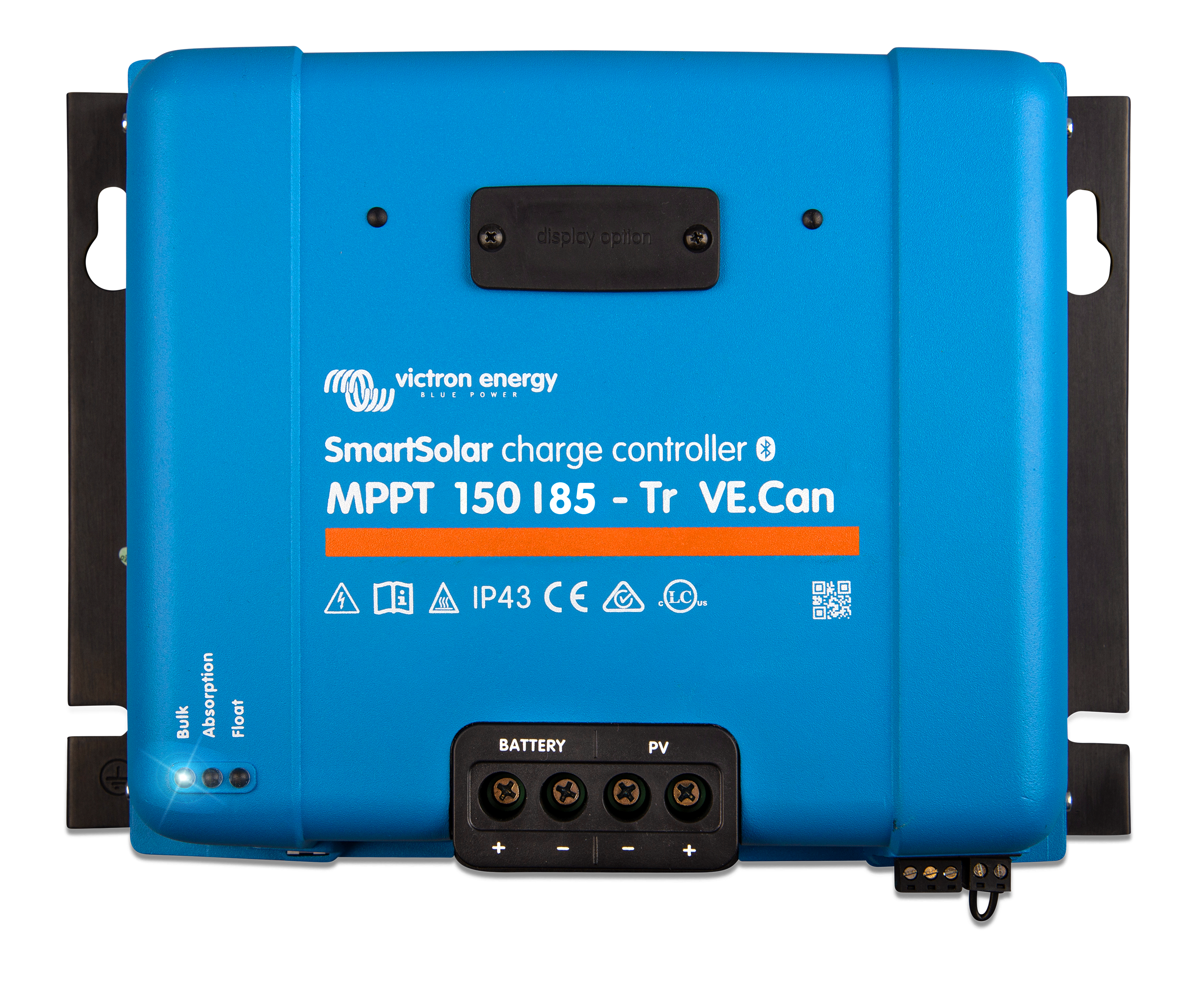

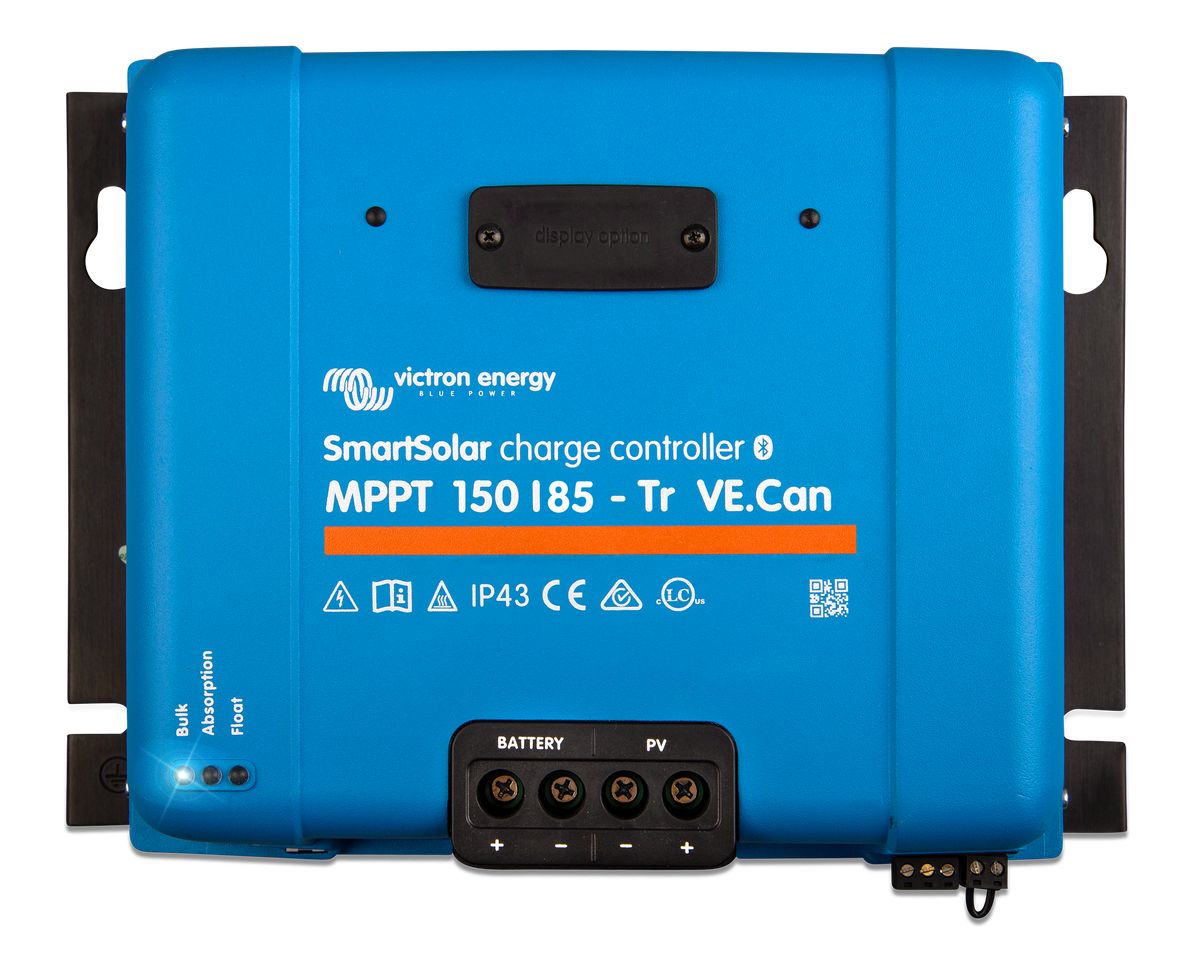

xVictron SmartSolar MPPT 150/85-Tr (VE.Can): 85A High-Power Solar Controller (SCC115085411)
The Victron Energy SmartSolar MPPT 150/85-Tr VE.Can (SCC115085411) is a professional-grade 85-amp charge controller built for large-scale energy systems. With its 150V maximum PV input and 85A continuous output, it is the ideal solution for 48V battery banks requiring up to 4900W of solar. This specialized version features VE.Can networking, allowing for synchronized charging across multiple units—perfect for heavy-duty marine, RV, and off-grid applications.
Technical Specifications & Documentation
Click here to open the SmartSolar 150/85-Tr VE.Can Spec Sheet in a new windowAdvanced Harvesting & Network Integration
- VE.Can Communication: Purpose-built for systems with multiple charge controllers. Daisy-chain up to 25 units using RJ45 cables for perfectly synchronized charging.
- Bluetooth Smart Built-in: Wirelessly monitor, setup, and update the SCC115085411 directly from your smartphone via the VictronConnect app.
- Ultra-Fast MPPT Tracking: Increases energy harvest by up to 30% compared to PWM controllers, particularly during clouded or changing light conditions.
- Advanced Maximum Power Point Detection: Innovative algorithm locks onto the absolute optimum MPP even during partial shading, ensuring maximum efficiency.
- Tr Version (Screw Terminals): Rugged screw terminal design accommodates cables up to 35 mm² (AWG2) for secure, high-current connections.
Maximum Recommended PV Power
The SmartSolar 150/85-Tr handles massive wattage for high-capacity battery systems:
| 12V Battery System | 1200 Watts |
| 24V Battery System | 2400 Watts |
| 36V Battery System | 3600 Watts |
| 48V Battery System | 4900 Watts |
Electrical Specifications
| Rated Charge Current | 85 Amps |
| Max. PV Open Circuit Voltage | 150 Volts (Absolute Maximum) |
| Peak Efficiency | 98% |
| Connectivity | VE.Can, VE.Direct, and Bluetooth |
| Model Number | SCC115085411 |
| Warranty | 5 Years Limited |
