xVictron SmartSolar MPPT 150/45: 45A Professional Solar Controller with Bluetooth

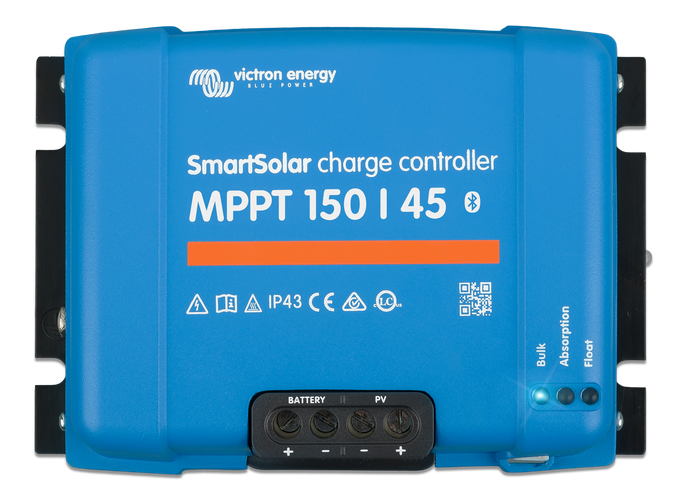

The Victron Energy SmartSolar MPPT 150/45 is a high-performance, high-voltage charge controller designed for professional solar installations. With a 150V maximum PV input and 45A charge current, it enables the use of longer solar strings to reduce wiring costs and maximize efficiency. Featuring integrated Bluetooth Smart, this controller provides seamless wireless monitoring and configuration via the VictronConnect app.
Technical Specifications & Documentation
Click here to open the SmartSolar 150/45 Spec Sheet in a new windowAdvanced Harvesting & System Safety

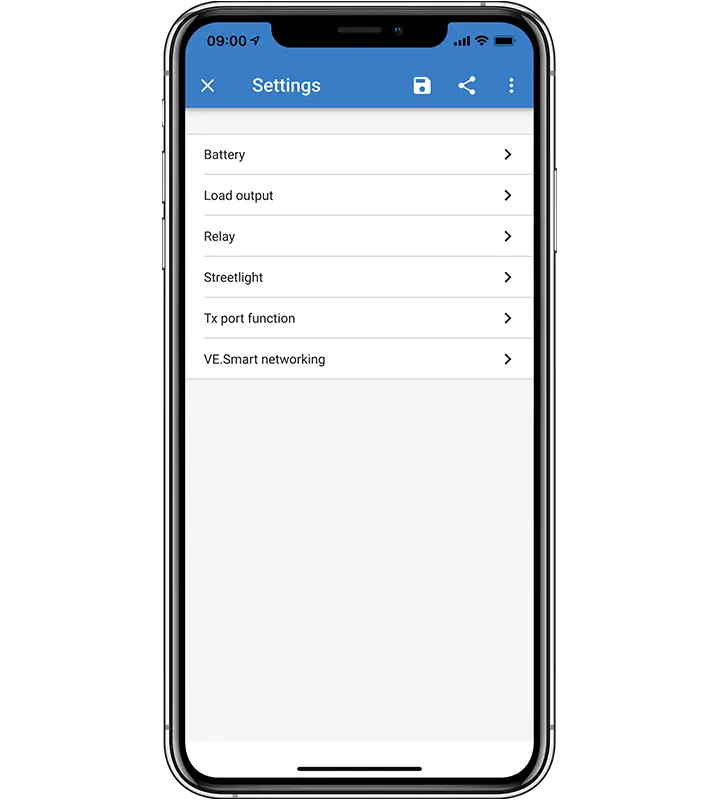

- Bluetooth Smart Built-in: Setup, monitor, and update your controller wirelessly. Track real-time watts, battery voltage, and 30-day history from your smartphone.
- Ultra-Fast MPPT Tracking: Improves energy harvest by up to 30% compared to PWM controllers, particularly during fast-changing light conditions (cloud cover).
- Advanced Maximum Power Point Detection: Innovative algorithm ensures the controller locks onto the absolute best MPP, maximizing harvest even in partial shading.
- Multi-Voltage Support: Automatically detects 12V, 24V, 36V, and 48V battery systems.
- Comprehensive Protection: Integrated protection against over-temperature, PV short circuits, and PV reverse polarity for long-term reliability.
Maximum Recommended PV Power
The SmartSolar 150/45 handles substantial power across all battery voltages:
| 12V Battery System | 650 Watts |
| 24V Battery System | 1300 Watts |
| 36V Battery System | 1950 Watts |
| 48V Battery System | 2600 Watts |
Electrical Specifications
| Rated Charge Current | 45 Amps |
| Max. PV Open Circuit Voltage | 150 Volts (Absolute Maximum) |
| Peak Efficiency | 98% |
| Self-Consumption | 10mA to 35mA |
| Protection Rating | IP43 (Components) / IP22 (Terminals) |
| Warranty | 5 Years Limited |
