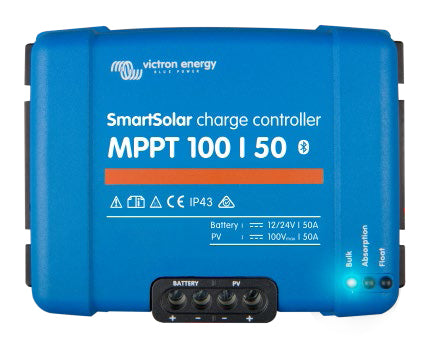

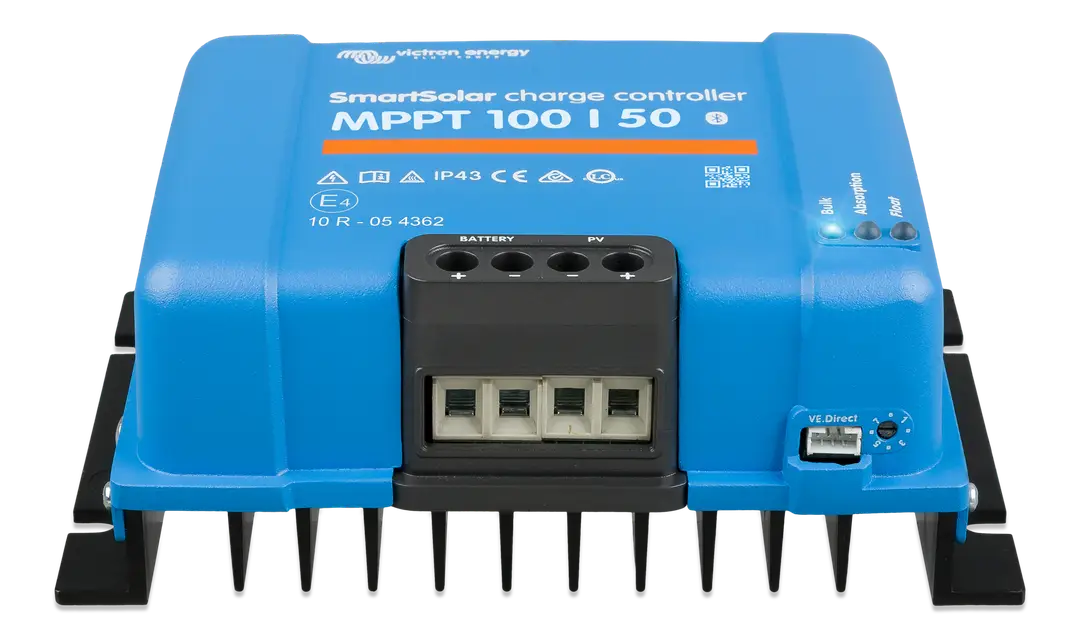

xVictron SmartSolar MPPT 100/50: 50A High-Power Solar Controller with Bluetooth
The Victron Energy SmartSolar MPPT 100/50 is a high-capacity 50-amp charge controller engineered to harvest maximum energy from your solar array. With integrated Bluetooth Smart, you can setup, monitor, and update this controller wirelessly via the VictronConnect app. Ideal for larger mobile systems, marine applications, and off-grid cabins, its ultra-fast MPPT tracking delivers superior performance in all weather conditions.
Technical Specifications & Documentation
Click here to open the SmartSolar Technical Data in a new windowAdvanced Harvesting & Battery Life Protection
- Bluetooth Smart Integrated: No wires or dongles needed. Access live status and 30-day historical data from your smartphone or tablet.
- Ultra-Fast MPPT Tracking: Improves energy harvest by up to 30% compared to PWM controllers, especially during overcast days when light intensity changes rapidly.
- BatteryLife Algorithm: This intelligent function prevents battery damage by ensuring the battery is frequently recharged to 100%, extending the lifespan of your deep-cycle bank.
- Multi-Voltage Support: Automatically recognizes 12V and 24V battery systems with high conversion efficiency exceeding 98%.
- Internal Temperature Sensor: Compensates absorption and float charge voltages based on ambient temperature to ensure optimal charging.
Maximum Recommended PV Power
The SmartSolar 100/50 handles significant wattage for mid-to-large arrays:
| 12V Battery System | 700 Watts |
| 24V Battery System | 1400 Watts |
Electrical Specifications
| Rated Charge Current | 50 Amps |
| Max. PV Open Circuit Voltage | 100 Volts |
| Peak Efficiency | 98% |
| Terminal Size | 16 mm² / AWG6 |
| Protection | Over-temperature, PV short circuit, PV reverse polarity |
| Warranty | 5 Years Limited |
