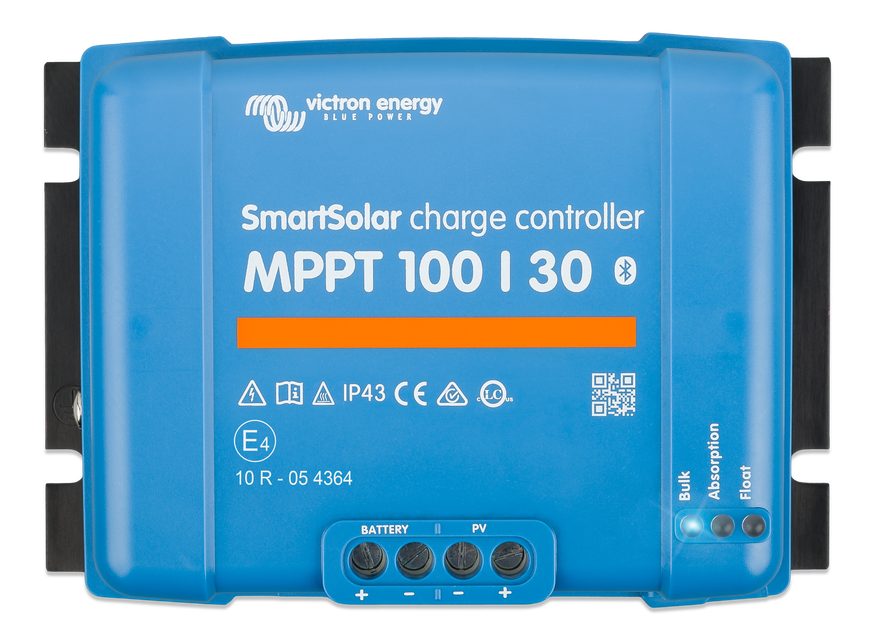

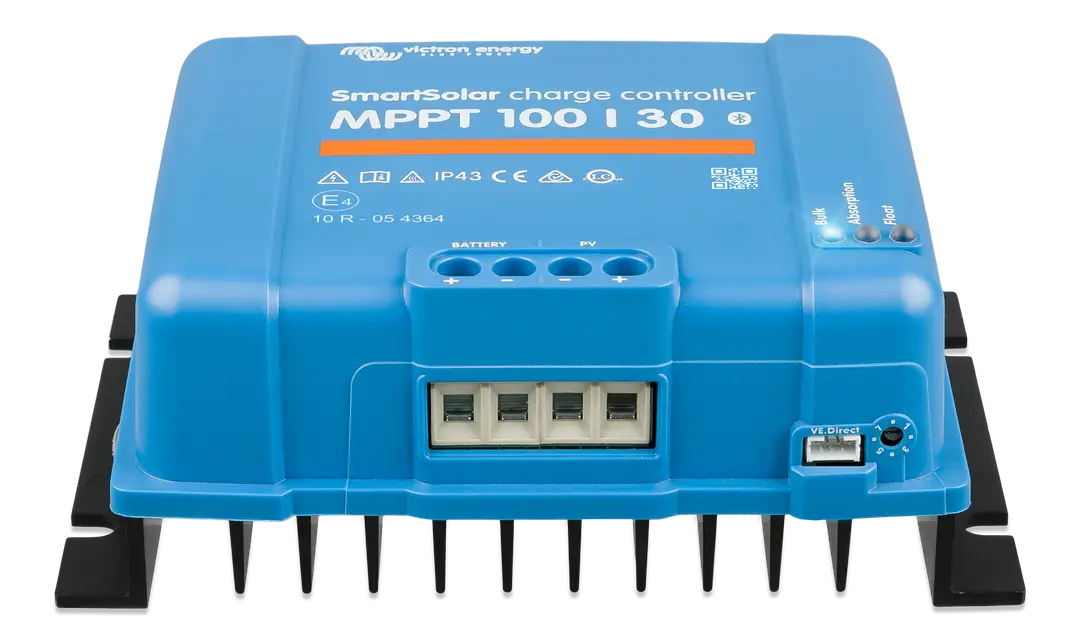

xVictron SmartSolar MPPT 100/30: 30A High-Efficiency Solar Controller with Bluetooth
The Victron Energy SmartSolar MPPT 100/30 is a powerful 30-amp solar charge controller designed to maximize energy harvest from your solar panels. Featuring integrated Bluetooth Smart, this controller allows for wireless setup and monitoring via the VictronConnect app. Whether you are powering a van, boat, or off-grid cabin, the ultra-fast MPPT technology ensures peak performance even under cloud cover or changing light conditions.
Technical Specifications & Documentation
Click here to open the SmartSolar Spec Sheet in a new windowAdvanced Features & Intelligent Charging
- Bluetooth Smart Built-in: No additional hardware required. Monitor live status, view historical data, and update firmware directly from your smartphone.
- Ultra-Fast MPPT Technology: Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM controllers.
- BatteryLife Management: This intelligent algorithm monitors the state of charge of the battery and, if needed, day by day slightly increases the load disconnect level until the battery is recharged to 100%.
- Programmable Charging: Fully configurable charging algorithms for Lead-acid, AGM, Gel, and Lithium (LiFePO4) batteries.
- Outstanding Conversion Efficiency: Maximum efficiency exceeds 98%, with full output current up to 40°C (104°F).
Maximum Recommended PV Power
The SmartSolar 100/30 supports high-wattage arrays for 12V and 24V systems:
| 12V Battery System | 440 Watts |
| 24V Battery System | 880 Watts |
Electrical Specifications
| Rated Charge Current | 30 Amps |
| Max. PV Open Circuit Voltage | 100 Volts |
| Peak Efficiency | 98% |
| Self-Consumption | 10mA to 30mA |
| Protection | PV Reverse Polarity / Output Short Circuit / Over Temperature |
| Warranty | 5 Years Limited |
