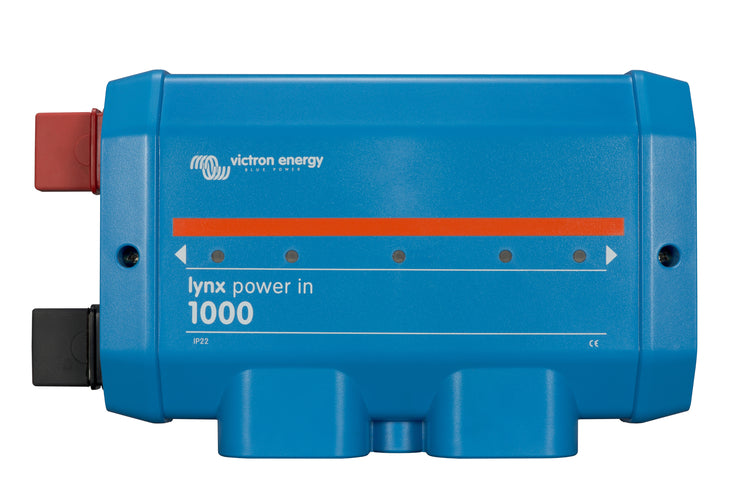

xVictron Lynx Power In M10: The Industrial-Grade Battery Consolidation Hub
The Victron Energy Lynx Power In (M10) is the essential starting point for any high-current DC distribution system. Engineered for professional-grade power hubs, this modular busbar is rated for a continuous 1000A. It is designed to cleanly and safely consolidate up to four battery banks or DC sources into a single, high-capacity distribution point for 12V, 24V, or 48V systems.
This M10 Version represents the latest hardware standard from Victron Energy, featuring 10mm interconnecting studs for superior mechanical strength and lower electrical resistance. Whether you are building a large Lithium (LiFePO4) battery bank for a catamaran or an off-grid solar installation, the Lynx Power In provides the robust foundation needed for maximum system reliability.
Search Summary: 1000A Continuous Rating | M10 Interconnect Hardware | 4x Battery/DC Input Slots | Tinned Copper Busbars | 9-60V DC Compatibility | Modular & Expandable Design | Professional Cable Management.
Why Choose the M10 Lynx Power In?
- 1000A High-Current Capacity: Built to handle the massive discharge currents required by large inverter/chargers and high-capacity Lithium systems.
- Modular Flexibility: Seamlessly connects to the Lynx Distributor, Lynx Shunt, or Lynx Smart BMS via M10 modular joints to create a comprehensive power hub.
- Clean Wiring Architecture: Eliminates the "clutter" of multiple battery cables by providing a centralized, protected location for all primary DC connections.

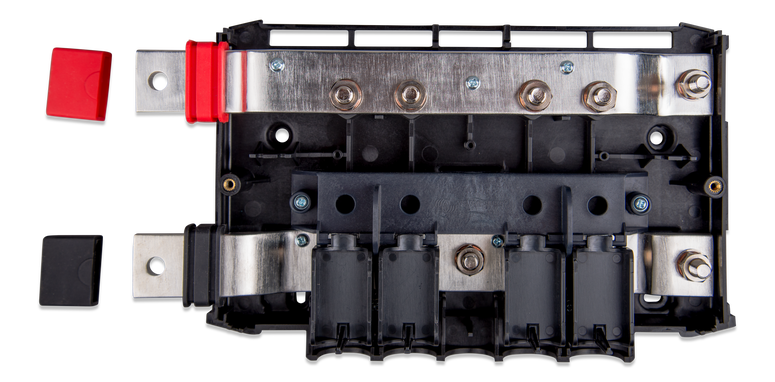

- Marine-Grade Durability: Features tinned copper busbars (8 x 30mm) for maximum conductivity and resistance to corrosion in salt-air environments.
- Future-Proofed Standard: As Victron transitions to M10 hardware, this unit ensures compatibility with the newest generation of Lynx Smart BMS and Shunt modules.
Technical Specifications:
| Voltage Range | 9 - 60V DC |
| Current Rating | 1000A Continuous |
| Interconnect Hardware | M10 Studs / Holes |
| Battery Connection Studs | M8 Studs (4 Positive, 4 Negative) |
| Busbar Material | Tinned Copper (8 x 30mm) |
| Enclosure Dimensions | 290 x 170 x 80 mm |
System Configuration Note:
The Lynx Power In is a non-fused busbar. It is designed to consolidate power before it reaches fused distribution. For fused branch circuits (loads/chargers), pair this unit with a Lynx Distributor M10. Ensure all connecting Lynx modules share the same M10 hardware size for a proper fit.
Technical Tip: The Lynx Power In is often used by DIYers to create a fused busbar by adding MEGA fuses and specialized bolts. However, for a factory-fused solution with monitoring, the Lynx Distributor is the recommended companion module.
