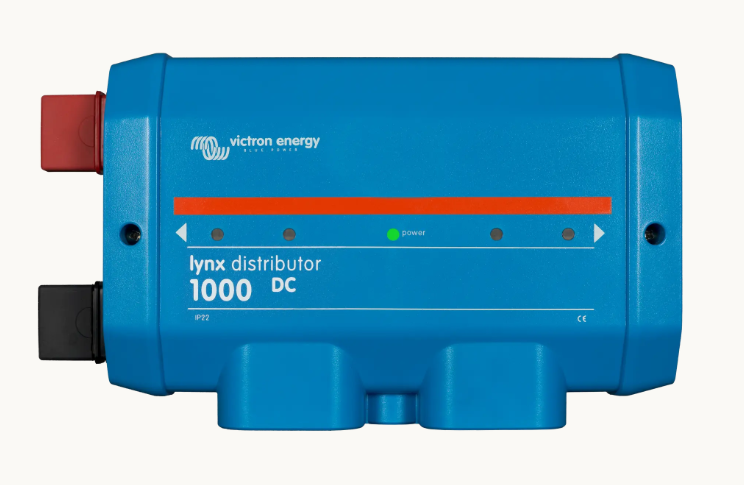

Victron Lynx Distributor M10: Professional 1000A Modular DC Distribution

The Victron Energy Lynx Distributor (M10) is the new standard for high-current DC power management. Rated for a continuous 1000A, this modular busbar system is designed to organize and protect your primary DC circuits. The M10 version features heavy-duty 10mm interconnecting studs, providing superior mechanical strength and lower resistance for high-capacity 12V, 24V, and 48V battery banks.

Equipped with integrated LED fuse monitoring, the Lynx Distributor provides instant visual diagnostics. Each of the four MEGA fuse slots features a front-panel LED: green indicates a healthy fuse, while red signals a blown circuit. When paired with a Lynx Smart BMS, this data is transmitted to your GX device or smartphone for real-time system monitoring via VictronConnect.

Key Features of the M10 Standard:

• Robust M10 Interconnects: Designed to handle higher torque and provide a more secure physical connection when linking multiple Lynx modules.
• Intelligent Monitoring: Front-facing LEDs provide "at-a-glance" status for all four fused circuits.
• Industrial-Grade Conductivity: Tinned copper busbars (8 x 30mm) ensure maximum performance and corrosion resistance, even in marine environments.
• Scalable Architecture: Easily connects to the Lynx Power In, Lynx Shunt, or Lynx Smart BMS to build a professional, ultra-clean power hub.
• Standardized Branch Connections: While the main busbar uses M10 joints, the fuse and cable branch connections utilize M8 studs, perfectly suited for standard MEGA fuses.

Technical Specifications:

Technical Tip: When assembling the Lynx system, use a torque wrench to tighten the M10 interconnecting bolts to 17Nm. This ensures a low-resistance connection capable of handling full 1000A loads without overheating.
