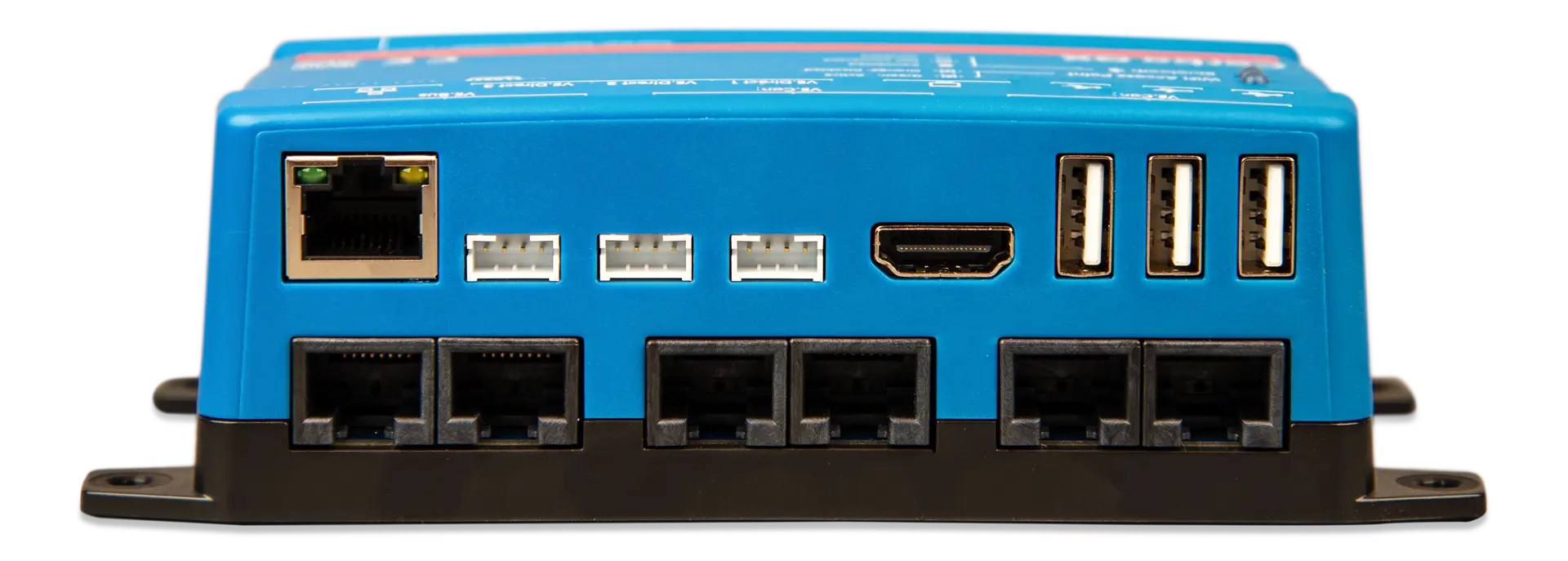

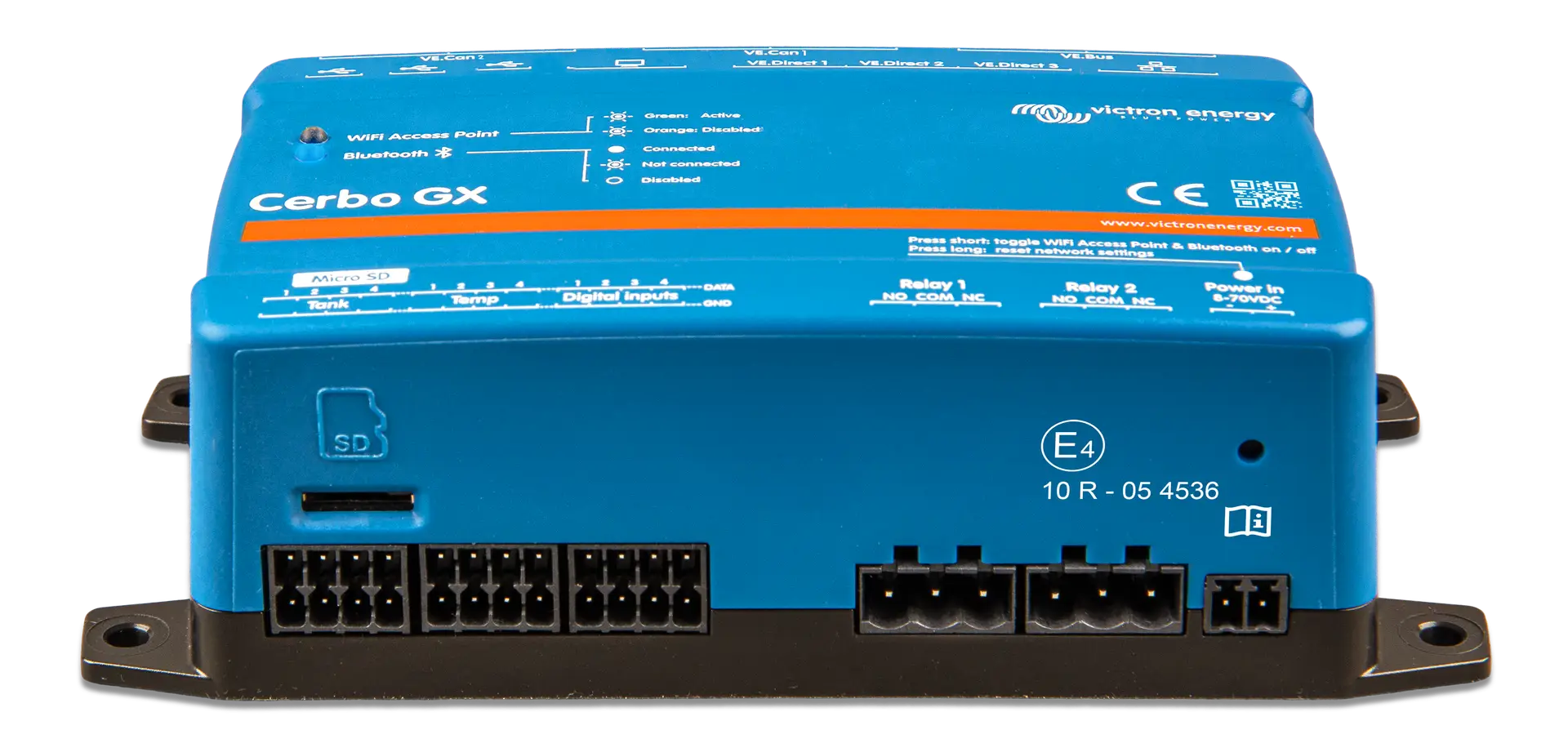

Victron Energy Cerbo GX MK2: The Ultimate Power Communication Centre

The Victron Cerbo GX MK2 represents the next generation of system monitoring and control. Acting as the "brain" of your energy system, the MK2 allows you to perfectly control your MultiPlus inverters, MPPT charge controllers, and battery monitors from anywhere in the world. This updated MK2 version features two fully functional VE.Can ports, providing expanded flexibility for complex marine, off-grid, and backup power systems.

Key Enhancements of the MK2 Version

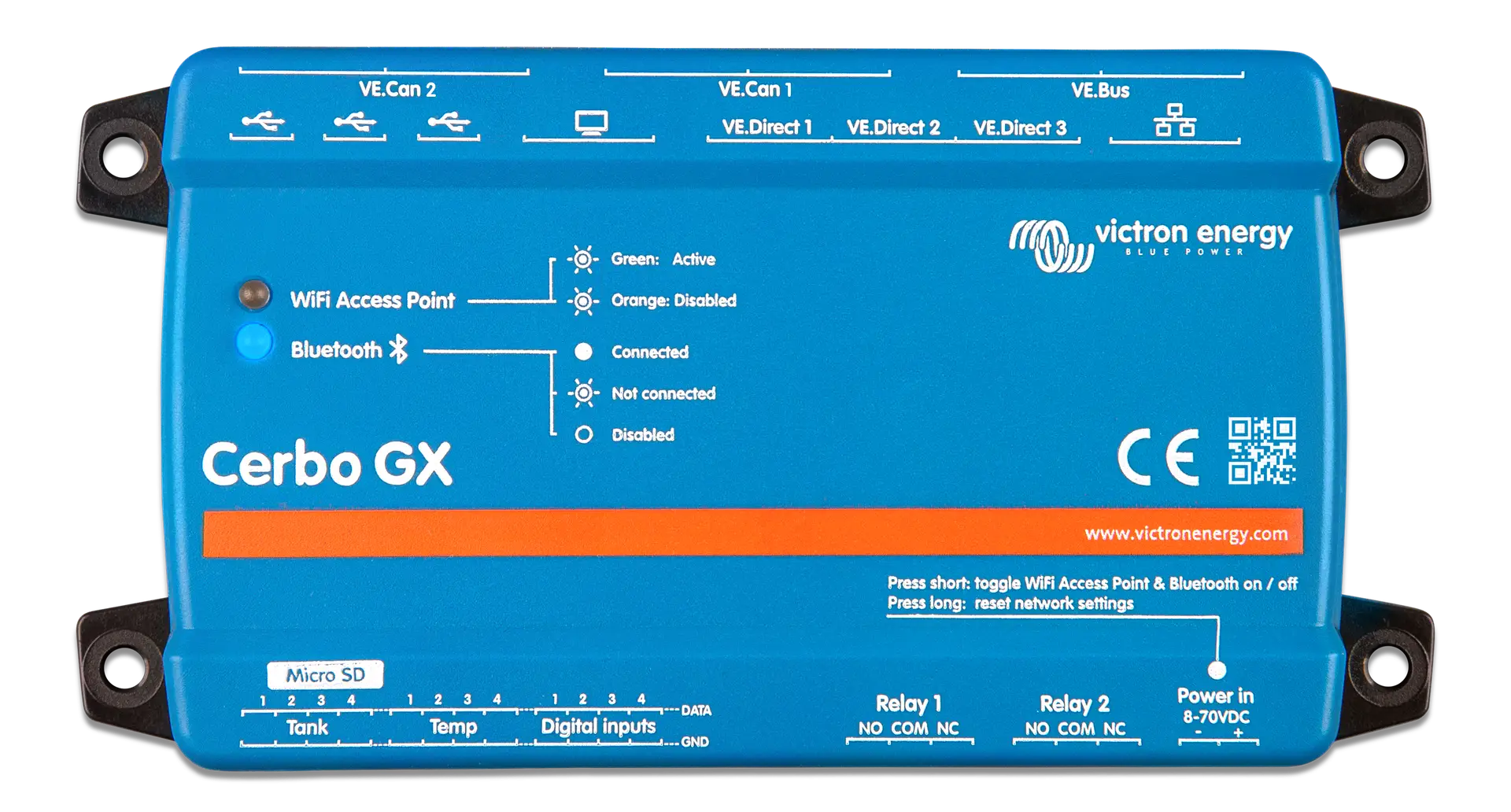

• Two Full VE.Can Ports: Unlike the previous model, the MK2 offers two independent, functional VE.Can ports (isolated), ideal for connecting multiple strings of CAN-bus batteries or high-power MPPTs.
• Increased Tank Inputs: Features 4 Tank Level inputs and 4 Temperature inputs for comprehensive environmental monitoring.
• Enhanced Remote Control: Instantly monitor battery state of charge, power consumption, and PV harvest via the Victron Remote Management (VRM) portal or the VictronConnect App.
• Perfect Integration: Seamlessly connects with GX Touch 50 or GX Touch 70 screens (sold separately) for a sleek, physical dashboard.
• NMEA 2000 Support: Easily integrates into marine glass bridges and MFDs (Multi-Function Displays).

Technical Specifications

Installation Benefits

The Cerbo GX MK2 is designed for DIN-Rail mounting (with small adapter) or simple surface mounting. It simplifies your wiring by acting as a central hub, reducing the number of wires running to your batteries and inverters. With Automatic Generator Start/Stop logic built-in, it provides ultimate peace of mind for off-grid living.
