xThe Centerpiece of Your Smart Energy Home

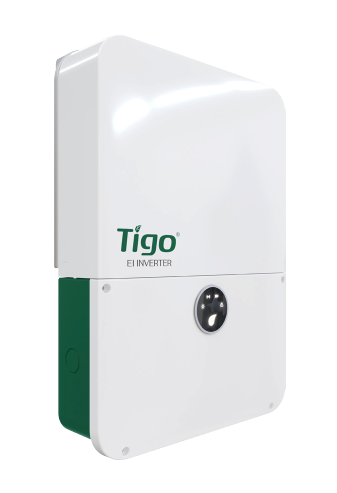

The Tigo EI Inverter 7.6kW (TSI-7.6K-US) is a high-efficiency, storage-ready hybrid inverter designed to orchestrate energy production and consumption seamlessly. As a key component of the Tigo Energy Intelligence (EI) platform, this inverter works with Tigo TS4 MLPE to provide module-level monitoring, optimization, and rapid shutdown compliance, all while being ready for a simple DC-coupled battery upgrade.
🚀 Why Choose the Tigo EI 7.6kW?
- 200% DC Oversizing: Supports up to 15.2kW of PV input for maximum energy harvest even in low-light conditions.
- Low 50V Startup: Begins producing power earlier in the morning and stays on later in the evening than competitors.
- 3 MPPT Design: Offers superior flexibility for complex roof layouts and mismatched string lengths.
- Fast Commissioning: Set up the entire system in under 10 minutes using the Tigo EI Mobile App.
- Revenue Grade Meter (RGM): Built-in 0.5% accuracy meter for precise production tracking and SREC reporting.
Technical Specifications (TSI-7.6K-US)
| Nominal AC Output | 7600W (7.6kW) @ 240V |
| Max. PV Input Power | 15,200W (2:1 DC/AC Ratio) |
| Number of MPPTs | 3 (2 strings per MPPT) |
| Max. Efficiency | 98.4% |
| Enclosure Rating | NEMA 4X (Outdoor Rated) |
| Weight | 32.3 lbs (Lightweight Design) |
📄 Product Documentation
Get the full technical details, wiring diagrams, and warranty information below:
Download Tigo EI Inverter Datasheet (PDF)Certifications: UL1741, UL1699B (AFCI), CSA C22.2 No. 107.1, IEEE 1547, PVRSS Compliant.
*Note: This inverter is optimized for use with Tigo EI Battery and Tigo TS4-A-O/S/M optimizers for full Energy Intelligence functionality.
