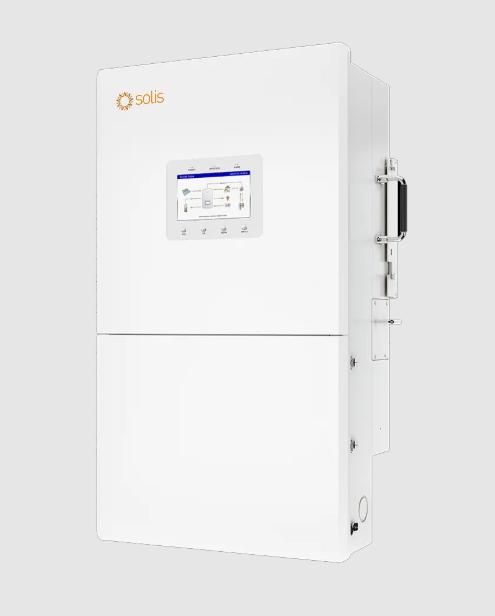

Solis S6-EH2P12K03-SV-YD-L-US-APST 12kW split-phase hybrid inverter for solar and energy storage
Solis S6-EH2P12K03-SV-YD-L-US-APST 12kW split-phase hybrid inverter for solar and energy storage
Solis S6-EH2P9.6K03-SV-YD-L-US-APST 9.6kW Split-Phase Hybrid Inverter

Solis S6-EH2P9.6K03-SV-YD-L-US-APST 9.6kW Split-Phase Hybrid Inverter

Solis S6-EH2P9.6K03-SV-YD-L-US-APST 9.6kW Hybrid Inverter The Solis S6-EH2P9.6K03-SV-YD-L-US-APST is an advanced 9.6kW 48V split-phase hybrid string inverter...
Vendor: Solis
SKU: S6-EH2P9.6K03-SV-YD-L-US-APST
Availability: Many In Stock
Product type: Inverters
$4,100.00
$4,100.00
Request a Quote
Solis S6-EH2P12K03-SV-YD-L-US-APST 12kW split-phase hybrid inverter for solar and energy storage

Solis S6-EH2P9.6K03-SV-YD-L-US-APST 9.6kW Split-Phase Hybrid Inverter

$4,100.00
Solis S6-EH2P12K03-SV-YD-L-US-APST 12kW split-phase hybrid inverter for solar and energy storage
Solis S6-EH2P9.6K03-SV-YD-L-US-APST 9.6kW Split-Phase Hybrid Inverter

Solis S6-EH2P9.6K03-SV-YD-L-US-APST 9.6kW Split-Phase Hybrid Inverter

$4,100.00
Description
Description
x

Solis S6-EH2P9.6K03-SV-YD-L-US-APST 9.6kW Hybrid Inverter

The Solis S6-EH2P9.6K03-SV-YD-L-US-APST is an advanced 9.6kW 48V split-phase hybrid string inverter designed for whole-home energy backup, residential solar storage, and off-grid reliability. Featuring fast outage transfer capabilities, smart generator support, and high DC input capacity, it provides seamless power management for North American homes.

🚚

Freight Shipping & Delivery Notice

Due to the size and weight of this inverter, freight/LTL shipping costs vary by destination, liftgate service requirements, and location type (residential vs. commercial).

Contact us for a custom shipping rate before placing your order, or reach out to our team with your shipping address for a accurate freight quote.

Key Features & Capabilities

  • 9.6kW Continuous Power Output: Provides robust 120V/240V split-phase power for residential backup and energy independence.
  • 3 Independent MPPT Channels: High PV input capacity with 3 MPPTs handling up to 40A operating input current to minimize clipping with high-power modules.
  • 48V Battery Compatibility: Supports low-voltage 40–60V Li-Ion and Lead-Acid battery banks with high charge and discharge efficiency.
  • Integrated 200A Pass-Through: Built-in 200A pass-through and bypass reduces the need for extra external hardware and simplifies panel wiring.
  • Rapid Backup Transfer (<10ms): Fast switchover ensures essential electrical loads remain uninterrupted during power grid failures.
  • Smart Generator & AC Coupling Port: Includes a versatile smart port for generator auto-start integration or AC-coupling existing solar systems.
  • Pre-Wired SunSpec Rapid Shutdown (APST): Equipped with integrated SunSpec transmitter and safety features for code compliance.

Technical Specifications

Specification Details
Manufacturer Solis (Ginlong Technologies)
Model Number S6-EH2P9.6K03-SV-YD-L-US-APST
Rated Output Power 9.6 kW (9,600 W)
AC Output Voltage 120V / 240V Split-Phase
Max DC Input Voltage 550 V
Number of MPPTs / Inputs 3 MPPTs / 6 DC Inputs
Battery Voltage Range 40V – 60V DC
Certifications UL1741SA, UL1741SB, IEEE 1547

Ideal Applications

Whole-Home Microgrid Residential Solar + 48V Storage Time-of-Use (TOU) Energy Management Off-Grid & Generator Integration

Download Technical Datasheet

Access technical parameters, efficiency curves, wiring diagrams, and system dimensions in the official Solis S6 hybrid series datasheet.

📄 Download Solis S6-EH2P (9.6-16kW) Datasheet (PDF)
Shipping
Shipping
x
This product is oversized and not eligible for standard courier shipping. To ensure you receive the most competitive shipping rate, please provide your postal code along with the list of products and quantities you wish to order. We will then prepare a customized shipping quote for you.
