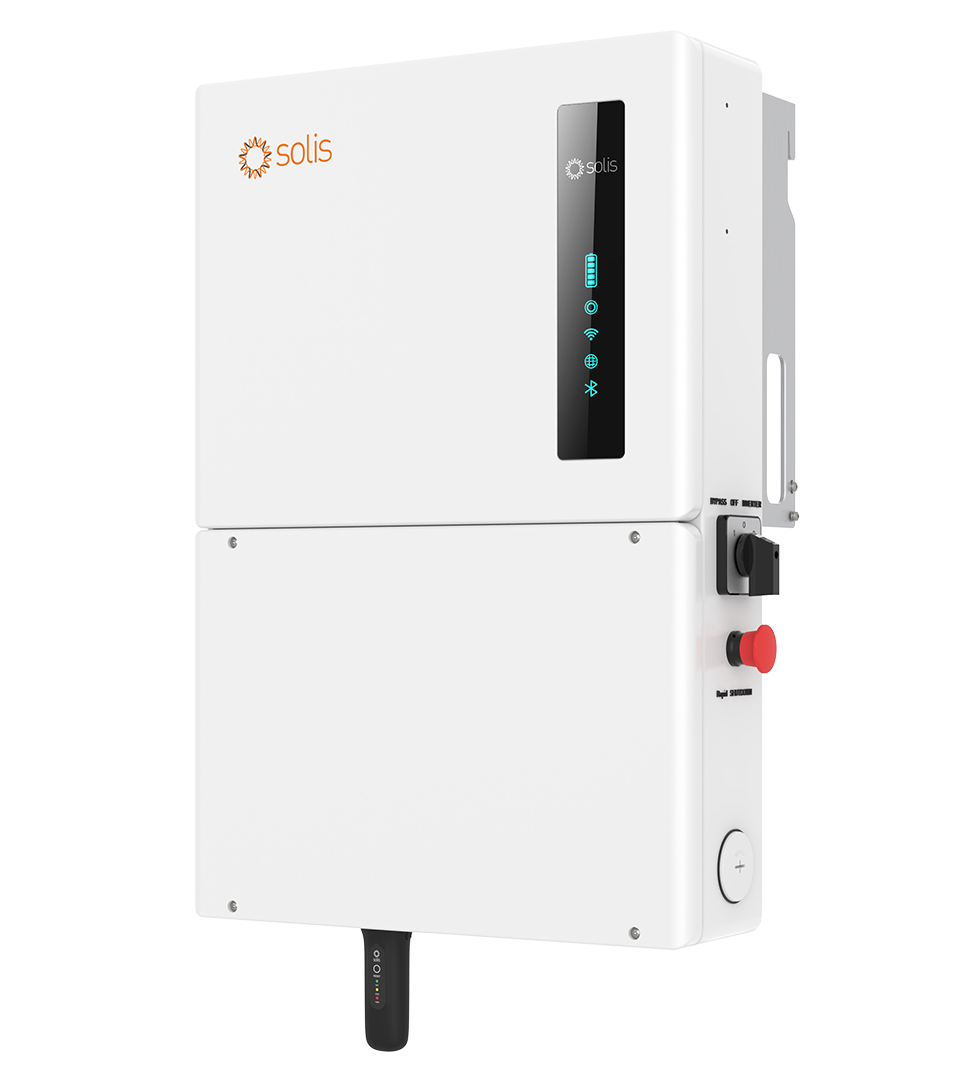

Solis 7.6 kW S6-EH1P7.6K-H-US-APST Hybrid Storage Inverter

Solis 7.6 kW S6-EH1P7.6K-H-US-APST Hybrid Storage Inverter

Solis 7.6 kW S6-EH1P7.6K-H-US-APST Hybrid Storage Inverter The S6 (Series 6) hybrid energy storage inverter is the...
Vendor: Solis
SKU: S6-EH1P7.6K-H-US-APST
Availability: Many In Stock
Product type: Inverters
$2,650.00
$2,650.00
Subtotal: $2,650.00
Solis 7.6 kW S6-EH1P7.6K-H-US-APST Hybrid Storage Inverter

Solis 7.6 kW S6-EH1P7.6K-H-US-APST Hybrid Storage Inverter

$2,650.00
Solis 7.6 kW S6-EH1P7.6K-H-US-APST Hybrid Storage Inverter

Solis 7.6 kW S6-EH1P7.6K-H-US-APST Hybrid Storage Inverter

$2,650.00
Description
Description
x
Solis 7.6 kW S6-EH1P7.6K-H-US-APST Hybrid Storage Inverter

The S6 (Series 6) hybrid energy storage inverter is the latest Solis US model certified to IEEE 1547-2018, UL 1741 SA & SB, and SunSpec Modbus, providing economical zero-carbon power from an all-weather (NEMA 4X / IP 66) high-efficiency PV string inverter. This new PV / Battery inverter can be DC-coupled to a variety of certified high-voltage Lithium batteries. The S6 hybrid is a grid-forming inverter that supports the latest large PV modules with high current (16 amp) dc inputs at each MPPT.
The inverter works with APsmart rapid shutdown.

Features:
  • Backup transfer (switch) time is < 10ms
  • UL 1741 SA/SB and UL 9540 certified
  • Maximum PV input current up to 16A per string
  • California Rule 21 and HECO Rule 14H compliant
  • Generates 120/240V backup power without an external autotransformer
  • DC to DC battery charging for optimal use of PV generated energy
  • External RSD & emergency power off switch options are also available
  • Able to supply a wide range of continuous backup power in the event of a grid outage
  • Generates up to 50A/114kW of continuous backup power with up to 76A for ten seconds
  • Compatible with multiple battery brands, providing up to 150 kWh of storage capacity per inverter
  • Allows up to ten (10) inverters to be stacked in parallel for maximum scalability and flexibility
  • SolisCloud allows for remote system troubleshooting, firmware upgrading, and configuration, reducing O&M costs
  • NEC 2020 compliant with various integrated RSD transmitter options are available for module-level rapid shutdown
  • Supports operation in parallel with a generator and allows the generator to function as the grid source if utility power is lost
  • Optional integrated revenue-grade meter and external energy meter for production & consumption monitoring and export power control

DC Input (PV)

 Max. input voltage 600 V Rated voltage 380 V
  Start-up voltage 80 V MPPT voltage range 80-520 V
  Max. input current per string 16 A Max. short circuit current per string 25.6 A
  Number of MPPTs 4 Number of strings per MPPT 1

Energy Storage

 Battery Type Lithium-ion Battery voltage range 120-500 V
  Maximum charge/discharge current 50 A Battery Communication CAN/RS485
  Number of batteries per inverter See Battery Compatibility Sheet

AC Output (Grid)

 Rated output power 7.6 kW Max. apparent output power 7.6 kVA
  Rated output voltage 240 V Rated frequency 60 Hz
  Rated output current 31.7 A Max. output current 31.7 A
  THDi <3%

AC Input (Grid)

 Input voltage range 211-264 V Max. input current 47.6 A
  Frequency range 58.8-61.2 Hz

AC Output (Backup and Off-grid)

 Rated output power 7.6 kW Max. apparent output power 12.2 kVA, 10 sec
  Back-up switch time <10 ms Phase Power 240 V Split-Phase
  Rated output voltage (L1-L2)/(L1/L2-N) 240 V AC output voltage range 211-264 V
  Rated grid frequency 60 Hz
