Description

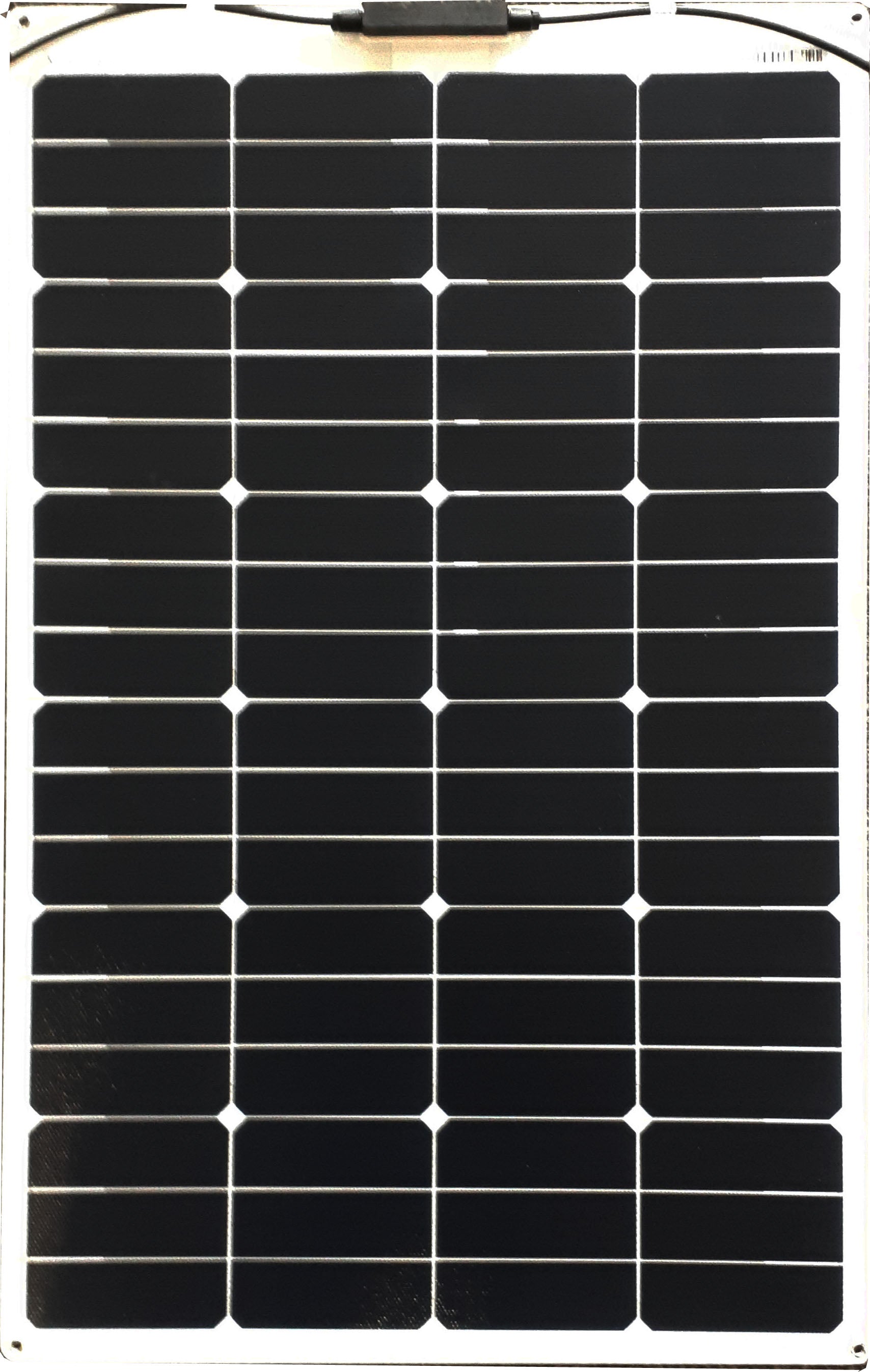

xSolarEngine 90W Semi-Flexible ETFE Solar Panel: Premium Off-Grid Power
Experience superior durability with the SolarEngine 90W Semi-Flexible Solar Panel. Specifically engineered for the marine and RV industry, this module utilizes a premium ETFE (Ethylene Tetrafluoroethylene) top layer. Unlike standard PET panels, SolarEngine’s ETFE construction provides high light transmittance, exceptional scratch resistance, and a significantly longer service life in harsh saltwater and high-UV environments.
The SolarEngine ETFE Advantage
- Self-Cleaning Honeycomb Surface: The unique textured ETFE film reduces light reflection and is naturally non-stick, allowing dust and debris to wash away easily.
- High-Efficiency Back-Contact Cells: Utilizes Sunpower cells with a 22% efficiency rating for maximum power harvest in a compact footprint.
- Marine-Grade Resilience: ETFE is highly resistant to corrosion and high temperatures, preventing the bubbling and delamination common in cheaper alternatives.

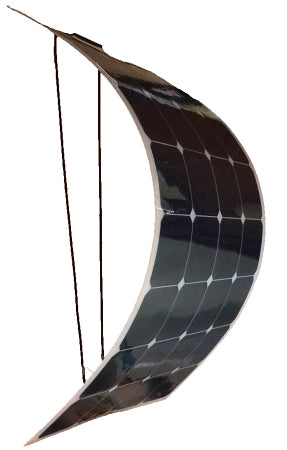

- Bendable & Lightweight: Designed to curve up to 30 degrees, making it ideal for the contoured roofs of RVs, vans, and boat decks.
Electrical Specifications (@ STC)
| Maximum Power (Pmax) | 90W |
| Maximum Power Voltage (Vmp) | 19.8V |
| Maximum Power Current (Imp) | 4.55A |
| Open Circuit Voltage (Voc) | 23.3V |
| Short Circuit Current (Isc) | 4.82A |
| Cell Efficiency | 22% |
| Maximum System Voltage | 45V DC |
Mechanical Data
| Dimensions | 33" x 21.25" x 0.12" (840 x 540 x 3 mm) |
| Weight | 3.8 lbs (1.7 kg) |
| Cell Type | Mono-crystalline (Back Contact) |
| Connector Type | MC4 Compatible |
| Encapsulation | EVA / ETFE |
Ideal for Marine, RV & Van-Life
The SolarEngine 90W is perfect for users requiring a low-profile, aerodynamic power source. Its lightweight nature (only 3.8 lbs) and 15-year material lifespan make it a long-term investment for any mobile off-grid setup.
