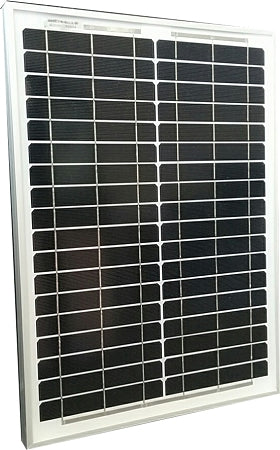

xSolarEngine 20W Mono-Crystalline Solar Panel: High-Efficiency 12V Power
The SolarEngine 20W Mono-Crystalline Solar Panel is a compact and reliable solution for keeping your 12V batteries topped up and ready for action. Built with Grade A Mono-crystalline cells, this panel provides superior energy conversion in a smaller footprint compared to polycrystalline alternatives. It is the perfect choice for RVs, boats, gate openers, and remote telemetry systems.
Designed for Durability & Efficiency
- Grade A Efficiency: Features a 4x9 cell configuration of high-purity mono-crystalline silicon for a 17% cell efficiency rating.
- All-Weather Protection: Engineered with UV-resistant materials and moisture protection to prevent corrosive damage in marine and humid environments.
- Industrial Build: Encapsulated in high-transmission tempered glass and secured by a corrosion-resistant Anodized Aluminum Alloy Frame.
- Low Maintenance: Designed for permanent outdoor installation with a sturdy TPT backsheet for heat dissipation and longevity.
- Safety Optimized: Capable of withstanding mechanical snow loads up to 5400 Pa, ensuring reliability during Canadian winters.
Electrical Specifications (@ STC)
| Maximum Power (Pmax) | 20W |
| Maximum Power Voltage (Vmp) | 18.2V |
| Maximum Power Current (Imp) | 1.1A |
| Open-Circuit Voltage (Voc) | 21.6V |
| Short-Circuit Current (Isc) | 1.23A |
| Maximum System Voltage | 600V DC |
Mechanical Data
| Dimensions (L x W x H) | 17.75" x 13.75" x 0.63" |
| Weight | 4.2 lbs (1.9 kg) |
| Solar Cell Type | Mono-crystalline (4 x 9) |
| Frame Material | Heavy-Duty Anodized Aluminum |
Ideal Applications
The SolarEngine 20W is highly versatile and commonly used as a solar trickle charger for car, marine, and deep-cycle batteries. It is rugged enough for industrial gate openers and agricultural fencing while remaining lightweight enough for portable camping setups.
