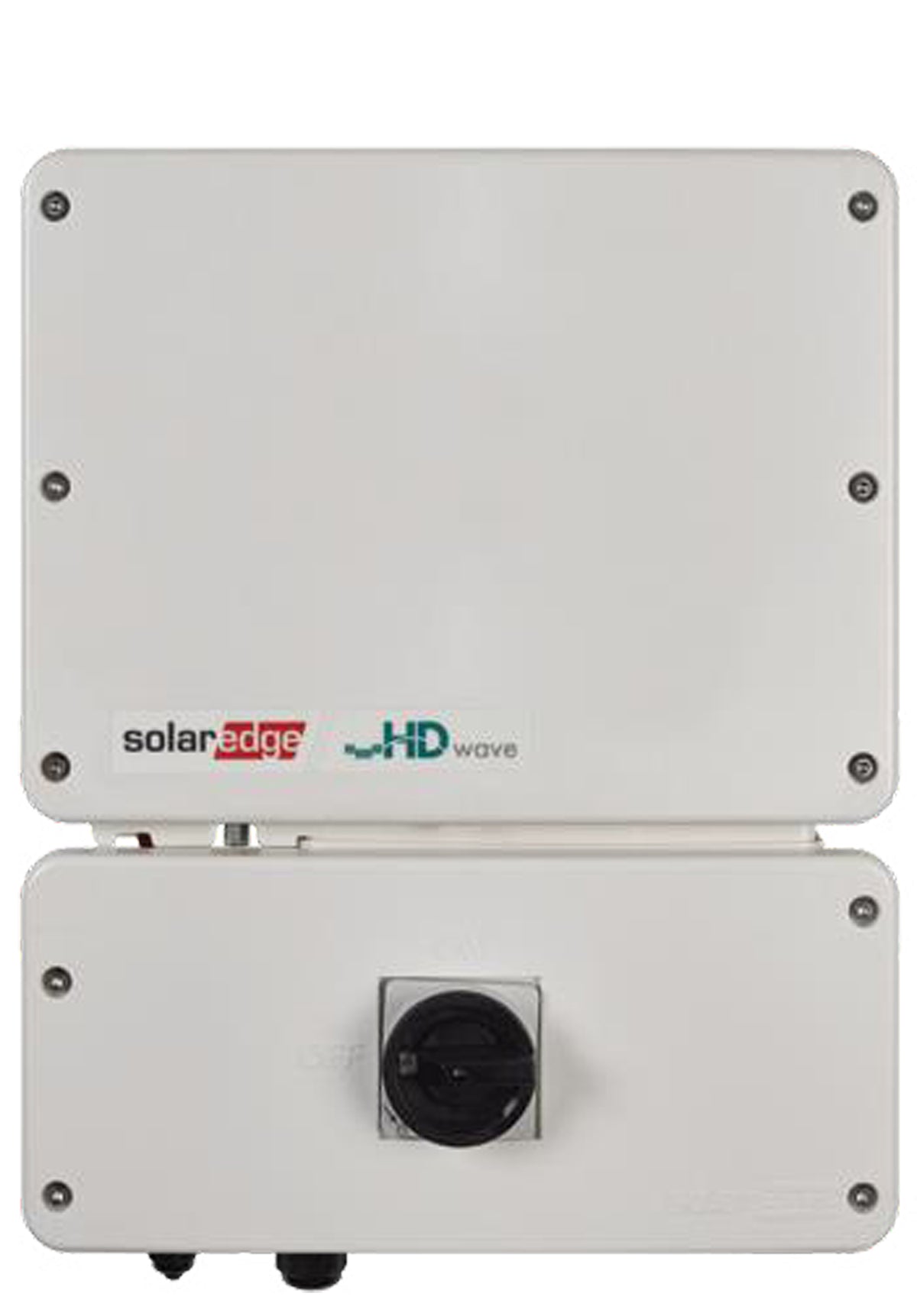

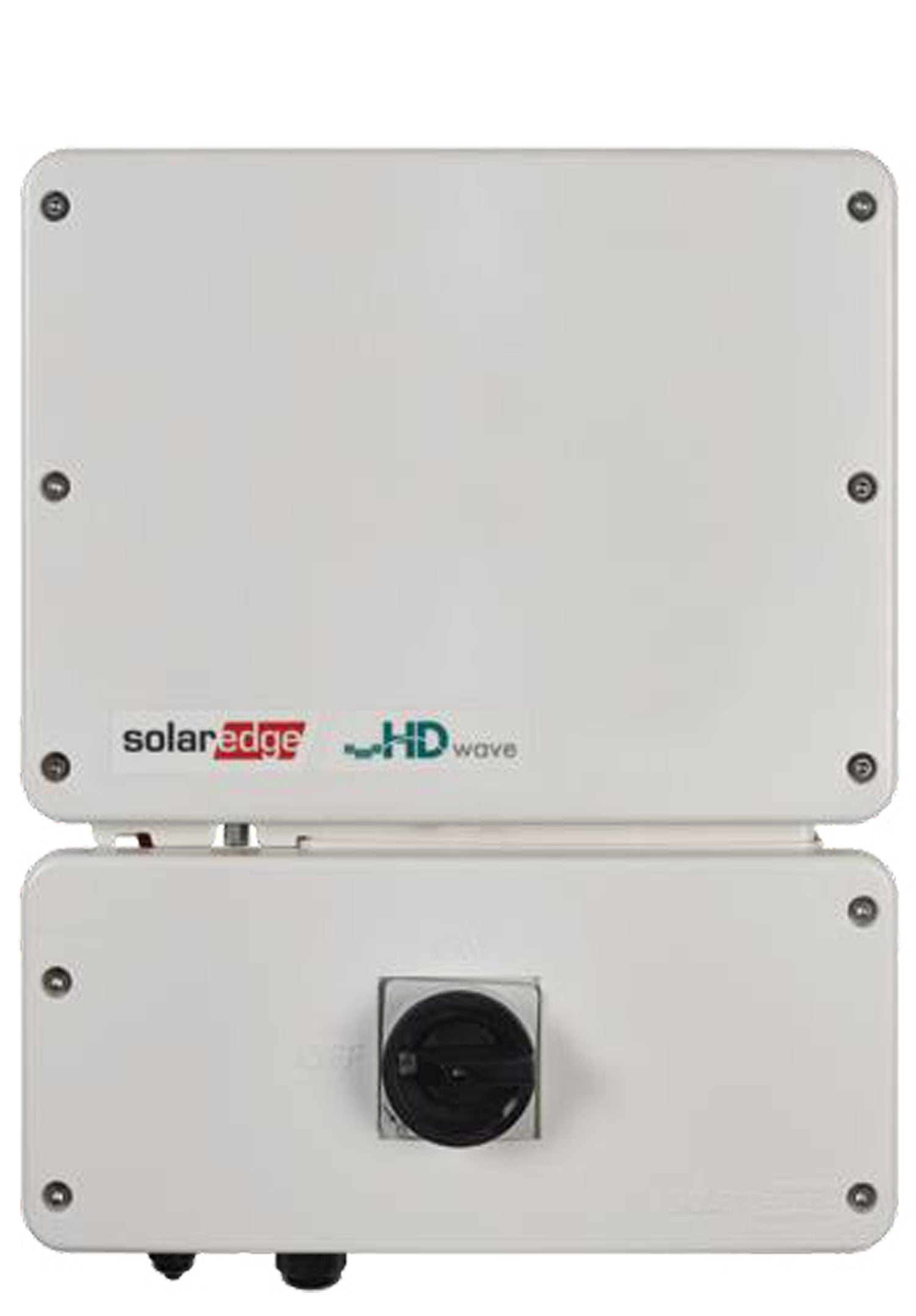

xSolarEdge Home Hub 7.6kW Inverter (SE7600H-USMNBBL14)
The SolarEdge SE7600H-US Home Hub Inverter is the ultimate central brain for modern residential energy systems. This isn't just a solar inverter; it is a comprehensive energy manager that integrates PV production, battery storage, and EV charging into a single, high-efficiency platform. Powered by SolarEdge’s award-winning HD-Wave technology, this inverter allows for extreme 200% DC oversizing, supporting up to 15.2 kW of DC input to maximize energy harvest even in challenging light conditions.
Verified SolarEdge Home Hub Documentation
Download Home Hub 7.6kW Datasheet (PDF)Future-Proof Energy Management
- Industry-Leading 200% DC Oversizing: Connect up to 15,200 Watts of DC solar power to maximize production and battery charging speeds.
- Full Home Backup: Seamlessly connects to the SolarEdge Home Battery and Backup Interface to provide reliable power during grid outages.
- Integrated EV Charging: Supports the SolarEdge Smart EV Charger, utilizing "Solar Boost" mode to charge faster than standard Level 2 systems.
- HD-Wave Technology: Record-breaking 99% weighted efficiency with significantly less heat dissipation, ensuring long-term component reliability.
- SafeDC™ & Arc Fault Protection: Built-in safety features that automatically reduce DC voltage to touch-safe levels (1V per module) during shutdowns.
Verified Electrical Specifications
| Rated AC Power Output | 7600 Watts @ 240V |
| Maximum DC Input Power (STC) | 15,200 Watts |
| CEC Weighted Efficiency | 99% |
| Maximum Continuous Output Current | 32 Amps |
| Maximum Input Current (DC) | 20 Amps |
Mechanical & Installation Data
| Dimensions (H x W x D) | 21 x 14.6 x 8.2 in |
| Weight | 41.7 lbs (18.9 kg) |
| Cooling | Natural Convection (Fanless) |
| Enclosure Rating | NEMA 4X (Outdoor / Indoor) |
Compliance & Monitoring
Inverter Model: SE7600H-USMNBBL14
Safety Standards: UL1741, UL1741SA, UL1699B, CSA C22.2.
Monitoring: Built-in module-level monitoring via Ethernet, Wi-Fi, or Cellular. This inverter requires SolarEdge Power Optimizers for operation.
