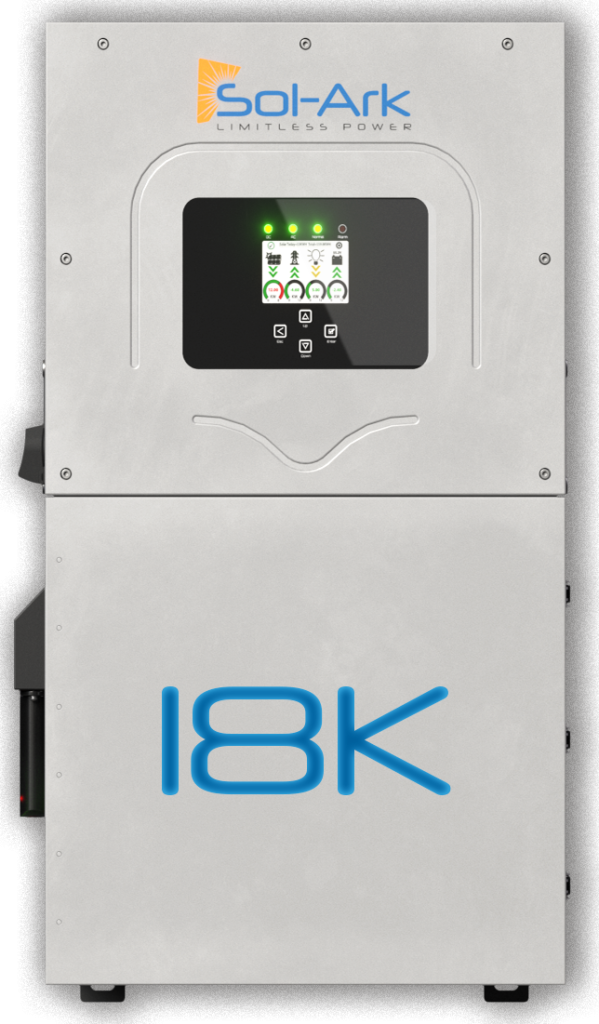

Sol-Ark 18K-PV All-In-One Hybrid Inverter (SA-18K-2P-N)

The Sol-Ark 18K-PV (SA-18K-2P-N) is the pinnacle of residential solar technology, designed to power your entire home without compromise. This all-in-one hybrid inverter simplifies your installation by integrating 3 MPPTs, an 18kW on-grid inverter, and a massive 200A transfer switch into a single, sleek NEMA 3R enclosure. With a 5ms transfer time, the SA-18K-2P-N provides seamless backup power for your entire main panel, protecting your family and electronics during grid failures.

Industry-Leading Power & Flexibility

• Full 200A Whole Home Backup: No need for critical load sub-panels. The integrated 200A bypass switch powers your entire house directly.
• Huge Solar Input: Supports up to 26,000W (26kW) of PV input across 3 independent MPPTs—maximizing energy harvest even on complex roofs.
• 5ms Seamless Transfer: Faster than a standard UPS, ensuring sensitive computers, servers, and medical equipment stay online during a transition.
• Stackable Reliability: Parallel up to 10 units for massive residential or light commercial energy systems.
• Generator Integration: Advanced generator support with Peak Shaving, Auto-Start, and AC-Coupling capabilities.

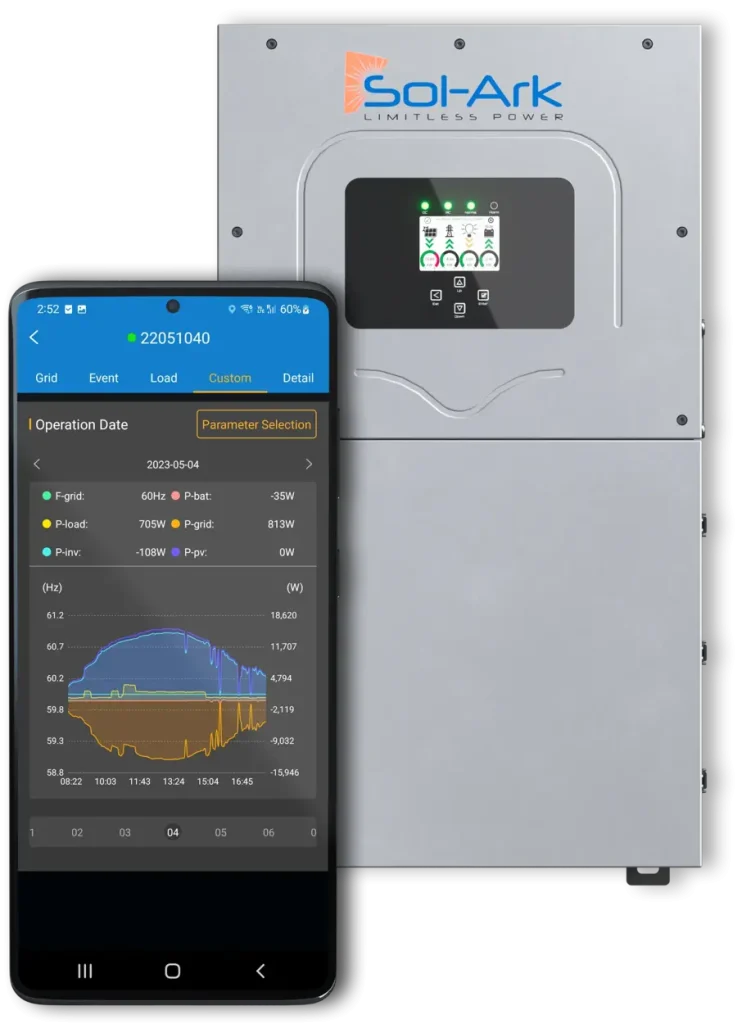

• Smart Energy Ecosystem: Free remote monitoring and configuration via the Sol-Ark app for real-time control from anywhere in the world.

Verified Electrical Specifications

Mechanical & Physical Data

Compliance & Warranty

Model: SA-18K-2P-N
Certifications: UL1741-3, IEEE1547-2018, CSA C22.2, FCC Class B.
Safety Features: Integrated Arc Fault Protection (AFCI) and Rapid Shutdown support.
Warranty: Industry-leading 10-Year Standard Warranty.
