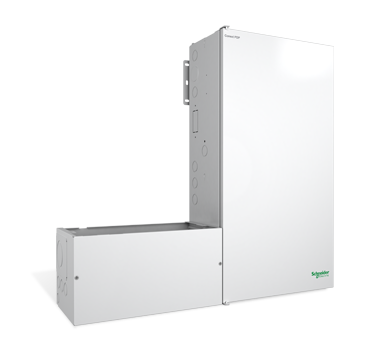

xSchneider Conext XW PDP: Pre-Wired Power Distribution for Professional Solar Systems
The Schneider Electric Conext XW Power Distribution Panel (PDP), model 865-1015-01, is a factory-wired and labeled cabinet designed to significantly reduce installation time and complexity. Built specifically for the Conext XW Pro and XW+ series, this panel provides a clean, code-compliant solution for managing your AC and DC power distribution. By consolidating breakers and wiring into a single enclosure, it reduces total installation time by up to 75% compared to custom-built solutions.
The 865-1015-01 is engineered for flexibility and growth. While it comes ready for a single inverter installation, it features ample space and expansion slots to support up to three XW inverters and four MPPT charge controllers. Its field-reversible door and multiple conduit knockouts allow you to mount the panel on either side of your inverter, ensuring a seamless fit in any battery room or utility space.
Search Summary: Supports Up to 3 Inverters | Factory Pre-Wired & Labeled | Includes 250A DC Breaker | Includes Three 60A 120/240V AC Breakers | Reversible Mounting Door | NEMA 1 Indoor Rated | ETL Listed to UL1741.
Complete Integration & Safety:
- Pre-Installed Protection: Comes standard with one GJ 250A 160Vdc battery breaker and three 60A, 120/240Vac two-pole AC breakers (Input, Bypass, and Load).
- Scalable Architecture: Features expansion positions for up to two additional DC battery breakers and eight DC charge controller breakers.
- Simplified Wiring: Internal wiring is labeled and cut-to-length, using Arctic Ultraflex Blueâ„¢ wires for maximum durability and ease of connection.
- Included Accessories: Ships with a mounting backplate and a dedicated XW Conduit Box for a professional, flush-mount appearance with the inverter.
- Terminal Bus Bars: Integrated ground, neutral, and battery negative terminal bus bars simplify complex wiring configurations.
Technical Specifications:
| Product Number | 865-1015-01 |
| DC Breaker (Included) | 250A, 160 Vdc (GJ Type) |
| AC Breakers (Included) | Three 60A, 120/240 Vac, 2-Pole (Square D QOU) |
| Enclosure Rating | NEMA Type 1 (Indoor) |
| Dimensions (H x W x D) | 76.1 x 40.6 x 21.0 cm (30.0 × 16.0 × 8.3 in) |
| Shipping Weight | 30.5 kg (67.2 lb) |
Inverter Compatibility:
The 865-1015-01 is compatible with all Schneider Conext XW+, XW Pro, XW4024, XW4548, and XW6048 inverter/chargers. For systems with more than one inverter, additional connection kits (865-1020-02) are required for each extra unit.
Technical Tip: When installing multiple charge controllers, ensure you utilize the additional DC breaker slots provided in the PDP to keep your DC busbar clean and compliant with electrical codes.
