Schneider Conext SW DC Distribution Panel: Simplified DC Power Management

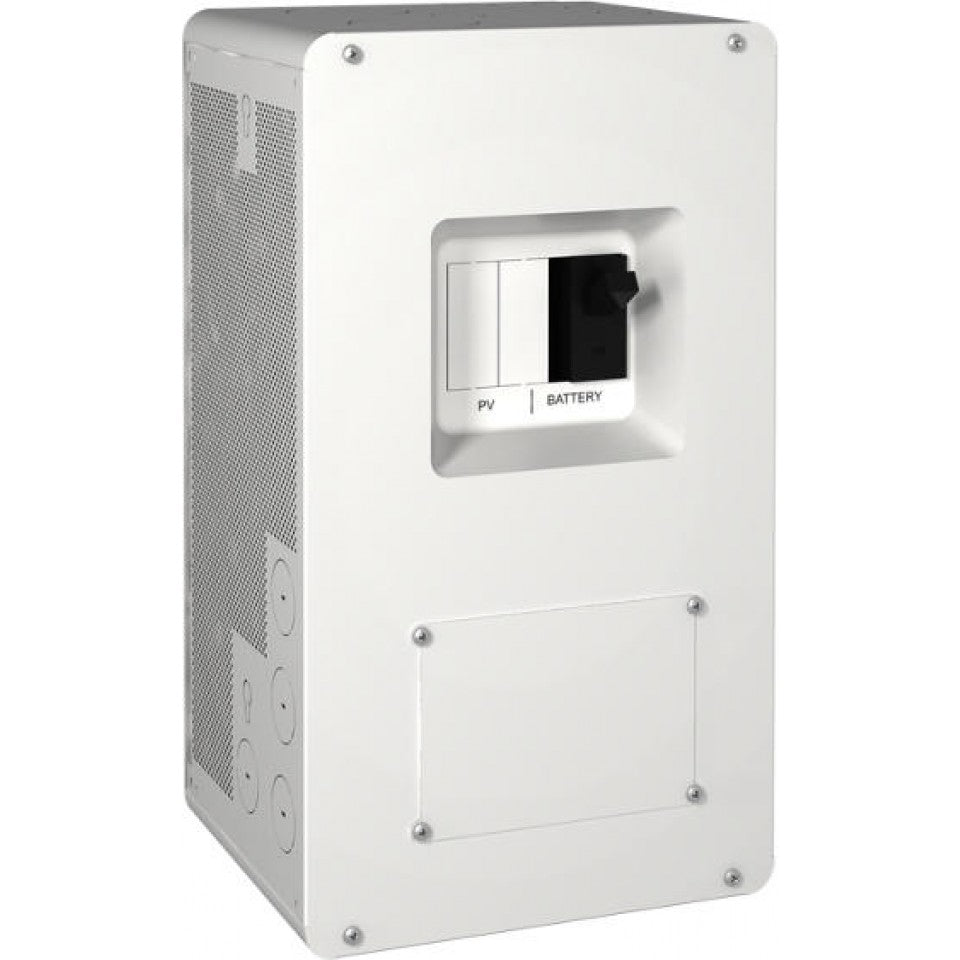

The Schneider Electric Conext SW DC Distribution Panel (865-1016) is a factory-integrated solution designed to eliminate the complexity of field-wiring your solar energy system. Engineered specifically for the Conext SW Inverter/Charger series, this panel provides a safe and professional interface between your battery bank, inverter, and charge controllers. By using pre-wired and labeled components, it ensures NEC-compliant installations while significantly reducing on-site labor time.

This "universal" DC panel comes ready for immediate use with a pre-installed 250A DC breaker, but it is built to grow with your energy needs. It features additional internal slots for up to two more DC breakers and specific mounting positions for the MPPT 60-150 Solar Charge Controller. The enclosure even includes a dedicated mounting space for the Conext System Control Panel (SCP), allowing for a clean, centralized command center.

Key System Benefits:

• Safe Inverter Disconnect: The heavy-duty 250A breaker provides a primary disconnect between the battery bank and inverter for safe maintenance.
• Optimized Charge Controller Integration: Designed for easy pairing with MPPT charge controllers, featuring pre-drilled keyholes for direct mounting.
• Dual Inverter Ready: For larger systems, two DC panels can be stacked to support a dual-stack Conext SW inverter configuration.
• Clean Wiring Management: Includes both positive and negative copper bus bars, significantly reducing the cable clutter in your power room.
• NEMA 1 Rated Durability: Housed in a robust, indoor-rated enclosure that provides physical protection for high-current components.

Technical Specifications:

Technical Tip: When using an MPPT 60-150 charge controller, mount it to the side of this panel to take advantage of the integrated wiring channels, keeping your high-current DC cables as short as possible for maximum efficiency.
