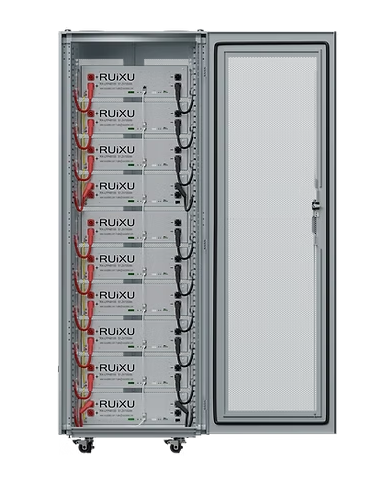

xRUIXU 50kWh Energy Storage Cabinet: 48V Professional Solar Battery Bank
The RUIXU 50kWh (51.2kWh) Cabinet is a premier, large-scale energy storage solution for residential whole-home backup and commercial off-grid solar systems. This pre-wired, high-performance cabinet houses ten 5.12kWh UL9540A certified lithium modules, providing a massive 1000Ah of total capacity. Engineered for reliability and ease of installation, this system provides the foundation for total energy independence and long-term power security.
Advanced Storage & Safety Features
- Elite Safety Certifications: Built with UL1973 and UL9540A certified cells, ensuring the highest level of fire safety and thermal stability for home and business environments.
- Industrial-Grade Scalability: The vertical cabinet design allows for a high-density footprint, providing 51.2kWh of storage while keeping your installation organized and professional.
- Smart BMS Integration: Each module features an intelligent Battery Management System that balances cells and provides comprehensive protection against over-current and thermal runaway.
- Universal Inverter Communication: Features RS485 and CAN ports for seamless communication with leading inverters such as Sol-Ark, Victron, and Growatt.
- 10-Year+ Design Life: High-density LiFePO4 chemistry supports over 6,000 cycles at 80% Depth of Discharge (DOD).
-
Communication with inverters:
Canbus : Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
RS485 : MPP, Voltronic, RCT, Alpha Outback
Technical Data & Performance Specifications
Download RUIXU RX-LFP48100 Datasheet (PDF)System Specifications (48V Configured)
| Nominal System Voltage | 51.2 Volts |
| Total Rated Capacity | 1000 Ah |
| Total Energy Content | 51.2 kWh |

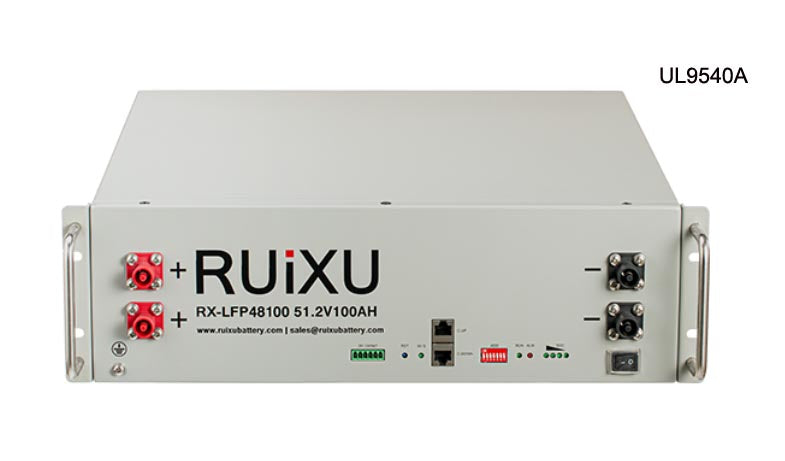

| Module Configuration | 10 x RX-LFP48100 5.12kWh battery |
| Max Continuous Discharge | 1000A (System Limited) |
| Cycle Life | >6000 Cycles @ 80% DOD |
Physical Dimensions & Cabinet Data
| Rack Standard | 19-Inch Vertical Cabinet |
| Ingress Protection | IP20 (Indoor/Unconditioned Space) |
| Communication Ports | RS485 / CAN |
| Individual Module Weight | 103.6 lbs (47 kg) |
Shipping
x
This product is oversized and not eligible for standard courier shipping. To ensure you receive the most competitive shipping rate, please provide your postal code along with the list of products and quantities you wish to order. We will then prepare a customized shipping quote for you.
