xRUIXU 30kWh Smart Energy Storage: 48V Self-Heating Lithium Cabinet

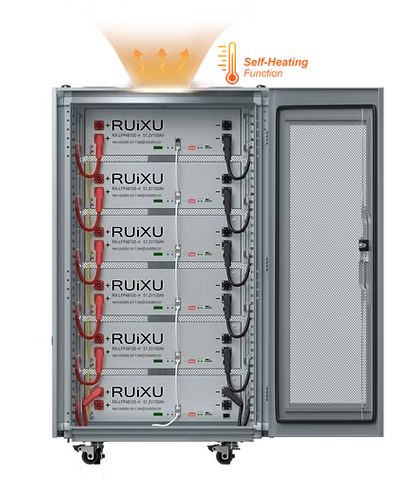

The RUIXU 30kWh (30.72kWh) Cabinet System is a professional-grade, mid-capacity energy storage solution designed for residential backup and off-grid solar applications. This pre-wired, high-performance cabinet includes six 5.12kWh UL9540A certified lithium modules, delivering a total of 600Ah of reliable power. Equipped with integrated self-heating technology, this system ensures consistent charging and peak performance even in unheated garages or cold-climate installations.
Advanced Storage Technology
- Internal Self-Heating System: Automatic thermal management allows the battery bank to charge safely in ambient temperatures as low as -20°C (-4°F).
- Elite Safety Certifications: Built with UL1973 and UL9540A certified cells, ensuring maximum fire safety and thermal stability for home energy storage.
- Efficient Form Factor: The pre-wired vertical cabinet saves floor space while providing a clean, organized, and professional installation.
- Smart BMS Communication: Fully compatible with leading 48V inverters, including Sol-Ark, Victron, Growatt, and more, via integrated CAN/RS485 ports.
- 6,000+ Deep Discharge Cycles: High-density LiFePO4 chemistry provides a decade-plus service life with 100% usable depth of discharge.
Technical Data & Performance Specifications
Download RUIXU Module Datasheet (PDF)System Specifications (48V Configured)
| Nominal System Voltage | 51.2 Volts |
| Total System Capacity | 600 Ah |
| Total Energy Content | 30.72 kWh |
| Module Configuration | 6 x 5.12kWh Rack Modules |
| Max Continuous Discharge | 300A - 600A (Inverter Dependent) |
| Cycle Life | >6000 Cycles @ 80% DOD |
Cabinet Dimensions & Physical Data
| Cabinet Form Factor | Standard 19-Inch Vertical Rack |
| Ingress Protection | IP20 (Indoor Rated) |
| Approximate Net Weight | ~680 lbs |
| Communication Ports | RS485 / CAN |
Shipping
x
This product is oversized and not eligible for standard courier shipping. To ensure you receive the most competitive shipping rate, please provide your postal code along with the list of products and quantities you wish to order. We will then prepare a customized shipping quote for you.
