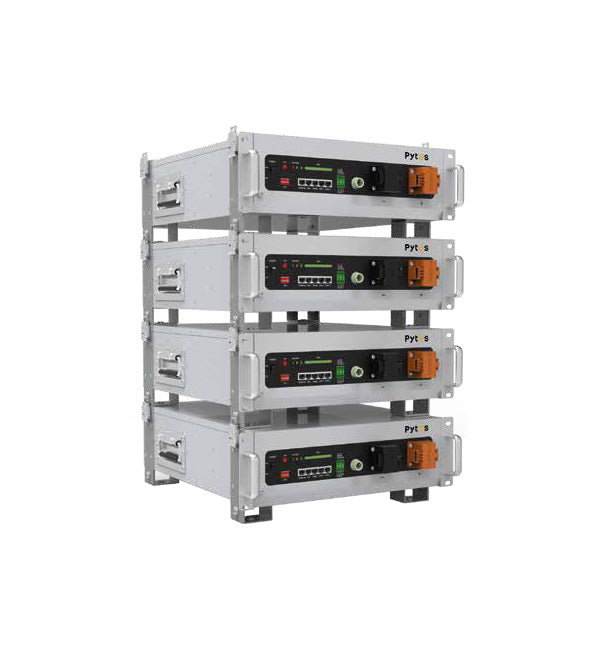

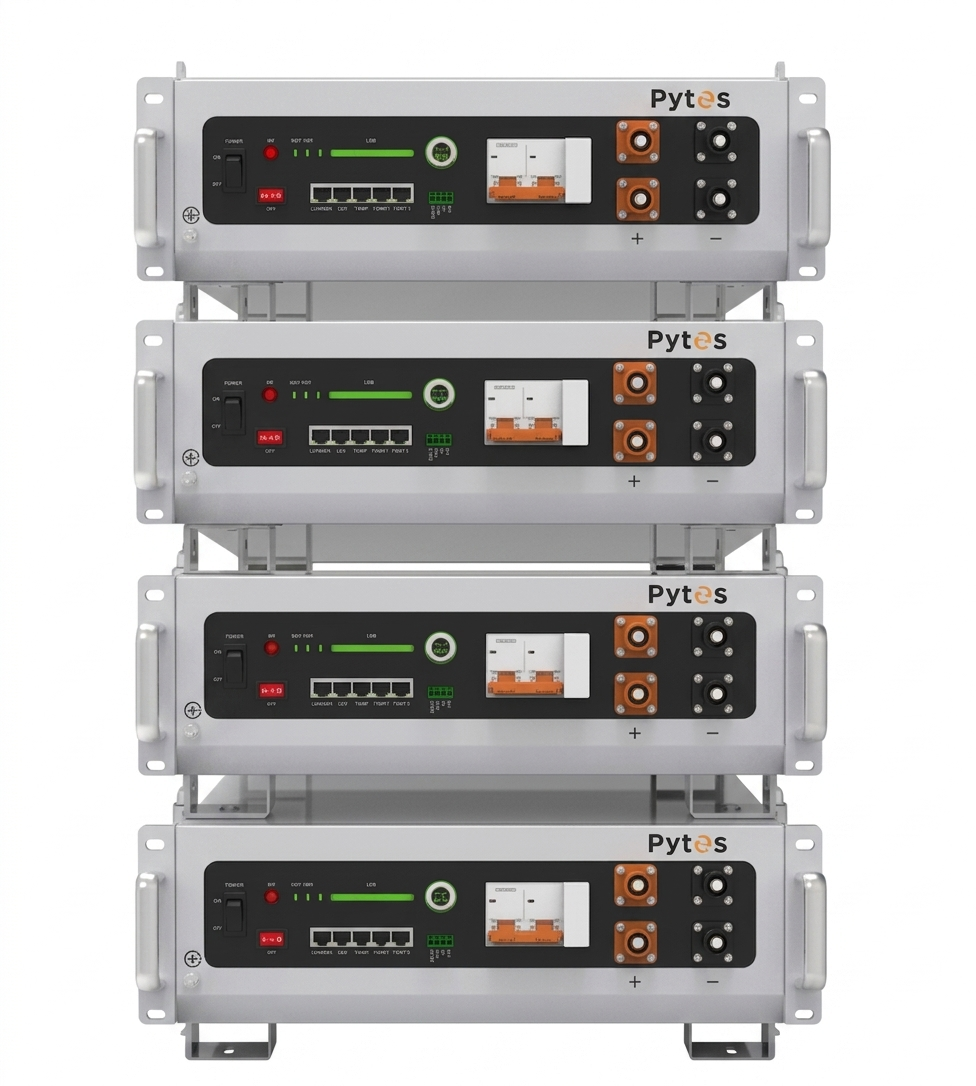

xPytes V5 Plus 20kWh Smart Energy Storage: 48V Self-Heating Cabinet System
The Pytes V5 Plus 20kWh (20.48kWh) Cabinet System is a premium, high-density energy storage solution designed for residential whole-home backup and off-grid solar. This pre-wired cabinet features four V5 Plus (PY-V5PLUS) modules, each equipped with built-in Wi-Fi for real-time monitoring and integrated self-heating technology for peak performance in cold climates. With UL9540A certification and a high-output 1C discharge rate, this system provides industrial-grade reliability in a sleek, space-saving enclosure.
Smart Technology & Cold Weather Reliability
- Built-in Wi-Fi Monitoring: Track your system's state of charge, voltage, and health directly through the Pytes mobile app—no external gateway required.
- Automatic Self-Heating: Internal heating elements allow the battery bank to charge safely and efficiently in ambient temperatures as low as -20°C (-4°F).
- High Discharge Capability (1C): Supports a continuous discharge of 100A per module (400A total), easily managing high-surge household loads like well pumps and HVAC units.
- Elite Safety Certifications: Fully certified to UL9540, UL9540A, and UL1973 standards, meeting the most rigorous fire safety codes for indoor installation.
- Universal Inverter Integration: Pre-programmed communication for Sol-Ark, Victron, Growatt, SMA, and Luxpower hybrid inverters.
Technical Data & Performance Specifications
Download Pytes V5 Plus Datasheet (PDF)System Specifications (48V Configured)
| Total Energy Capacity | 20.48 kWh |
| Nominal System Voltage | 51.2 Volts |
| Total Rated Capacity | 400 Ah |
| Module Configuration | 4 x V5 Plus (5.12kWh) Modules w/brackets |
| Continuous Discharge Rate | 400A (1.0C) |
| Cycle Life | >6,000 Cycles @ 90% DOD |
Cabinet & Connectivity Data
| Communication Ports | Built-in Wi-Fi, CAN, RS485 |
| Ingress Protection | IP20 (Indoor Rated) |
| Total System Weight | ~400 lbs (Approximate) |
| Certifications | UL9540A, UL9540, UL1973, CE |
Shipping
x
This product is oversized and not eligible for standard courier shipping. To ensure you receive the most competitive shipping rate, please provide your postal code along with the list of products and quantities you wish to order. We will then prepare a customized shipping quote for you.
