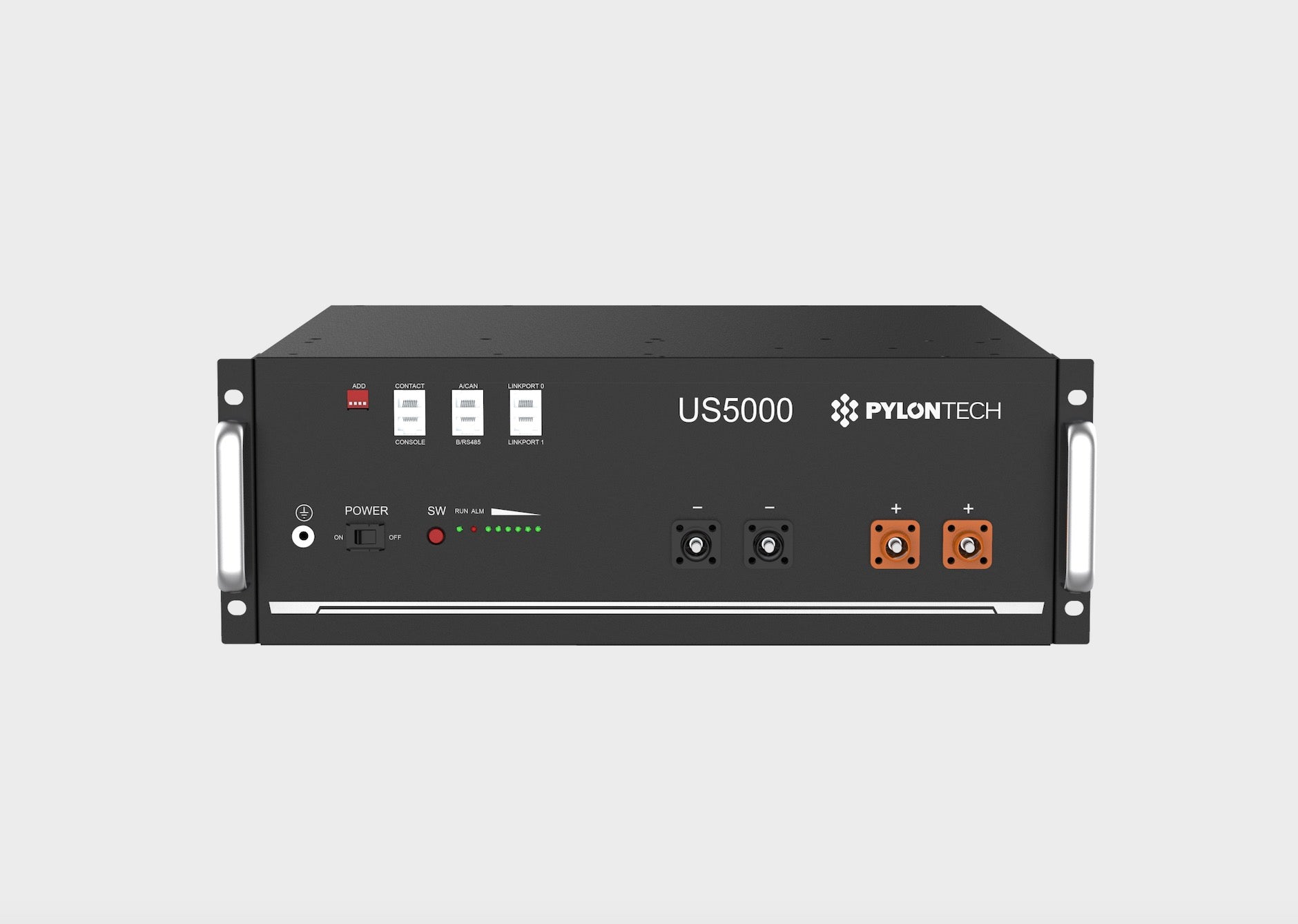

xPylontech US5000: 4.8kWh Smart 48V LiFePO4 Battery
The Pylontech US5000 is the latest 48V (51.2V) lithium battery module in the globally acclaimed US series. With a high-capacity 4.8kWh energy rating and a compact server rack form factor, it offers exceptional power density for residential solar storage. Designed for 95% Depth of Discharge (DOD) and featuring an advanced internal BMS, the US5000 is the ultimate building block for reliable, long-lasting energy independence.
Key Performance Features
- High Usable Energy: Boasts a 95% DOD, allowing you to use more of your stored energy compared to standard lithium batteries.

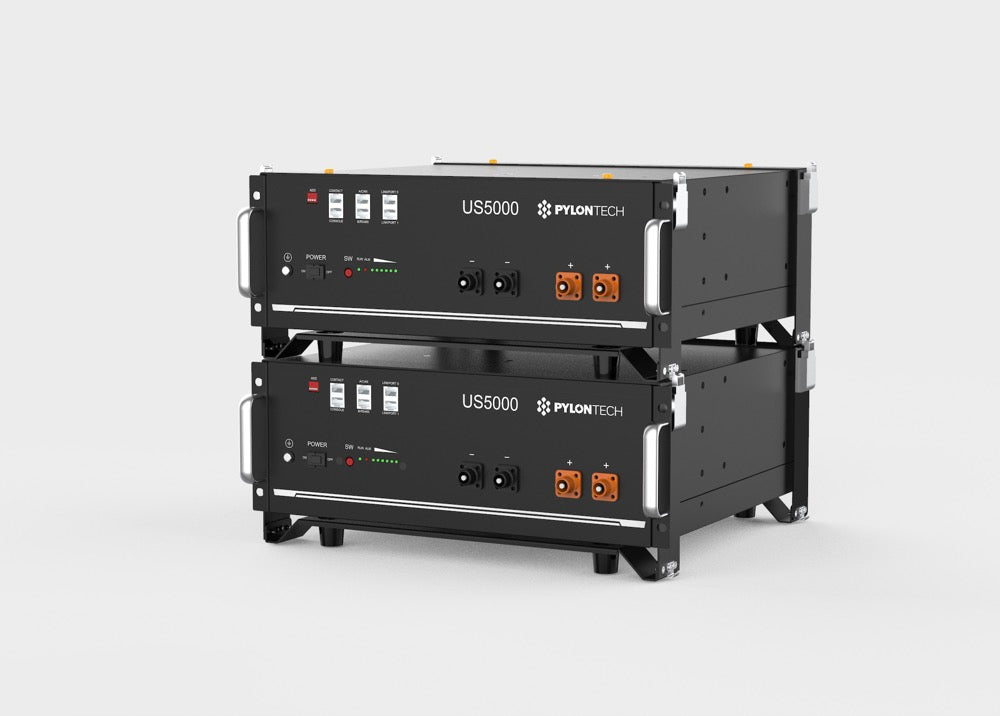

- Smart Modular Design: Easy-to-install "plug and play" system that supports parallel scaling of up to 16 units per string.
- Advanced BMS Protection: Internal Battery Management System monitors cell voltage, current, and temperature to ensure maximum safety and efficiency.
- Universal Compatibility: Fully compatible with leading hybrid inverters including Victron Energy, Sol-Ark, Growatt, and Phocos.
- Superior Longevity: Rated for over 6,000 cycles, providing a decade-plus of reliable service in daily cycling applications.
Technical Data & Performance Specifications
Download Pylontech US5000 Datasheet (PDF)Technical Specifications
| Nominal Voltage | 48 Volts |
| Nominal Capacity | 100 Ah |
| Total Energy | 4800 Wh (4.8 kWh) |
| Depth of Discharge (DOD) | 95% |
| Communication Ports | RS485, CAN |
| Design Life | 15+ Years (25°C) |
Physical Dimensions & Weight
| Dimensions (W x D x H) | 442 x 420 x 161 mm |
| Approximate Weight | 39.7 kg (87 lbs) |
| Protection Class | IP20 |
| Certification | UL1973 / IEC62619 / CE |
