xPylontech 24V 100Ah Smart Lithium System (Series Kit)

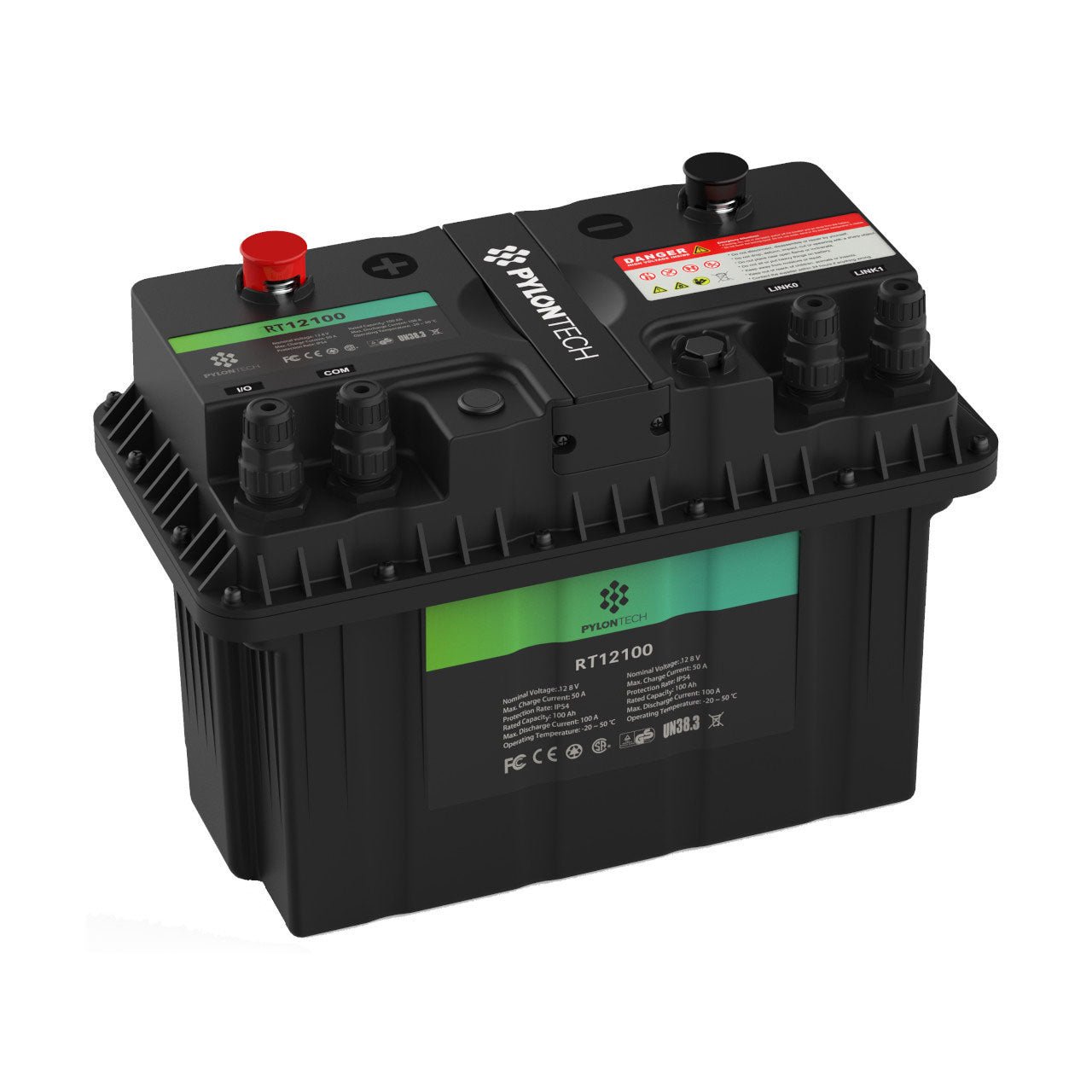

Power your 24-volt system with the advanced Pylontech 24V 100Ah LiFePO4 Kit. This system consists of two RT12100G31 batteries connected in series to provide a robust 24V 100Ah (2.56kWh) power bank. Designed for cold-weather performance, each battery features integrated self-heating technology, allowing the bank to charge safely in temperatures as low as -20°C (-4°F). This is the ultimate upgrade for 24V trolling motors, RV house banks, and off-grid solar arrays.
Series Kit Advantages
- Smart Self-Heating: Automatic heating film ensures your lithium bank remains functional in extreme winter conditions—no more "cold-charge" anxiety.
- Industrial Scalability: The RT-Series supports series connection up to 48V and parallel connection up to 16 units, allowing your 24V system to expand as your needs grow.
- Master-Slave Communication: Integrated CAN and RS485 ports allow the batteries to communicate with each other and your inverter for perfectly balanced charging.
- IP67 Waterproof Protection: Fully sealed, ruggedized construction makes this 24V bank ideal for marine use and exterior battery compartments.
- 6,000+ Cycle Life: Provides 10x the lifespan of traditional lead-acid batteries with 100% usable depth of discharge (DOD).
Technical Data & Performance Specifications
Download Pylontech RT12100G31 Datasheet (PDF)System Specifications (24V Configured)
| Nominal System Voltage | 25.6 Volts |
| Total Rated Capacity | 100 Ah |
| Total Energy Content | 2560 Wh (2.56 kWh) |
| Configuration | 2 x RT12100G31 in Series (2S1P) |
| Individual Battery Weight | 28.6 lbs (13 kg) |
| System Cycle Life | >6000 Cycles @ 80% DOD |
Dimensions (Per Battery)
| BCI Group Size | Group 31 |
| Length | 12.95 in (329 mm) |
| Width | 6.77 in (172 mm) |
| Height | 8.43 in (214 mm) |
