Product Introduction

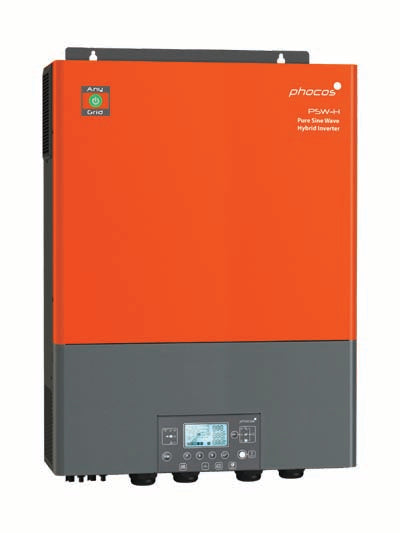

The Phocos Any-GridTM PSW-H Inverter Charger Series (Pure Sine Wave Hybrid) represents Phocos’ most versatile line of inverters/chargers. Flexibility and reliability are key characteristics of this product line, with a strong potential for cost saving opportunities in real world conditions. The Any-Grid PSW-H converts DC (Direct Current) energy into AC (Alternating Current), with multiple antages beyond standard inverters. This product includes an integrated MPPT charge controller and can function as an AC to DC battery charger, which provides flexible energy access solutions in a broad range of applications.
The battery can be charged from solar and/or an AC source (public grid or generator), with easily programmable priorities. The Any-Grid PSW-H can function without an AC source or alternatively even without solar, as a pure uninterruptible power supply (UPS). When the utility grid or AC generator fails, the Any-Grid PSW-H immediately switches to ‘Off-Grid’ mode within 10 ms (typical, in UPS mode) to securely power the loads at all times. Solar can be set as the priority energy source to save electricity costs.
The Any-Grid PSW-H can function in a battery-free mode. In this mode, for installations with stable public grids, grid energy consumption can be reduced without the need to invest in a costly battery bank. Additionally, power can be supplied directly to loads from the grid and solar simultaneously.
This unit comes with one to two quality, integrated MPPT charge controller(s). The controller(s) accept(s) particularly high PV voltages, allowing many PV modules to be connected in series, decreasing installation cost and avoiding combiner boxes. Up to 9 inverters can be connected parallel, 3-phase or split-phase for up to 72 kW of synchronized AC power.
Product Feature
- Flexible, advanced features with options to solve many common challenges in the field
- Integrated high-voltage MPPT charge controller(s). The high-voltage PV connection means in most scenarios the PV modules can simply be connected in series of one or two strings, avoiding costly combiner boxes and string fuses or diodes, thus reducing total system cost
- Integrated AC battery charger
- Charge controller(s) function(s) even if inverter is turned off to keep batteries fully charged
- Compatible with Lithium batteries
- Functions even without an expensive battery to reduce energy consumption from the grid with minimal investment
- Detachable display / communication unit with 6 LEDs and an intuitive
- LCD screen
- High level of connectivity: BLE, USB-OTG (on-the-go), CAN Bus, RS-485, RS-232, relay for generator start
- Datalogger with up to 60 days of data storage
- Compatible with Phocos Any-Bridgeâ„¢ AB-PLC and PhocosLink Cloud for remote monitoring & control
- Integrated buzzer for button feedback and error indications
- Galvanic isolation of battery allows positive or negative grounding of the same
- Up to 9 inverters can be connected in parallel, 3-phase or split-phase for up to 72 kW of synchronized AC power
- Washable filter reduces dust buildup in the inverter
- Grid feed-in option is code-protected to avoid accidental feed-in
| Feature | PSW-H-6.5KW-120/48V |
|---|---|
| Output Waveform | Pure Sine Wave |
| System Voltage | 48 Vdc |
| Rated AC Output Power | 6500 VA / 6500 W |
| Max. Charge Current (PV) | 120 Adc |
| Max. Charge Current (AC) | 120 Adc |
| Max. Total Charge Current | 120 Adc |
| Max. AC Input Current | 60 Aac |
| Float Charge | 55.2 Vdc (adjustable) |
| Boost Charge | 57.6 Vdc (adjustable) |
| Equalization Charge | 59.2 Vdc (adjustable) |
| Deep-Discharge Protection | 44 Vdc (adjustable) |
| Reconnect Level | 54.7 Vdc (adjustable) |
| Overvoltage Protection | 66 Vdc |
| Undervoltage Protection | 37.5 Vdc |
| Battery Discharge Current Requirement | 154 Adc continuous 308 Adc surge (5s) |
| Max. PV Panel Voltage | 250 Vdc x 2 MPPTs |
| PV Panel MPP Voltage | 90 ~ 230 Vdc x 2 MPPTs |
| Max. Usable PV Current | 22 Adc x 2 MPPTs, 36 Adc total |
| Max. Usable PV Power | 4000 W x 2 MPPTs |
| Max. PV Array Power | 5000 Wp x 2 MPPTs |
| AC Frequency | 50 / 60 Hz auto recognition |
| AC Output Voltage | 110 ~ 127 Vac ± 5% (adjustable) |
| Surge Power | 2x rated power for 5 seconds |
| Extensibility | Up to 9 units in parallel, 3-phase or split-phase |
| Inverter Efficiency (from Battery) | > 92 % peak |
| Inverter Efficiency (from PV) | > 97 % peak |
| Idle Self-Consumption | < 75 W on |
| Grounding | Galvanically isolated battery allows positive or negative battery grounding |
| Ambient Temperature | -10 to +50 °C / +14 to +122 °F |
| Storage Temperature & Humidity | -15 to +60 °C / +5 to +140 °F, 5-95 % (non-condensing) |
| Transfer time between grid mode and off-grid mode and vice versa | 10ms typical when in UPS mode, 20ms typical when in APL mode, up to 50ms when using multiple synchronized Any-Grids |
| Max. Altitude | 4,000 m above sea level, 1 % power de-rating per 100m above 1,000 m above sea level |
| Battery Type | Lead acid (gel, AGM, flooded), Lithium |
| Datalogger | 60 days |
| Max. Wire Cross Section | Battery: 50 mm² (AWG 0), PV: 16 mm² (AWG 4), AC: 10 mm² (AWG 7) |
| Dimensions (WxHxD) | 478 x 309 x 143 mm / 18.8 x 12.2 x 5.6 in |
| Weight | 18 kg / 40 lbs |
| Ingress Protection | IP21 |
| Certificates | UL1741, CSA C22.2 No. 107.1-16, FCC Class A, RoHS compliant |
| Warranty | 3 years |
