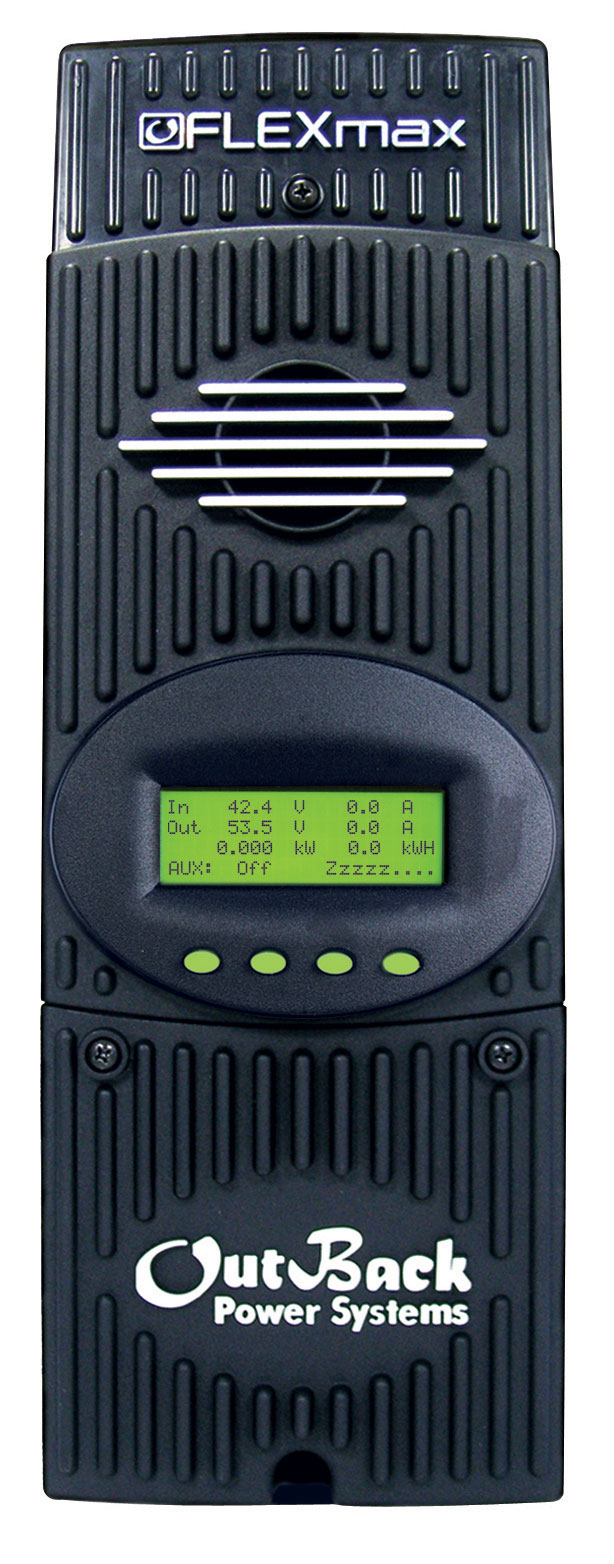

xOutBack Power FLEXmax 80 (FM80) 80A MPPT Solar Charge Controller
The OutBack Power FLEXmax 80 (FM80) is the industry-leading innovation in Maximum Power Point Tracking (MPPT) charge controllers. Its advanced continuous MPPT algorithm increases your photovoltaic array power yield by up to 30% compared to non-MPPT controllers, while its active cooling system allows for a full 80-amp output in temperatures up to 104°F (40°C).
Top Performance Features
- Increased Yield: Enhances PV array output by up to 30%.
- Intelligent Thermal Management: Delivers full 80 Amps of output in ambient temperatures up to 104°F (40°C).
- Advanced Data Logging: Built-in 128 days of system performance data logging.
- Network Integrated: Fully compatible with the OutBack MATE system for remote monitoring.
- Programmable AUX Output: 12VDC signal for controlling external system components.
Technical Specifications
| Nominal Battery Voltages | 12, 24, 36, 48, or 60 VDC (Field-selectable) |
| Maximum Output Current | 80 Amps @ 104°F (40°C) |
| PV Open Circuit Voltage (VOC) | 150VDC Absolute Maximum |
| Peak Efficiency | 98.44% (Typical 97.5%) |
| Certifications | ETL Listed to UL1741, CSA C22.2 No. 107.1 |
NEC Recommended Solar Maximum Array (STC Nameplate)
To comply with NEC standards, OutBack Power recommends the following maximum solar array sizes for the FLEXmax 80:
| System Voltage | Recommended Max Wattage |
|---|---|
| 12 VDC Systems | 1000 Watts |
| 24 VDC Systems | 2000 Watts |
| 48 VDC Systems | 4000 Watts |
| 60 VDC Systems | 5000 Watts |
Installer Note: The FLEXmax 80 is the top choice for high-performance, efficient, and versatile solar power systems. Standard 5-year warranty included.
