Description

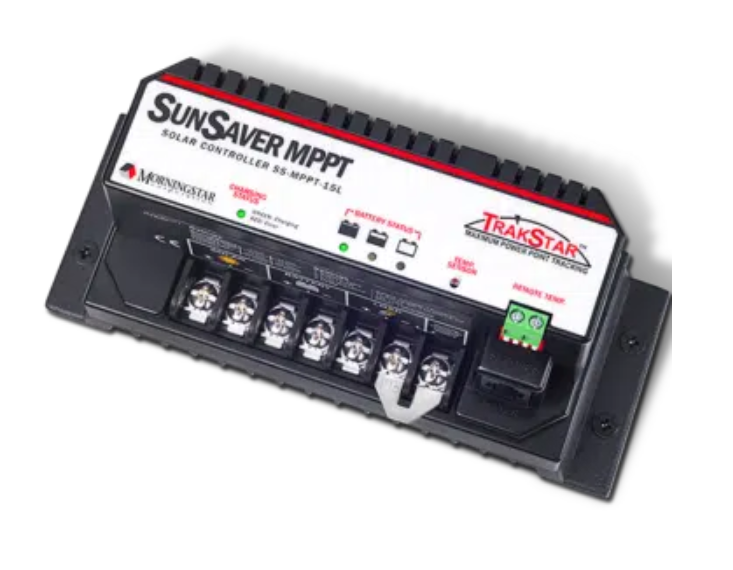

xMorningstar SunSaver MPPT-15L: Industrial 15A Solar Charge Controller
The Morningstar SunSaver MPPT-15L (SS-MPPT-15L) with TrakStarâ„¢ Technology is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems. Designed for industrial and mission-critical applications, this 15-amp controller maximizes energy harvest from the solar array while providing unparalleled reliability in harsh environments.
Technical Specifications & Documentation
Click here to open the SunSaver MPPT-15L DatasheetProven Reliability & High Efficiency
- TrakStar MPPT Technology: Tracks the maximum power point of the solar array with high speed and accuracy, increasing energy harvest by up to 30% compared to standard PWM controllers.
- Voltage Flexibility: Automatically recognizes 12V or 24V battery systems. It also allows for high-voltage solar modules (up to 75Voc) to charge low-voltage batteries.
- Industrial Design: Features a fanless design with a robust die-cast aluminum enclosure, making it ideal for marine, oil and gas, and telecommunications sites.
- Four-Stage Charging: Advanced algorithms including Bulk, Absorption, Float, and Equalize to prolong battery life and improve system performance.
- Low Self-Consumption: Extremely efficient operation with less than 35mA power draw, ensuring your battery stays charged even in low-sun conditions.
Maximum Recommended PV Input Power
The SunSaver MPPT-15L supports a wide range of panels for smaller off-grid systems:
| 12V Battery System | 200 Watts |
| 24V Battery System | 400 Watts |
| Max. PV Open Circuit Voltage | 75 Volts |
Electrical Specifications
| Rated Battery Current | 15 Amps |
| Rated Load Current | 15 Amps |
| Peak Efficiency | 97.5% |
| Operating Temperature | -40°C to +60°C |
| Environmental Rating | IP20 (Encapsulated Electronics) |
| Warranty | 5 Years Limited |
