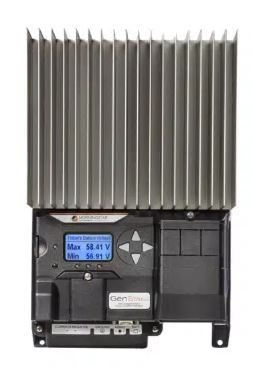

xMorningstar GenStar MPPT-100: The Future of DC System Control

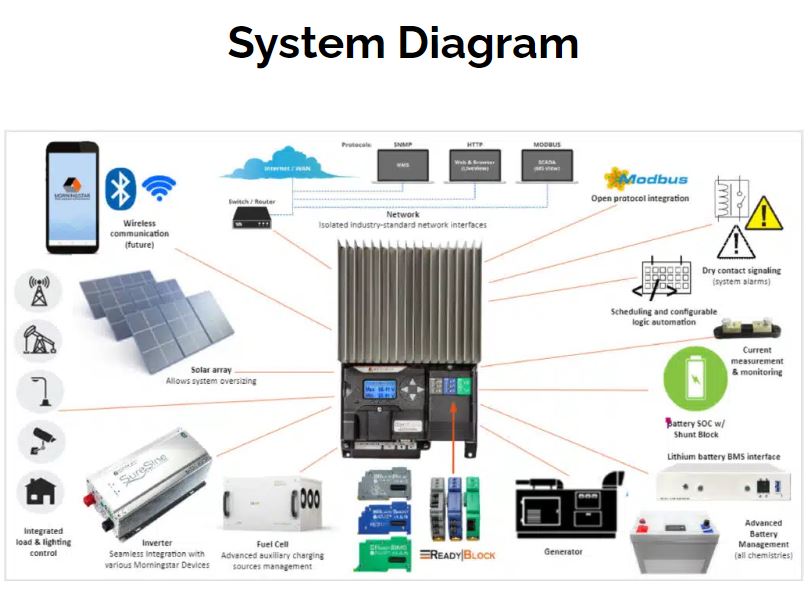

The Morningstar GenStar MPPT-100 (GS-MPPT-100M-200V) is the industry's first truly "future-proof" 100-amp charge controller. Part of the new Integrated Series, it combines 99% peak efficiency with the innovative ReadyRail™ expansion system. Designed with "Lithium in its DNA," the GenStar supports advanced communication with battery banks while offering a built-in 30A load controller—a feature unique in this power class.
Technical Specifications & Documentation
Click here to open the GenStar MPPT-100 (GS-MPPT-100M-200V) DatasheetIndustry-Leading Features & Expansion
- ReadyRailâ„¢ Expansion: Snap-in ReadyBlocks (sold separately) to add BMS communication, Shunt metering, or Relay signaling without external wiring.
- High-Voltage Input: 200V Voc limit allows for larger, more efficient solar arrays.
- Lithium Ready: Featuring cold-weather "fold-back" circuitry to protect lithium batteries from charging damage in extreme temperatures.
- Advanced Connectivity: Built-in Ethernet, Wi-Fi, Bluetooth, and RS-485. Includes the LiveView 2.0 web interface for local or remote monitoring.
- 30A Load Control: Integrated load terminals for direct DC appliance control, programmable through the digital interface.
Maximum Power Ratings (100A Output)
| 12V Battery System | 1350W Nominal / 2000W Max PV Input |
| 24V Battery System | 2700W Nominal / 4000W Max PV Input |
| 48V Battery System | 5400W Nominal / 8000W Max PV Input |
Technical Specifications
| Max. PV Open Circuit Voltage | 200 Volts |
| Peak Efficiency | 99% |
| Integrated Load Control | 30 Amps |
| Self-Consumption | < 3 Watts |
| Warranty | 5 Years |
