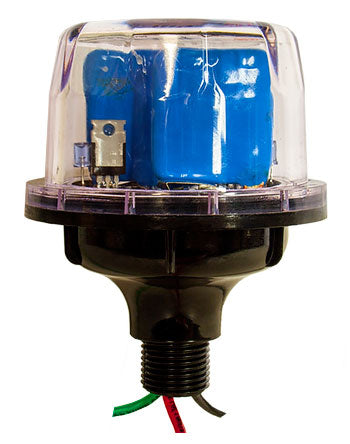

xMidNite Solar MNSPD-600 600V Surge Protection Device (SPD)
The MidNite Solar MNSPD-600 is a heavy-duty, Type 1 UL1449 Listed 600V surge protective device designed to safeguard grid-tie PV combiners, string inverters, service panels, and high-voltage DC/AC solar circuits from lightning strikes and high-voltage transients. Encased in an outdoor-rated NEMA 4X enclosure, the MNSPD-600 provides critical protection for renewable energy infrastructure.
Key Features & Performance Highlights
- UL1449 Rev 3 Type 1 Listed: Approved for installation on both the line side and load side of main service panels, combiners, and breaker boxes.
- High Voltage AC/DC Versatility: Engineered to clamp voltage spikes on high-voltage DC solar strings and 3-phase AC power circuits up to 600V.
- Dual Blue LED Status Indicators: Built-in LED lights provide instant visual confirmation that protection is active on each side of the unit.
- NEMA 4X Weatherproof Enclosure: Durable outdoor-rated housing ensures long-term protection against harsh rain, snow, dust, and UV exposure.
- Ultra-Fast Response Time: Clamps high-voltage surges and diverts excess current to ground in less than 1 nanosecond.
- Standard Knockout Mounting: Easily installs into standard 1/2-inch conduit knockouts on MidNite MNPV combiners, e-panels, or third-party electrical boxes.
Technical Specifications
| Specification Parameter | Details |
|---|---|
| Manufacturer | MidNite Solar Inc. |
| Model / Part Number | MNSPD-600 |
| Max Operating Voltage (MCOV) | 600 V AC / 600 V DC |
| Device Classification | Type 1 Surge Protection Device (SPD) |
| Enclosure Protection Rating | NEMA 4X / IP66 (Outdoor & Indoor Rated) |
| Status Indicator | Dual Blue LEDs (Lit = Active Protection) |
| Mounting Interface | 1/2-inch NPT Threaded Nipple |
| Safety Certification | UL1449 Revision 3, CSA C22.2 |
Ideal Applications
Grid-Tie Solar PV Combiner Boxes High-Voltage String Inverters
AC Main Service & Load Panels
AC Main Service & Load Panels
