Description

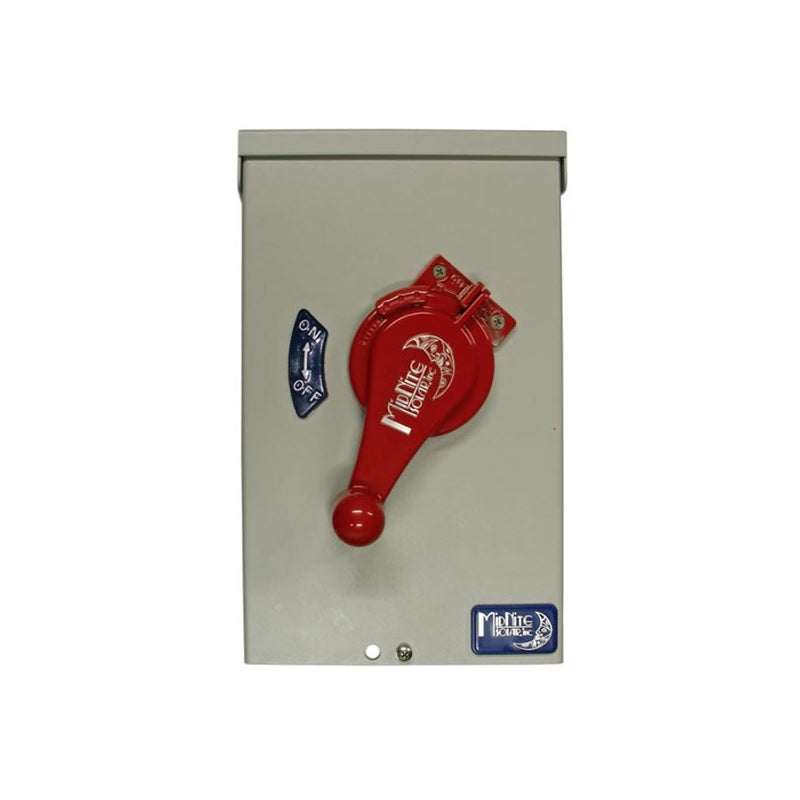

xMidNite Solar MNPV6-Disco: Load-Break Disconnecting Combiner Enclosure
⚠️ PLEASE NOTE: This is an ENCLOSURE ONLY. It does not include breakers. This model is NOT compatible with the MidNite Birdhouse system.
The MidNite MNPV6-Disco is one of the most versatile disconnecting PV combiners in the industry. ETL listed for both AC and DC applications, this enclosure allows you to combine and disconnect multiple strings simultaneously using a single, load-break rated red handle that is lockable in the OFF position for ultimate site safety.
Unmatched System Flexibility
The MNPV6-Disco supports a wide range of configurations to fit your specific project:
- High-Voltage DC: Supports up to (3) 600VDC breakers for grid-tie disconnects.
- Standard DC: Supports up to (6) 300VDC breakers for off-grid string combining.
- AC Applications: Compatible with 120/240VAC breakers for micro-inverter combining.
- Mixed Use: Unique ability to house both DC PV input and AC inverter output disconnects in the same enclosure.
Recommended Breakers
- MidNite MNEPV Breakers (150VDC)
- MidNite 300VDC Breakers
- Compatible with MidNite 600VDC and 120/240VAC Din-Rail breakers.
Technical Specifications
| Model Number | MNPV6-Disco |
| Environmental Rating | Type 3R (Outdoor Rainproof) |
| Enclosure Material | Gray Aluminum (Rust-Proof) |
| Dimensions | 13.2"L x 8"W x 6.2"D |
| Certifications | ETL Listed for US & Canada |
| Warranty | 5 Years |
