xMidNite Solar MNPV12-250: 600VDC High-Voltage Combiner Enclosure
⚠️ TECHNICAL NOTE: This is an ENCLOSURE ONLY. Designed for high-voltage charge controllers. 600VDC breakers/fuse holders are sold separately.
The MidNite MNPV12-250 is a specialized, professional-grade PV combiner enclosure specifically designed for high-voltage charge controllers. Engineered with a rust-proof gray aluminum Type 3R rainproof housing, it provides superior environmental protection for large residential and commercial off-grid arrays.
Advanced Internal Power Distribution

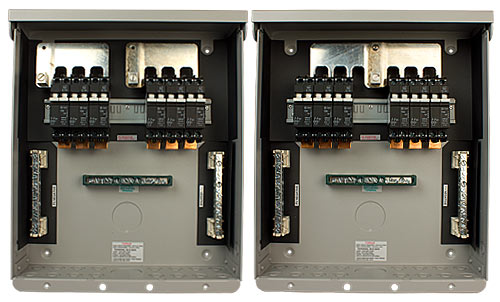

- High Voltage Capacity: Specifically designed to accept up to six 600VDC breakers or fuse holders.
- Dual Controller Support: Features a 168-amp Plus bus bar that can be combined for a single large array or separated to support two independent high-voltage charge controllers.
- Superior Grounding: Includes two 15-position PV negative bus bars and one 15-position ground bus bar for clean, organized wiring.

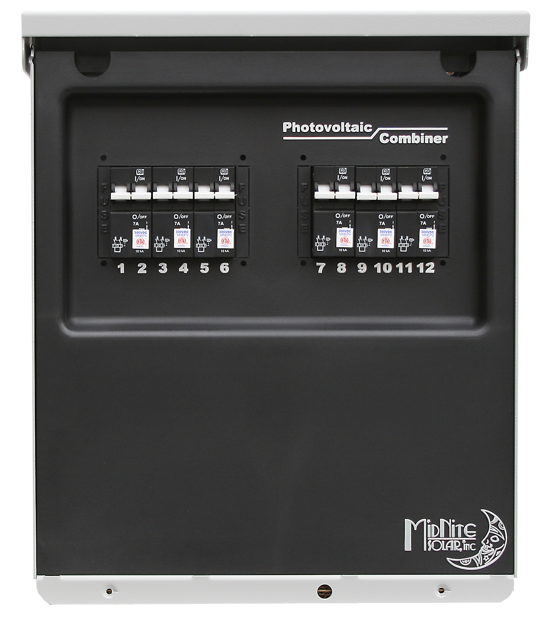

- Safety Insulated: Equipped with an insulating dead-front cover to protect users from live DC components.
- American Quality: Made in the USA and ETL listed for the United States and Canada.
Product Dimensions & Specs
| Model Number | MNPV12-250 |
| Enclosure Dimensions | 14.5"L x 12"W x 3.5"D |
| Breaker Capacity | Up to 6 (600VDC Rated) |
| Bus Bar Rating | 168 Amps |
| Environmental Rating | Type 3R (Rainproof) |
