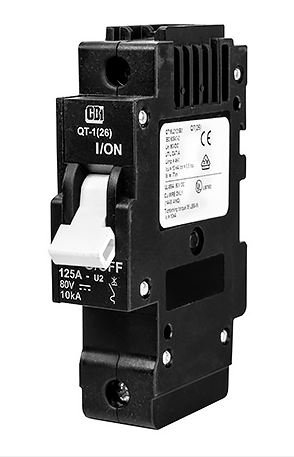

MidNite Solar 125A 80VDC Circuit Breaker Front View
MidNite Solar 125A 80VDC Circuit Breaker Front View

MidNite Solar 125A 80VDC 1-Pole Non-Polarized DIN Rail Mount Circuit Breaker (MNEPV125-80-1PNP)

MidNite Solar 125A 80VDC Circuit Breaker - MNEPV125-80-1PNP (CSA Listed) Protect your critical DC circuits with the...
Vendor: Midnite Solar
SKU: MNEPV125-80-1PNP
Availability: Many In Stock
$100.00
$100.00
Subtotal: $100.00
MidNite Solar 125A 80VDC Circuit Breaker Front View

MidNite Solar 125A 80VDC 1-Pole Non-Polarized DIN Rail Mount Circuit Breaker (MNEPV125-80-1PNP)

$100.00
MidNite Solar 125A 80VDC Circuit Breaker Front View

MidNite Solar 125A 80VDC 1-Pole Non-Polarized DIN Rail Mount Circuit Breaker (MNEPV125-80-1PNP)

$100.00
Description
Description
x

MidNite Solar 125A 80VDC Circuit Breaker - MNEPV125-80-1PNP (CSA Listed)

Protect your critical DC circuits with the MidNite Solar 125A 80VDC Miniature Circuit Breaker. Specifically engineered for battery-based solar systems, telecom, and industrial applications, this high-performance breaker ensures reliable overcurrent protection for 80Vdc systems.

Key Features & Benefits

  • Dual Mount Design: Compatible with both DIN and Mini rail mounting systems for maximum installation flexibility.
  • Hydraulic-Magnetic Technology: Provides stable tripping characteristics that are independent of ambient temperatures (-40°C to +85°C).
  • CSA & UL Listed: Listed for use in both the US (UL 489A) and Canada (CSA).
  • High Durability: Rated to break the full load at maximum voltage repeatedly without damage, featuring a 10,000-cycle mechanical endurance.
  • Rapid Shutdown Compatible: Features remote trip capability for integration with MidNite Solar's Battery Disconnect Modules and Rapid Shutdown systems.

Technical Specifications

Current Rating 125 Amps
Voltage Rating 80 VDC (Max 150VDC evaluated)
Number of Poles 1 Pole (26mm width)
Wire Range 14 to 1/0 AWG
Torque Value 35 In-Lbs (4NM)
Certifications UL 489A, CSA, CE, UKCA

Why Choose MidNite Solar?

MidNite Solar is a leader in renewable energy electrical components. All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure, ensuring your solar or backup power system operates at peak efficiency.

Manufacturer Part Number (MPN): MNEPV125-80-1PNP | Warranty: 5 Years
