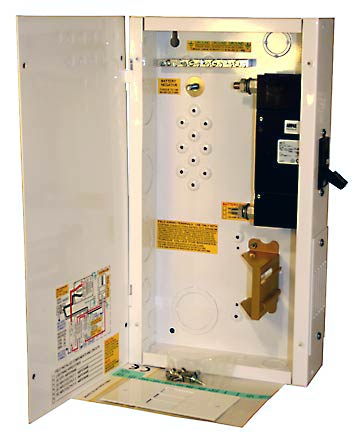

xMidNite Solar MNDC250: 250A Mini DC Disconnect Power Center
The MidNite Solar MNDC250 is the industrial standard for protecting large battery-based inverter systems. Designed as a high-capacity Mini DC Disconnect, it includes a factory-installed 250A/125VDC main battery breaker. This all-in-one chassis provides the necessary overcurrent protection and safety disconnection required by code for high-output off-grid and backup power installations.
Comprehensive DC Distribution
The MNDC250 is more than just a disconnect; it is a scalable power distribution hub for your battery bank:
- Versatile Expansion: Includes DIN-rail space for up to (5) additional 13mm breakers (ideal for charge controllers or DC branch circuits).
- Large Circuit Support: Features (3) panel-mount slots for 3/4" breakers ranging from 60A to 100A.
- Superior Materials: Constructed from white powder-coated aluminum, ensuring the chassis is 100% rust-proof even in high-humidity or coastal environments.
- Monitoring Ready: Pre-drilled mounting holes for a 500-amp, 50mV shunt (sold separately) to enable precise battery monitoring.
- Professional Grounding: Equipped with a 14-pole ground bus bar and a heavy-duty 5/16” bonding stud for battery negatives.
Technical Specifications
| Main Breaker | 250A / 125VDC (Included) |
| Max Voltage Rating | 300VDC |
| Chassis Material | Aluminum (Rust-Proof) |
| Dimensions | 17"L x 9"W x 4"D |
| Environmental | Type 1 Indoor |
| Certifications | ETL Listed for USA & Canada |
Inverter Compatibility
The MNDC250 is perfectly matched for use with 4000W to 6000W inverters that require a 250A DC breaker.
