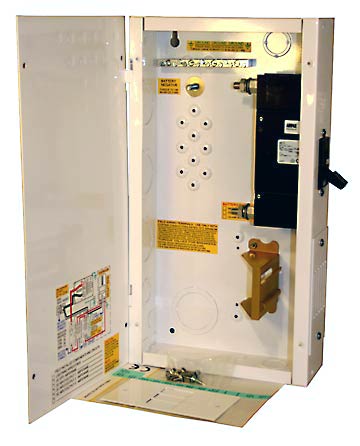

xMidNite Solar MNDC175: 175A Mini DC Disconnect & Power Center
The MidNite Solar MNDC175 is the industry-leading solution for small to medium-sized inverter installations. This compact, white aluminum power center includes a factory-installed 175A/125VDC main battery breaker, providing a safe and NEC-compliant way to disconnect your battery bank while offering a centralized hub for your entire DC system.
Simplified System Management
Designed for more than just a main disconnect, the MNDC175 chassis serves as a complete distribution box for your off-grid or backup power system:
- Ample Expansion Space: Features (5) additional 13mm DIN-rail slots for charge controller breakers, PV inputs, or DC load circuits.
- Panel Mount Ready: Includes (3) slots for 3/4" panel-mount breakers (60A–100A), perfect for larger DC branch circuits.
- Corrosion-Resistant Chassis: Constructed from powder-coated aluminum, making it rust-proof and ideal for marine, coastal, or tropical environments.
- Integrated Grounding & Shunt Mounting: Includes a 14-pole ground bus bar and pre-drilled mounting locations for a 500-amp shunt (sold separately).
- Safe Maintenance: The hinged door provides easy access to all internal wiring and circuit protection without needing to remove the entire cover.
Technical Specifications
| Main Breaker | 175A / 125VDC (Included) |
| Max System DC Voltage | 300VDC |
| Enclosure Rating | Type 1 Indoor (Aluminum) |
| Dimensions | 17"L x 9"W x 4"D |
| Weight | 7 lbs |
| Warranty | 5 Years |
| Certifications | ETL Listed for US & Canada |
Common Compatibility
The MNDC175 is a favorite for installers using Magnum, Victron, or Samlex inverters that require a 175A overcurrent protection device (OCPD).
