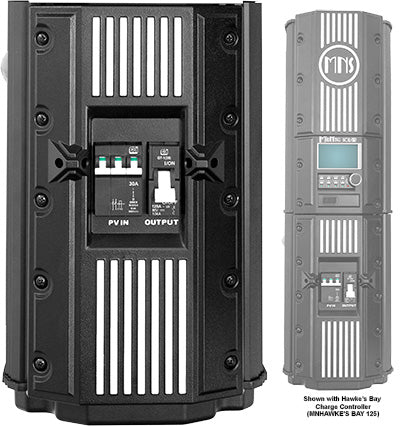

xMidNite Solar Hawke’s Bay BB 125: Professional Breaker Enclosure
The MidNite Solar Hawke’s Bay BB 125 (MNHAWKE’S BAY BB 125) is the essential companion for your Hawke's Bay 90 or 120 charge controller. This die-cast aluminum breaker box provides integrated overcurrent protection and a safe disconnect point for both your solar array and battery bank. Powder-coated to perfectly match the Hawke's Bay aesthetic, it turns a complex wiring job into a clean, professional, and code-compliant installation.
Technical Specifications & Documentation
Click here to open the Hawke’s Bay BB 125 DatasheetKey Features & Safety
- Dual Protection: Includes a high-quality 125A/80VDC battery breaker and a 30A/600VDC shunt-tripable PV input breaker.
- Battery Over-Voltage Protection: Standard feature that utilizes remote-trip PV breakers controlled directly by the Hawke's Bay MPPT for ultimate system safety.
- Surge Protection Ready: Internal locations and terminals provided specifically for mounting MidNite Solar Surge Protection Devices (SPDs).
- Robust Construction: Made from durable powder-coated die-cast aluminum (not thin sheet metal) to withstand demanding off-grid environments.
- Simple Installation: Designed for an easy "snap-on" fit with the charge controller; optional backplate available for pre-wiring.
Electrical Specifications
| Battery Breaker | 125A / 80VDC (UL489A 10kA) |
| PV Input Breaker | 30A / 600VDC (Shunt Tripable) |
| Maximum Wire Size (Input) | 12-4 AWG |
| Maximum Wire Size (Output) | 14-00 AWG |
| Terminal Temp Rating | 75°C |
Physical Dimensions
| Actual Dimensions | 13.9" x 9.7" x 8" |
| Unit Weight | 9.5 lbs |
| Shipping Weight | 12 lbs |
| Agency Listings | ETL Listed to UL1741 (US & Canada) |
| Warranty | 5 Years (Made in USA) |
