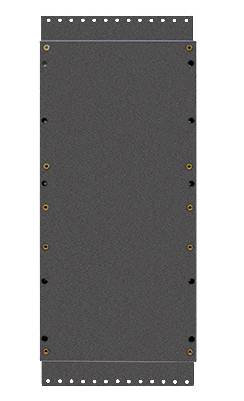

MidNite Solar Barcelona Mounting Backplate

The MidNite Solar Barcelona Backplate (MNBCLNA BACKPLATE) is the essential mounting foundation for high-capacity 48V solar systems. Specifically engineered to support the combined weight of the Barcelona MPPT Charge Controller and the Barcelona BB Breaker Box, this heavy-duty aluminum plate ensures both units are perfectly aligned for a seamless, "snap-together" installation.

Precision Engineered Foundation

• Perfect Alignment: Pre-drilled and tapped holes allow the Barcelona MPPT and Breaker Box to sit perfectly flush. This eliminates stress on internal wiring and conduit ports between the two units.
• Industrial-Strength Aluminum: Designed to support the significant physical footprint of the Barcelona system without flexing, providing a much more stable surface than standard plywood mounting.
• Bench-Top Assembly: Save time on the job site by mounting the controller and breaker box to the backplate on a workbench first, then hanging the entire completed assembly on the wall.
• Integrated Thermal Management: The aluminum construction acts as a heat spreader and provides the necessary standoff distance from the wall to maximize airflow through the controller's cooling fins.
• Professional Aesthetics: Provides a clean, factory-integrated look that is required for high-end residential and commercial off-grid power rooms.

System Compatibility
