xMidNite Solar Barcelona BB: High-Capacity Protection

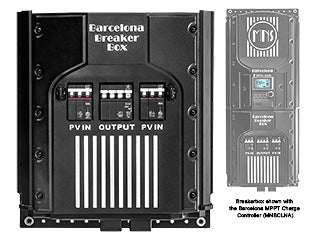

The MidNite Solar Barcelona BB (MNBCLNA BB) is a professional-grade breaker enclosure designed specifically for the Barcelona series of high-output MPPT charge controllers. Engineered for large-scale 48V systems, this die-cast aluminum box provides the essential overcurrent protection and disconnects required for high-amperage battery banks and dual-string high-voltage PV arrays.
Technical Specifications & Documentation
Click here to open the Barcelona BB DatasheetIntegrated Safety & Dual Input Support
- Massive Battery Protection: Includes a heavy-duty 200A/80VDC battery breaker (UL489A Listed, 10kA rating) to handle the Barcelona's high-current output.
- Dual PV Disconnects: Equipped with two 30A/600VDC shunt-tripable breakers, allowing for safe, independent control of dual solar strings.
- Remote Trip Safety: Compatible with the Barcelona MPPT's internal circuitry for automatic battery over-voltage protection and emergency shutdowns.
- Surge Ready: Features dedicated internal space for mounting MidNite Solar Surge Protection Devices (SPDs) to protect against lightning and grid transients.
- Industrial Enclosure: Constructed from die-cast aluminum with a high-quality powder-coat finish, designed for a seamless fit with the Barcelona MPPT chassis.
Electrical Specifications
| Battery Breaker Rating | 200A / 80VDC (10,000 AIC) |
| PV Input Breakers (x2) | 30A / 600VDC (Shunt Trip) |
| Max. Output Wire Size | 0 AWG |
| Terminal Temp Rating | 75°C |
Physical Dimensions
| Unit Dimensions | 15.9" x 13" x 8.7" |
| Unit Weight | 13 lbs |
| Compliance | ETL Listed to UL1741 |
| Warranty | 5 Years (Made in USA) |
