Description

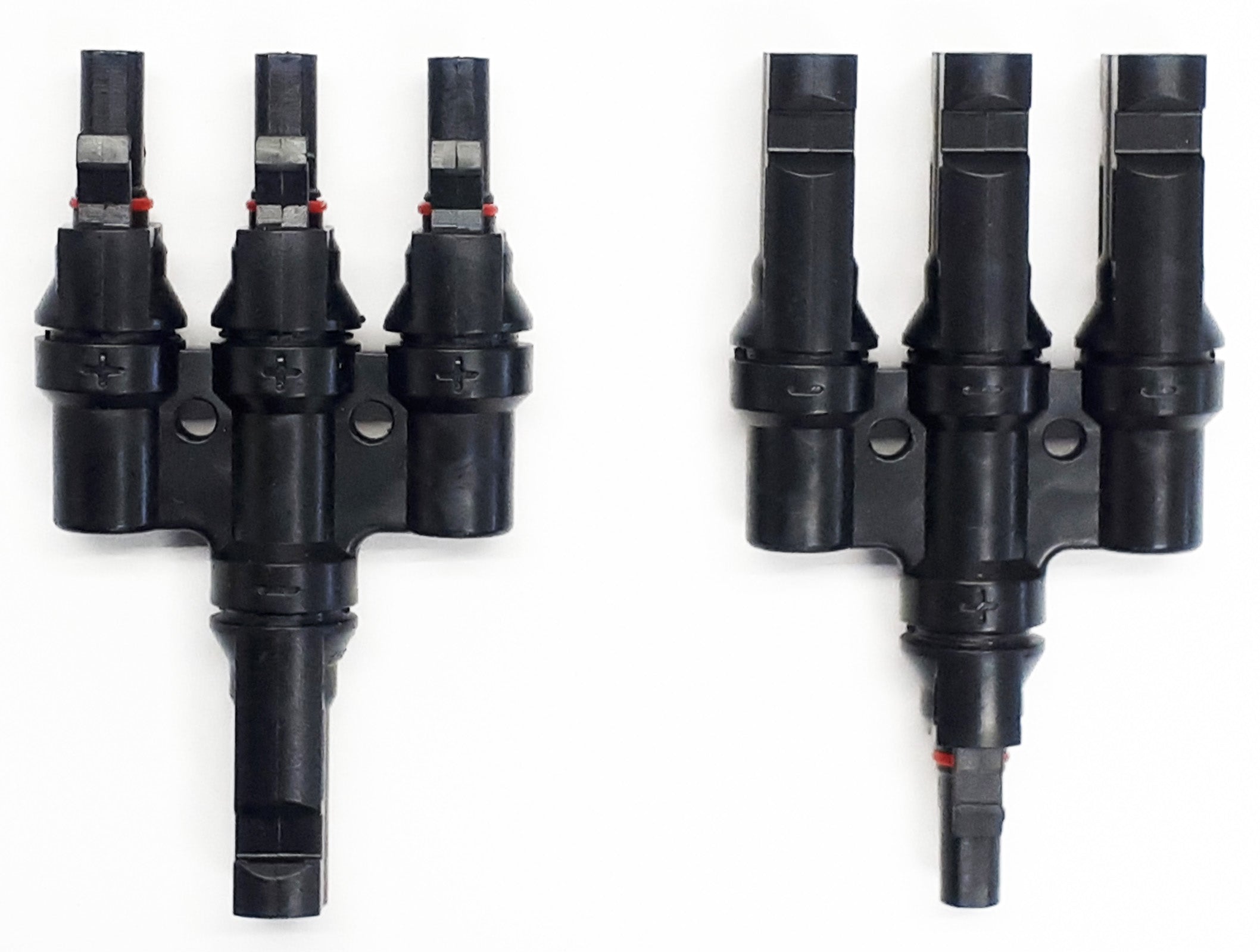

xMC4 3-to-1 Parallel Y-Branch Connectors | Triple String Solar Splitter

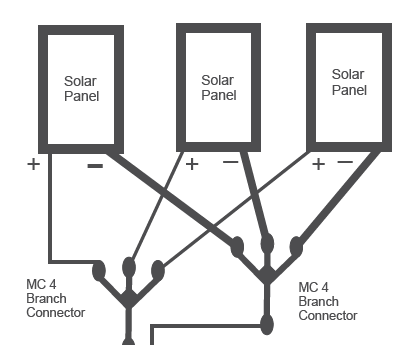

Streamline your solar array wiring with our heavy-duty MC4 3-to-1 Parallel Connectors. These triple-branch splitters allow you to connect three solar panel strings into a single output, increasing your total amperage while maintaining system voltage—ideal for large-scale 12V, 24V, and 48V solar banks.
Tailored to Your Project
Complex solar arrays require precise wiring solutions. We customize and provide specific connector counts and configurations based on your customer requirements. Whether you need a few pairs or enough for a large commercial project, we ensure you have the exact hardware needed.
Industrial Durability & Efficiency
- IP67 Waterproofing: High-grade sealing rings ensure your connections remain corrosion-free and functional in rain, snow, and high humidity.
- Enhanced Current Capacity: Rated for up to 30A designed to handle the combined load of three high-wattage panels.
- UV-Resistant PPO Housing: The anti-aging and UV-resistant shell is built for extreme outdoor environments, withstanding heat and direct sunlight without becoming brittle.
- Secure Self-Locking: Integrated snap-in mechanism provides a vibration-proof connection that meets international solar safety standards.
Technical Specifications
| Connector Type | MC4 3-to-1 Y-Branch |
| Configuration | 1 Pair (Male to 3 Female / Female to 3 Male) |
| Rated Voltage | 600V DC |
| Contact Material | Tinned Copper |
| Temperature Range | -40°C to +90°C |
Installer's Tip: When paralleling three strings, use 10 AWGÂ extension cables for the main run to your controller to accommodate the higher combined amperage and minimize voltage drop.
