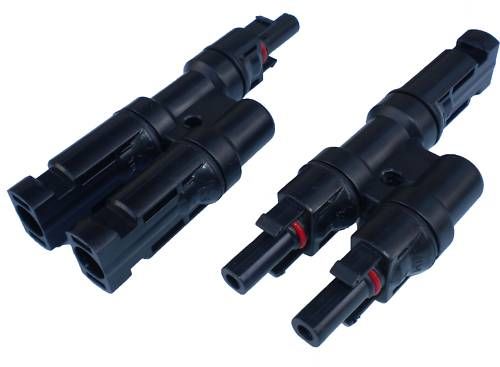

xMC4 2-to-1 Parallel Y-Branch Connectors | Male & Female Pair
Easily expand your solar array with our high-performance MC4 2-to-1 Parallel Connectors. These Y-branch splitters allow you to connect two solar panels in parallel, maintaining your voltage while increasing your amperage—perfect for 12V and 24V battery charging systems.
Tailored Solar Solutions
Every solar project has different wiring needs. We customize and provide specific connector configurations based on your customer requirements. Whether you need a single pair for a DIY project or a full set for a professional installation, we have you covered.
Maximum Reliability in Harsh Conditions
- IP67 Waterproof Rating: Features a high-quality sealing ring that ensures a complete water and dust-proof connection for decades of outdoor exposure.
- Heavy-Duty PPO Material: The connector shell is made from UV-resistant and anti-aging PPO plastic, rated to withstand extreme temperatures from -40°F to 195°F.
- Stable Locking System: Integrated "auto-lock" mechanism provides a rock-solid connection that is easy to assemble but won't pull apart under wind or snow loads.
- Tinned Copper Contacts: Low contact resistance ensures maximum efficiency and prevents power loss in your parallel strings.
Technical Specifications
| Connector Type | MC4 Y-Branch (2 to 1) |
| Rated Current | 30 Amps |
| Rated Voltage | 1000V DC |
| Safety Class | Class II |
| Contact Resistance | ≤ 0.5mΩ |
System Design Tip: When using Y-branch connectors to parallel strings, ensure your total amperage does not exceed the 30A rating of the connector or the input limit of your charge controller.
