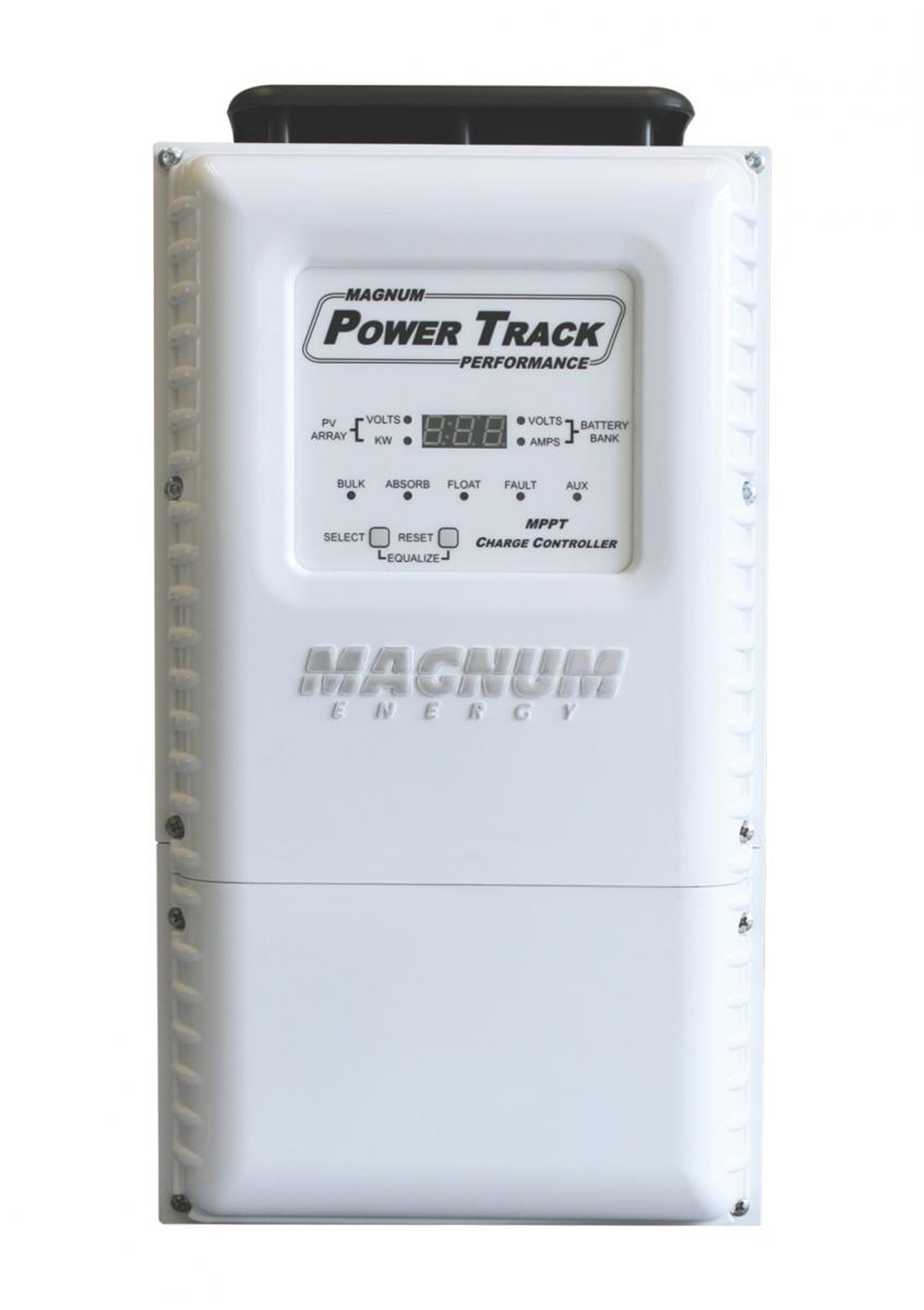

xMagnum Energy PT-100: High-Efficiency 100-Amp MPPT Charge Controller
The Magnum Energy PT-100 is a premium Maximum Power Point Tracking (MPPT) charge controller engineered for high-performance solar installations. Delivering a continuous 100 Amps of charging current, the PT-100 is compatible with 12V, 24V, and 48V battery systems. With an industry-leading 99% peak efficiency and a high input voltage limit of 187VDC, this controller maximizes energy harvest even in challenging conditions.
View Technical Documentation
Click here to open the PT-100 Official Spec Sheet in a new windowâš¡ Massive Power Handling
Optimize your solar array with ease. The PT-100 supports up to 6,600 Watts on a 48V system, allowing for larger, more efficient PV strings with fewer parallel connections.
Advanced Features & Reliability
- High Efficiency: Achieve up to 99.1% efficiency, ensuring minimal power loss during the conversion process.
- Integrated Arc Fault Protection: Built-in AFCI circuitry enhances system safety by detecting and stopping hazardous arc faults.
- Onboard Data Logging: Stores up to 255 days of harvest and battery data for comprehensive system monitoring.
- Seamless Integration: Pairs perfectly with Magnum Energy Inverters and the ME-ARC or ME-RC remote for a unified system interface.
- Universal Battery Support: Pre-programmed profiles for Flooded, AGM, and Gel batteries, with custom settings for Lithium (LiFePO4).
Technical Specifications
| Model | PT-100 |
| Maximum Output Current | 100 Amps (Continuous) |
| Nominal Battery Voltages | 12, 24, 48 VDC |
| Max. PV Input Voltage (Voc) | 187 VDC |
| Peak Efficiency | 99.1% |
| Warranty | 5 Years Standard |
Maximum Recommended PV Power
| 12V Battery System | 1,600 Watts |
| 24V Battery System | 3,200 Watts |
| 48V Battery System | 6,600 Watts |
Safety and Certifications
The Magnum PT-100 is ETL listed to UL 1741 (US and Canada). It includes comprehensive electronic protections against over-temperature, output short circuits, and battery reverse-polarity.
