Description

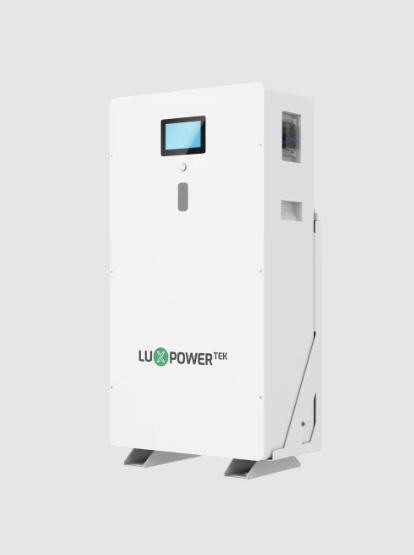

xLuxPowertek PSHIELD MAX 16kWh LiFePO4 Lithium Battery (51.2V 314Ah)
The LuxPowertek PSHIELD MAX (LXP-PSHIELD-16KWH) is a high-capacity 16.076 kWh lithium iron phosphate (LiFePO4) energy storage system designed for whole-home backup and off-grid power installations. Featuring high-grade 314Ah cells, an IP65 outdoor rating, and continuous 200A discharge capability, the PSHIELD MAX provides long-lasting, expandable power backed by an impressive 8,000-cycle life and 10-year warranty.
🚚
Freight Shipping Information
Due to the weight (275.6 lbs) and hazardous material status of high-capacity lithium batteries, freight charges vary depending on delivery location, residential liftgate needs, or commercial dock access.
Contact us for an exact freight shipping quote before placing your order or to inquire about volume discounts.
Key Features & Highlights
- 16.076 kWh Storage Capacity: High-density 314Ah battery unit delivers maximum stored power for backup protection, solar self-consumption, and load shifting.
- Ultra-Long Cycle Life: Rated for up to 8,000 cycles at 90% Depth of Discharge (DOD) for years of continuous daily operation.
- IP65 Weatherproof Enclosure: Engineered for indoor or outdoor mounting, operating safely across temperature ranges from -20°C to +55°C.
- Massive Parallel Scalability: Supports paralleling up to 32 units without additional external hardware, allowing storage systems up to 514 kWh.
- Intelligent BMS Protection: Built-in active balancing, short-circuit protection, overcharge/discharge protection, and auto-addressing protocol.
- Broad Inverter Compatibility: Native communication via CAN Bus / RS485 with LuxPower, Victron, Deye, Sol-Ark, Growatt, SMA, and other top hybrid inverters.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | LuxPowertek |
| Model Name / MPN | PSHIELD MAX (LXP-PSHIELD-16KWH) |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4 / LFP) |
| Rated Energy Capacity | 16.076 kWh |
| Rated Capacity & Voltage | 314 Ah / 51.2 V DC (Charge Voltage: 56.5V) |
| Max Continuous Charge / Discharge Current | 200 A / 200 A (0.5C Rate) |
| Depth of Discharge (DOD) | 90% |
| Parallel Connection | Up to 32 units in parallel |
| IP Enclosure Rating | IP65 (Outdoor / Indoor rated) |
| Communication Ports | CAN / RS485 |
| Dimensions (W × H × D) | 475 × 900 × 236 mm (18.7 × 35.4 × 9.3 in) |
| Weight | 125 kg (275.6 lbs) |
| Warranty & Cycle Life | 10-Year Warranty / 8,000 Cycles |
| Certifications | UL1973, CE, UN38.3, IEC62619 |
Ideal Applications
Whole-Home Emergency Backup
Off-Grid Solar Storage Systems
Time-of-Use Peak Shaving
Commercial Battery Arrays
Download Technical Datasheet
Review full electrical performance curves, mechanical drawings, thermal specifications, and inverter integration guidelines in the official LuxPowertek datasheet.
📄 Download LuxPowertek PSHIELD MAX Datasheet (PDF)Shipping
