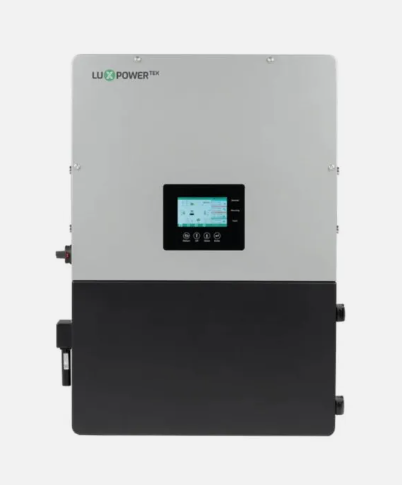

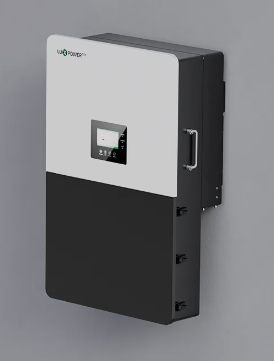

LuxPower GEN-LB-US 16K Hybrid Inverter - 16kW 120/240V Whole-Home Power System

The LuxPower GEN-LB-US 16K is a next-generation hybrid inverter designed to be the central hub of your home's energy ecosystem. Delivering a massive 16,000W of continuous split-phase power, this unit provides a seamless 120V/240V output, making it capable of running heavy loads like central AC, well pumps, and electric dryers without external transformers.

With an industry-leading 200A Grid Passthrough, the GEN-LB-US 16K allows for true "Whole-Home Backup" by sitting between your utility meter and your main panel. No more picking and choosing critical loads—this inverter is built to power your entire life. Integrated with 3 MPPT controllers supporting up to 21kW of solar input, it ensures maximum energy harvest even on complex roof layouts.

Advanced Hybrid Performance:

• 200A Whole-Home Passthrough: Integrated 200A bypass relay allows the inverter to power the entire main panel without a secondary sub-panel.
• Massive PV Input: Features 3 MPPTs with 5 string inputs, supporting up to 21,000W of Solar PV.
• High-Speed UPS Mode: Seamless switching from grid to battery in under 20ms, ensuring computers and sensitive electronics never skip a beat.
• Parallel Scalability: Connect up to 10 units in parallel for a massive 160kW system capacity.
• AI-Powered Monitoring: Utilize the LuxCloud platform for remote programming, AI energy optimization, and real-time data tracking.
• Weather Resistance: IP66 / NEMA 4X rated enclosure for reliable outdoor or indoor installation.
• AC Coupling Ready: Easily retrofit existing grid-tie solar systems to add battery backup capability.

Technical Specifications:

Technical Tip: The GEN-LB-US 16K includes a dedicated generator port with auto-start support. This allows the system to manage solar, grid, battery, and generator power simultaneously for ultimate energy independence.
