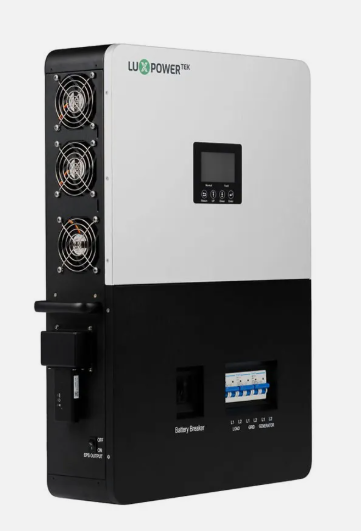

xLuxPower 15kW Off-Grid Split-Phase Solar Inverter (LXP-SNA-US-15K / 15000XP)
Unlock full whole-home energy independence with the LuxPower 15kW Off-Grid Split-Phase Solar Inverter (SNA-US-15K), also known as the 15000XP. Engineered specifically for North American 120/240V split-phase configurations, this heavy-duty all-in-one powerhouse delivers 15,000 Watts of continuous pure sine wave output, up to 24,000 Watts of PV solar input, a 250A battery charge capacity, and integrated AC/generator passthrough.
🚚
Freight Shipping Information
Due to unit size and heavy freight handling requirements, shipping rates are calculated per order based on destination location.
Contact us for a custom freight quote prior to ordering or to coordinate local pickup.
Key Features & Advantages
- 15,000W Continuous Output: Native 120/240V split-phase output with 30,000W surge capability (5 sec) to easily start well pumps, HVAC units, dryers, and heavy shop equipment.
- Massive 24kW PV Input: Dual independent MPPT channels with 4 total solar string inputs (accepting up to 480V VOC and 44A short-circuit current per MPPT) accommodate massive solar arrays.
- 250A High-Speed Battery Charging: Charges 48V/51.2V LiFePO4 or lead-acid battery banks rapidly from solar, grid, or generator inputs.
- Dedicated Generator Port & Smart Load Control: Integrated generator input with automatic dry-contact start/stop, plus smart load output to automatically divert excess solar to secondary loads like water heaters or heaters.
- 100A AC Passthrough & Dual AC Outputs: High-capacity transfer relay switches in under 10 ms for uninterruptible backup power during utility power outages.
- Scalable Stacking: Supports parallel expansion of up to 16 inverters for massive residential, agricultural, or commercial off-grid microgrids.
- Integrated Safety Breakers: Built-in load, battery, and generator circuit breakers with integrated AFCI arc fault protection for simplified wall installation.
Technical Specifications
| Specification Parameter | Details |
|---|---|
| Brand / Manufacturer | LuxPowerTek (LuxPower) |
| Model | SNA_US_15K (15000XP) |
| Rated Continuous AC Output | 15,000 Watts (15 kW) |
| Peak Surge Rating | 30,000 Watts (5 Seconds) |
| AC Output Voltage / Frequency | 120/240V Split-Phase (120/208V compatible) | 50/60 Hz |
| Max Solar PV Input Power | 24,000 Watts (24 kW) |
| MPPT Trackers / String Inputs | 2 Independent MPPTs / 4 String Inputs total |
| Max PV Voltage (VOC) / MPPT Range | 480 VDC Max | 120V – 440 VDC MPPT Operating Range |
| Nominal Battery Voltage | 48 V DC / 51.2 V DC (40V – 60V Range) |
| Max Charge / Discharge Current | 250 Amps DC |
| Transfer Time / Passthrough | < 10 ms | 100A AC Passthrough Relay |
| Parallel Capability | Up to 16 Units in Parallel |
| Communication / Monitoring | Wi-Fi Dongle Included (CAN, RS485, Optional 4G) |
| Safety & Compliance | UL 1741, CSA C22.2 NO.107.1, FCC Part 15, AFCI Protected |
Ideal Applications
Whole-Home Off-Grid Residences Agricultural & Farm Operations Commercial Workshops & Outbuildings High-Demand Whole-House Battery Backup
