Description

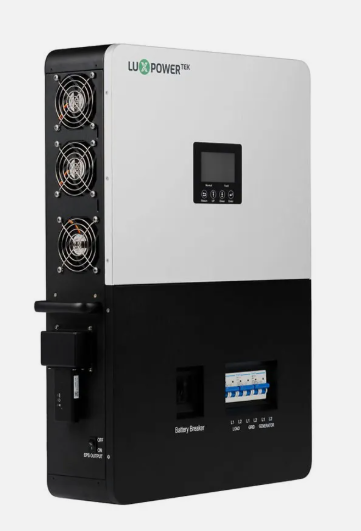

xUnlock rugged, heavy-duty energy autonomy with the LuxPower 12kW Off-Grid Split-Phase Solar Inverter (LXP-SNA-US-12K), affectionately known as the 12000XP. Engineered specifically for North American 120/240V split-phase configurations, this specialized powerhouse effortlessly blends massive solar arrays, 48V battery banks, and generator resources. Whether building an isolated off-grid homestead, establishing a remote hunting cabin, or securing a zero-export backup solution, the 12000XP delivers commercial-grade reliability without complex utility restrictions. ☀️
Key Features & Benefits
- Colossal 24kW Solar Input: Outfitted with dual independent MPPT trackers supporting a staggering 24,000 Watts of raw solar inputs (12kW + 12kW), allowing you to vastly oversize your arrays for optimized winter production. 🔌
- Unmatched 250A Battery Charging: Delivers a massive 250A continuous charge and discharge threshold over a standard 48V interface, facilitating rapid storage deployment for large battery banks during high solar windows. 🔋
- All-In-One Integrated Architecture: Comes standard with pre-wired, built-in circuit breakers for the battery, PV inputs, and AC loads. This smart layout eliminates expensive external balance-of-system disconnect panels. 🛠️
- Advanced Generator Coordination: Includes a dedicated, isolated generator interface capable of taking up to 19.2kW of input. Software logic features automated generator start/stop commands based on real-time battery status. ⚙️
- Ultra-Fast Backup Transitions: Features a built-in Uninterruptible Power Supply (UPS) module that transfers critical loads to backup battery paths in under 10 milliseconds, preventing computers or appliances from resetting. 🛡️
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer / Series | LuxPowerTek / ECO HYBRID (12000XP) |
| Model Number | LXP-SNA-US-12K (SNA-US-12K) |
| Continuous Output Power | 12,000 W (12 kW) @ 120V / 240V Split-Phase AC |
| Max. Solar PV Input Capacity | 24,000 W (24 kW Total — 12kW per MPPT) |
| Number of MPP Trackers | 2 MPPT Trackers (4 Strings Input Total) |
| MPPT Operating Voltage Window | 120 V – 385 V DC (Full System Cap up to 480 V) |
| Max. PV Input Current | 35 A per MPPT (44 A Short-Circuit Capacity) |
| Battery Voltage Requirements | 48V Nominal Lithium-Ion / Lead-Acid (46.4V – 60V Window) |
| Max. Continuous Passthrough | 100 A |
| Inverter Efficiency Profiles | 99.0% MPPT Efficiency / 93.5% Overall Inverter Efficiency |
| Parallel Expandability | Supports up to 3 Units Interlinked in Single Phase |
| Dimensions & Unit Weight | 20.87" x 32.68" x 5.9" (530 x 830 x 150 mm) | 104.72 lbs (47.5 kg) |
| Safety Code Certifications | CSA Certified, UL Listed, Integrated AFCI Protection, NEMA 1 (IP20 Indoor Rating) |
Product Documentation
Review full operational configurations, monitoring setup guidelines, and detailed internal schematic diagrams directly from the manufacturer datasheet:
