xPowerful Energy Independence, Crafted in Canada

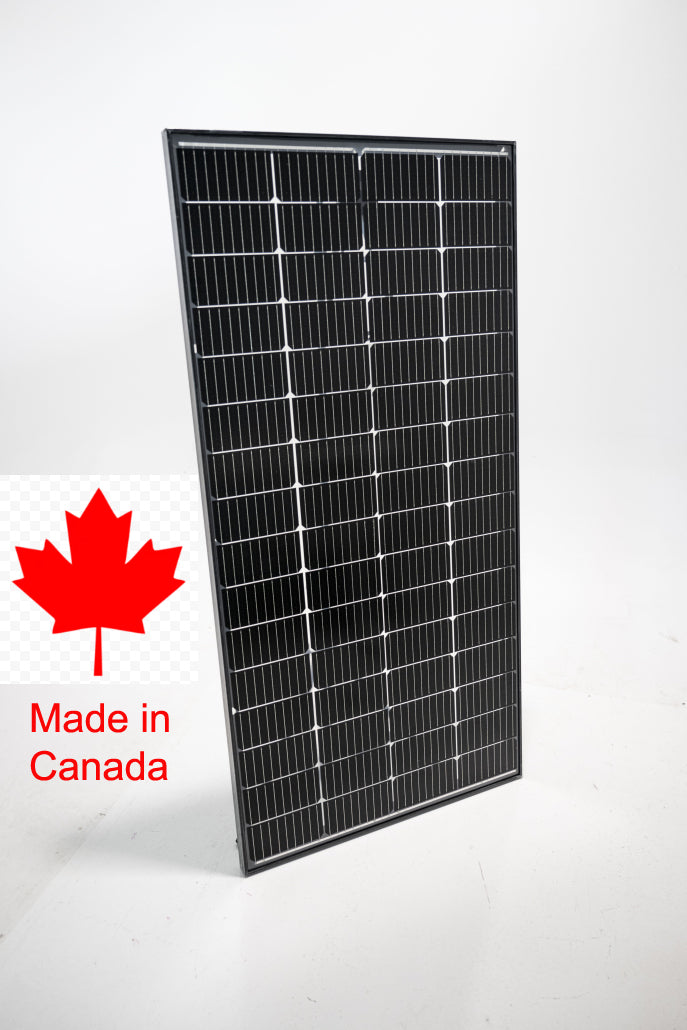

The Lumera 220W BiFacial Solar Panel is an elegant and robust solution for off-grid power. Engineered in British Columbia, this M6 12V panel utilizes advanced PERC cell design to deliver maximum energy within a compact footprint.
Key Features:
- BiFacial Technology: Capture up to 30% additional energy gain from internal reflection and backside power generation. 🔄
- Canadian Made: Produced in state-of-the-art robotics facilities in BC, ensuring top-tier workmanship and local support. 🍁
- High Efficiency: Optimized for low-light conditions and PNW climates.
- Durability: Every panel undergoes a full visual and electrical test before shipping. 🛡️
Electrical Characteristics (STC)
Review the official electrical performance metrics to ensure proper sizing and compatibility with your MPPT solar charge controller:
| Specification Parameter | Value / Rating |
|---|---|
| Maximum Power (Pmax) | 220W |
| Voltage at Max Power (Vmp / Vm) | 18.25V |
| Current at Max Power (Imp / Im) | 12.04A |
| Open-Circuit Voltage (Voc) | 22.0V |
| Short-Circuit Current (Isc) | 13.0A |
| Module Efficiency | 21% |
| Maximum System Voltage | 600VDC |
| Maximum Series Fuse Rating | 15A |
Technical Specifications:
| Power Output | 220W |
| Cell Type | M6 BiFacial PERC |
| Dimensions | 141 x 70 x 3 cm (55.5" x 27.6" x 1.38") |
| Weight | 11 kg (24.1 LBS) |
Warranty:
Includes a 25-year warranty on PV modules, providing long-term peace of mind for your solar investment.
Shipping
x
This product is oversized and not eligible for standard courier shipping. To ensure you receive the most competitive shipping rate, please provide your postal code along with the list of products and quantities you wish to order. We will then prepare a customized shipping quote for you.
