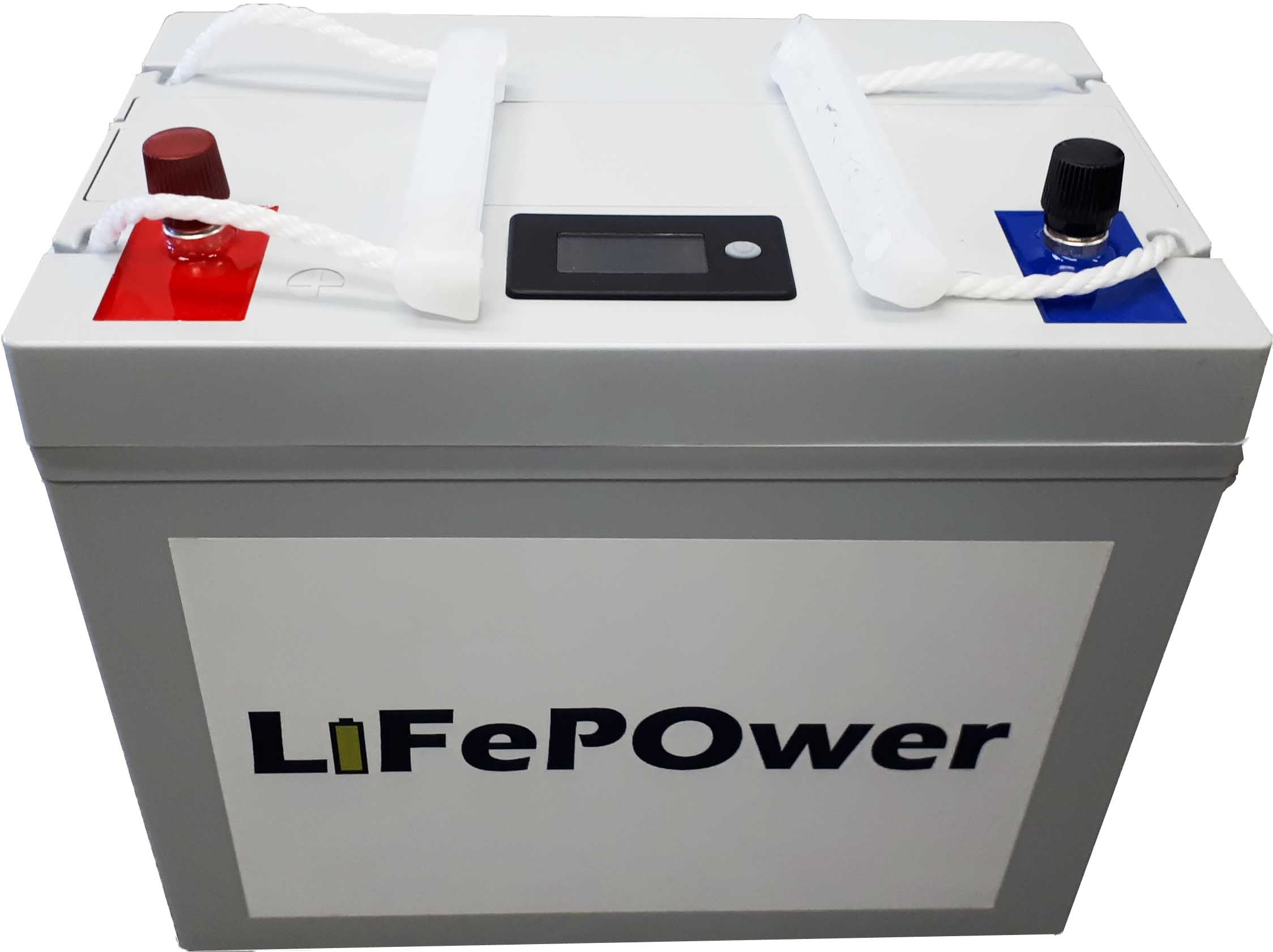

LiFePO4 Battery 100Ah 12.8V
Deep Cycle Lithium Iron Phosphate battery
Advantages against Lead Acid battery:
1. Weight: Less than half the weight of lead acid battery.
2. Discharge: Lithium-ion batteries are discharged 100% versus less than 80% for lead acid. Most lead acid batteries do not recommend more than 50% depth of discharge.
3. Cycle Life: Rechargeable lithium-ion batteries cycle 2000-5000 times or more compared to just 400-500 cycles in lead acid batteries.
4. Voltage: Lithium-ion batteries maintain their voltage throughout the entire discharge cycle. This allows for greater and longer-lasting efficiency of electrical components. Lead acid voltage drops consistently throughout the discharge cycle.
5. Cost: Despite the higher upfront cost of lithium-ion batteries, the true cost of ownership is far less than lead acid when considering life span and performance.
6. Environmental Impact: There is far less disposal and environmental hazard posed by lithium batteries compared to the short-lived and toxic lead acid batteries.
7. LiFePO4 battery is the most stable and safest among other lithium ion batteries.
Features:
- 2000-5000 life cycles
- Built-in display for battery capacity, voltage and temperature
- Increased safety performance
- High temperature performance
- Green energy without contaminants
- Pressure resistant cells
- Constant output voltage
- <3% yearly self discharge rate
- Vibration and shock resistant
- No memory effect
- Built-in battery management system (BMS)
- 2 years warranty
Safety Protection:
- Over charging
- Over discharging
- Short circuit
- Thermal Shock
- No fire and explosion
Specifications:
| Nominal voltage | 12.8V |
| Nominal capacity | 100Ah |
| Power capacity | 1.28 kWh |
| Max. charging voltage | 14.6V |
| Discharge cut-off | 11V |
| Charge current | 60A |
| Continuous discharge current | 100A |
| Peak discharge current | 120A |
| Recommended charging voltage | 14.6V |
| Recommended float voltage | 13.6V |
| Charge temperature range | 0 C to 45 C |
| Discharge temperature range | -20 C to 60 C |
| Dimensions | 260x165x235mm (10.25"x6.5"x9.25") |
| Weight | 10.2 kg (22.5 lbs) |
| Cycle Life | 2000 - 5000 cycles |
Up to 2 batteries can connect in series for 24V system. Can connect multiple batteries in parallel.
